Hioki PW3198 User Manual

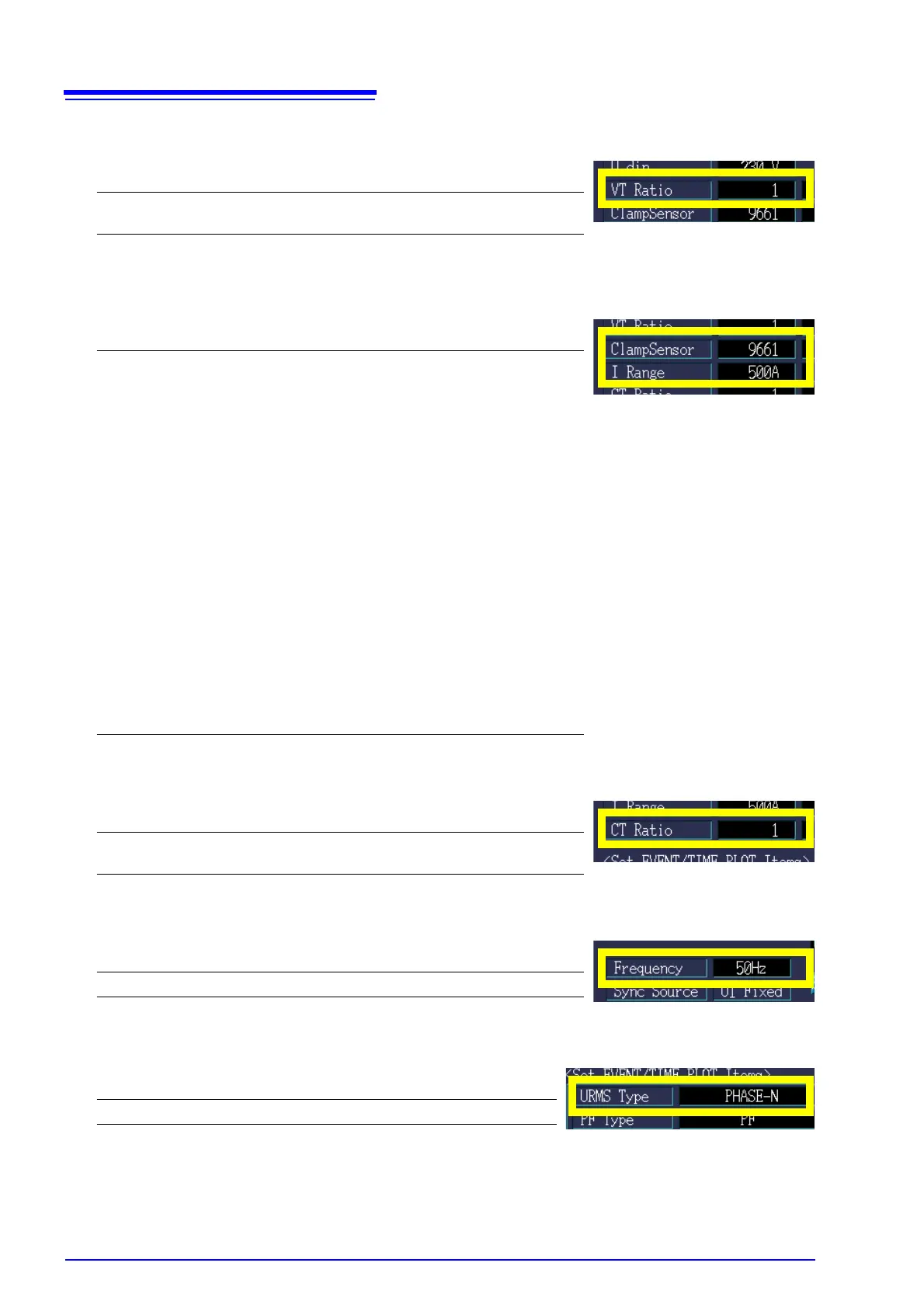

5.1 Changing Measurement Conditions
56
VT Ratio
Sets the external VT (PT) being used.
ClampSensor, I Range
Selects the type of clamp sensor being used and current range. You can also set an output rate and use
a sensor that has not been registered.
CT Ratio
Set if using an external CT.
Frequency
Selects the nominal frequency (fnom) for the measurement line.
URMS Type
Selects the voltage calculation method to use during 3-phase measurement.
Setting Contents:(  : Default setting)
1/60/100/200/300/600/700/1000/2000/2500/5000/
VARIABLE (0.01 to 9999.99)
Setting Contents:(  : Default setting)
0.1mV/A(5 kA) : 5000 A/500 A
1mV/A(500 A) : 500 A/50 A
10mV/A(50 A) : 50 A/5 A
100mV/A(5 A) : 5 A/500 mA
9657-10 : 5 A/500 mA
9660 : 100 A/50 A
9661
 : 500 A/50 A
9667(500 A) : 500 A/50 A
9667(5 kA) : 5000 A/500 A
CT9667(500 A) : 500 A/50 A
CT9667(5 kA) : 5000 A/500 A
9669 : 1000 A/100 A
9675 : 5 A/500 mA
9694 : 50 A/5 A
9695-02 : 50 A/5 A
9695-03 : 100 A/50 A
CT9691(10 A) : 10 A/5 A
CT9691(100 A) : 100 A/50 A
CT9692(20 A) : 50 A/5 A
CT9692(200 A) : 500 A/50 A
CT9693(200 A) : 500 A/50 A
CT9693(2 kA) : 5000 A/500 A
Setting Contents:(  : Default setting)
1/40/60/80/120/160/200/240/300/400/600/800/1200/
VARIABLE (0.01 to 9999.99)
Setting Contents:(  : Default setting)
50 Hz/60 Hz/400 Hz
Setting Contents:(  : Default setting)
PHASE-N/LINE-LINE
