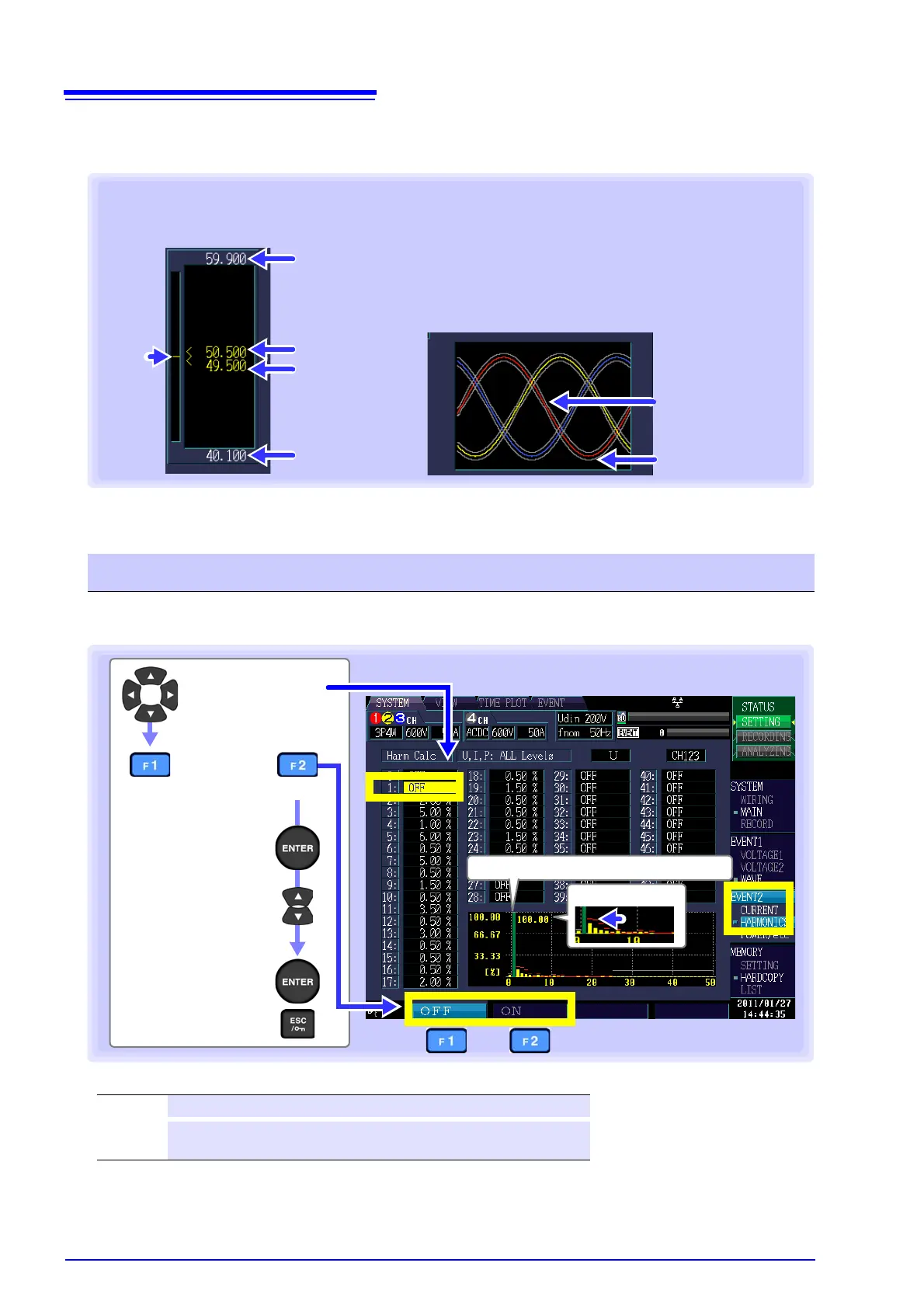

5.5 Changing Event Settings
70
Reference graph for use when setting thresholds
You can adjust thresholds while viewing the current measured value and measurement waveform state.
Set thresholds are stored internally regardless of the event’s ON/OFF setting.
Even if a threshold is set, no events will be generated unless the event is set to ON.
Events can be configured by pressing the DF3 key to display the
[HARMONICS] screen. Settings can
be turned ON or OFF for each harmonic order.
Set thresholds are stored internally regardless of the event’s ON/OFF setting.
Even if a threshold is set, no events will be generated unless the event is set to ON.
When the measurement frequency (fnom) is 400 Hz, measurement is limited to the 10th order.
Threshold upper
limit
For events other than voltage waveform
comparison
(Example: Frequency)
Red:
Current measurement
waveform
Top of waveform enve-
lope level
Bottom of waveform
envelope level
Current
measured
value
Current threshold
Threshold lower
limit
Currently threshold
Voltage waveform comparison
The
[U_Wave] screen can be displayed with the DF2 key.
A voltage waveform comparison event is generated when
the measurement waveform exceeds the waveform enve-
lope level. The waveform envelope level is set as a per-
centage of the nominal input voltage. When using a 3-
phase connection, the waveform envelope level applies to
the voltages of all 3 phases.
Turning events ON and OFF and adjusting thresholds (harmonics)
Setting Contents:( : Default setting)
OFF
Disables the event function for the selected setting.
ON
Sets the threshold at which to enable the event function for the
selected setting.
Select the
harmonic order
to set
[OFF]
Or
Accept the setting
Cancel
Set the threshold
Bar for harmonic order being set (green)
Threshold (red)
Select the setting
to change it
[ON]
To Next Page
