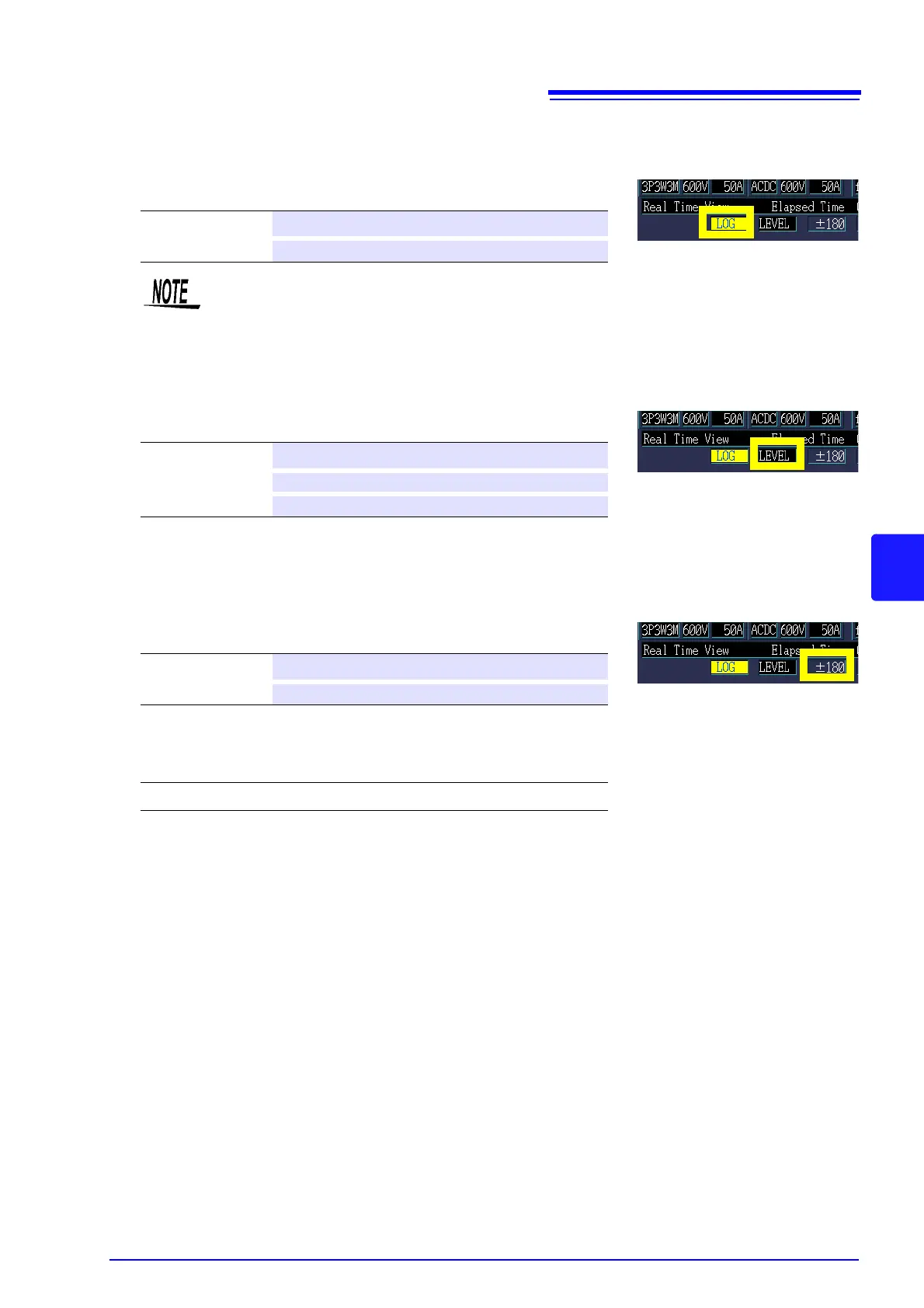

6.3 Displaying Phase Relationships ([VECTOR] Screen)
81
Chapter 6 Monitoring Instantaneous Values (VIEW
6
Axis display
You can select whether to use a linear display (LINEAR) or logarithmic display (LOG) for the vector axis.
If you select the logarithmic display method, the vector is easy to see even at low levels.
RMS/phase angle/content percentage display
Selects which value to display (RMS value display, phase angle display, or content percentage display). If
[PHASE] is selected, you can also set the phase angle value display method.
Phase angle value display method
You can select the type of phase angle display. (This setting can be configured only when [Phase] is
selected.)
If
[lag360] is selected, you can also set the phase angle reference source.
Phase angle reference source
You can select the reference source (0°) to display the phase angle value.
Settings:( : Default)
LINER
Linear display
LOG
Log Logarithmic display
When the 400 Hz measurement frequency is selected, harmonic analysis is performed up
to the 10th order, and inter-harmonic analysis is not available.
Settings:( : Default)
LEVEL
RMS
Phase
Phase angle
Content
Content percentage
Settings:( : Default)
±180
lead 0 to 180°, lag 0 to -180°
lag360
lag 0 to 360°
U1/ I1/ U2/ I2/ U3/ I3
