6.3 Displaying Phase Relationships ([VECTOR] Screen)
82
You can select what value to display.
When you change the number of orders, the values change along with the vector.
In this case, the voltage and current unbalance factors remain the same as the values calculated using
the fundamental wave (1st order).

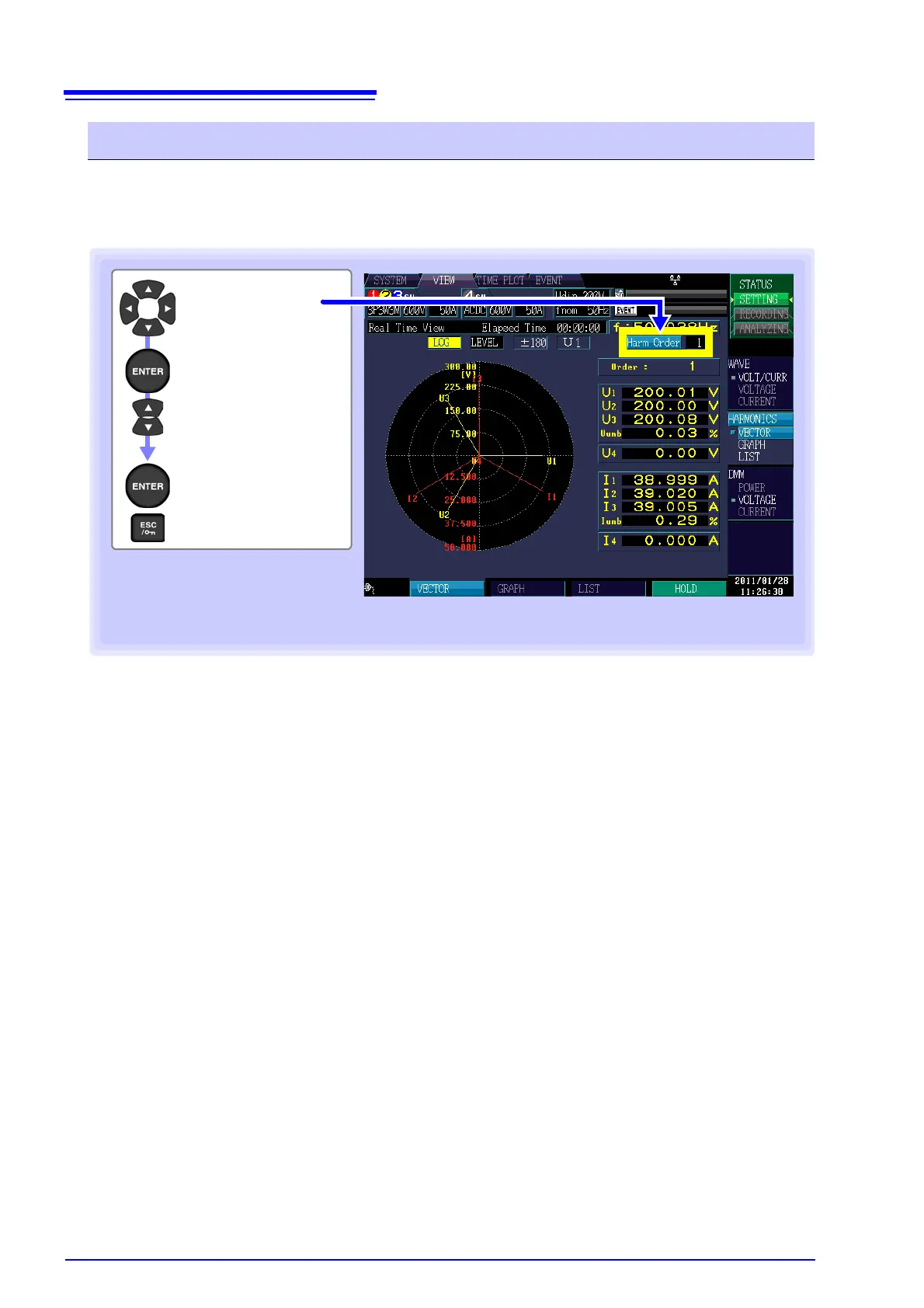

Changing the harmonic number of orders
Display the
pull-down menu
Change the
number of order
(Up to the 50th order can
be set)
Accept setting
Cancel
[Harm Order]
The harmonic number of orders
can also be changed without using
the pull-down menu by pressing the
up and down cursor keys.
