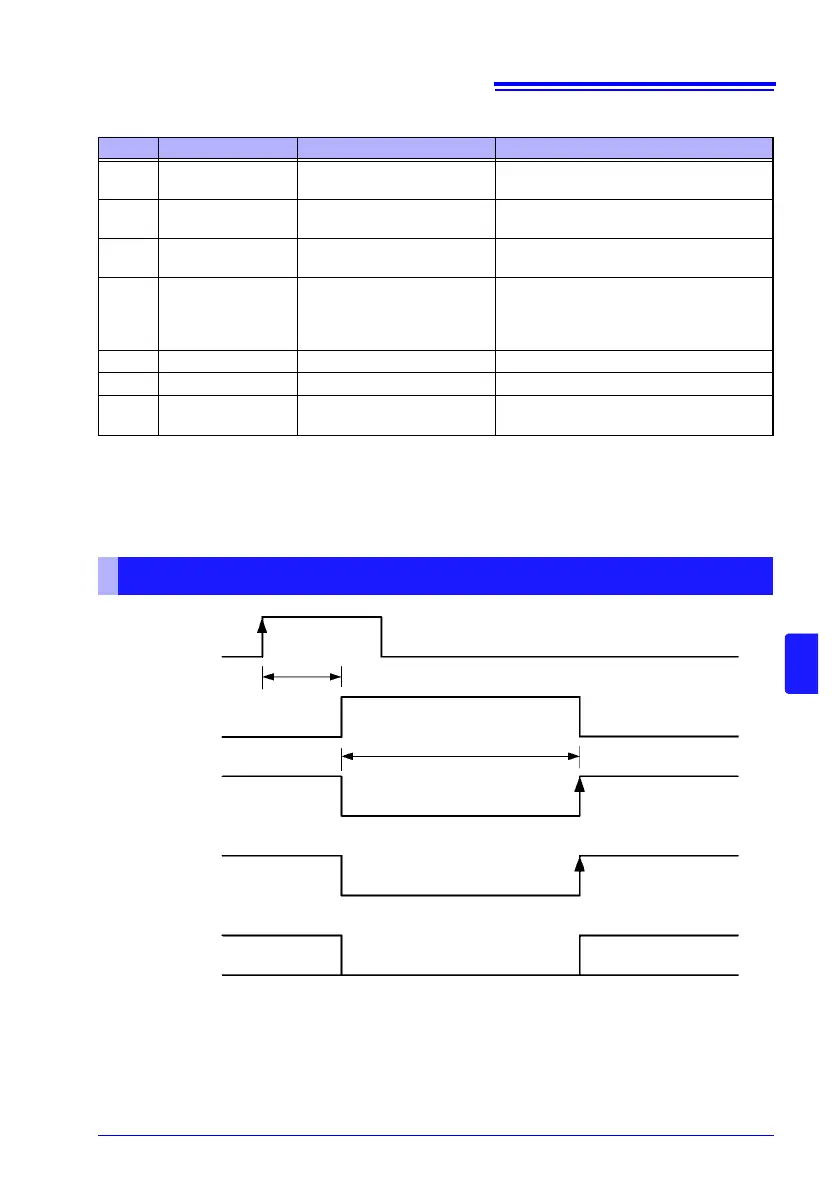

8.2 Timing Chart
99
8
* When the number of averages is set to n while using the external trigger setting (or when
using a :READ? query), t3 must be approximately a multiple of n. (For more information
about commands, see the Communications Command Instruction Manual on the included
application disc.) When using the internal trigger setting, the measurement time does not
depend on the number of averages.
For pulse EOM output, the EOM signal turns OFF when the pulse width time elapses.
When using the internal trigger [INT] setting, the EOM signal consists of pulse output with
a width of 5 ms. The ERR signals do not turn OFF at the start of measurement. They are
updated at the completion of the next measurement.
Timing Chart Interval Descriptions
Interval Description Duration Remarks
t0 Trigger Pulse
Asserted (ON)
0.1 ms or more ON/ OFF-edge selectable
t1 Trigger Pulse
De-asserted (OFF)
1 ms or more
t2 Measurement
start time
1 ms, max
t3* Acquisition process-
ing time
FAST (50 Hz): 20 ms
FAST (60 Hz): 17 ms
MEDIUM : 100 ms
SLOW : 400 ms
Reference value
t4 Calculation time 1 ms, max
t5 EOM pulse width 1 to 100 ms Setting-dependent
t6 EOM pulse width
with internal trigger
5 ms Cannot be changed.
Zero-adjustment timing
ON
0ADJ
Zero-adjustment in progress
OFF
Zero-adjustment
processing
INDEX
EOM
ERR
OFF
OFF
OFF
ON
ON
10 ms
or more
Approx. 600 ms
(manual range operation)
