Appendix 7 Unstable Measured Values

A20

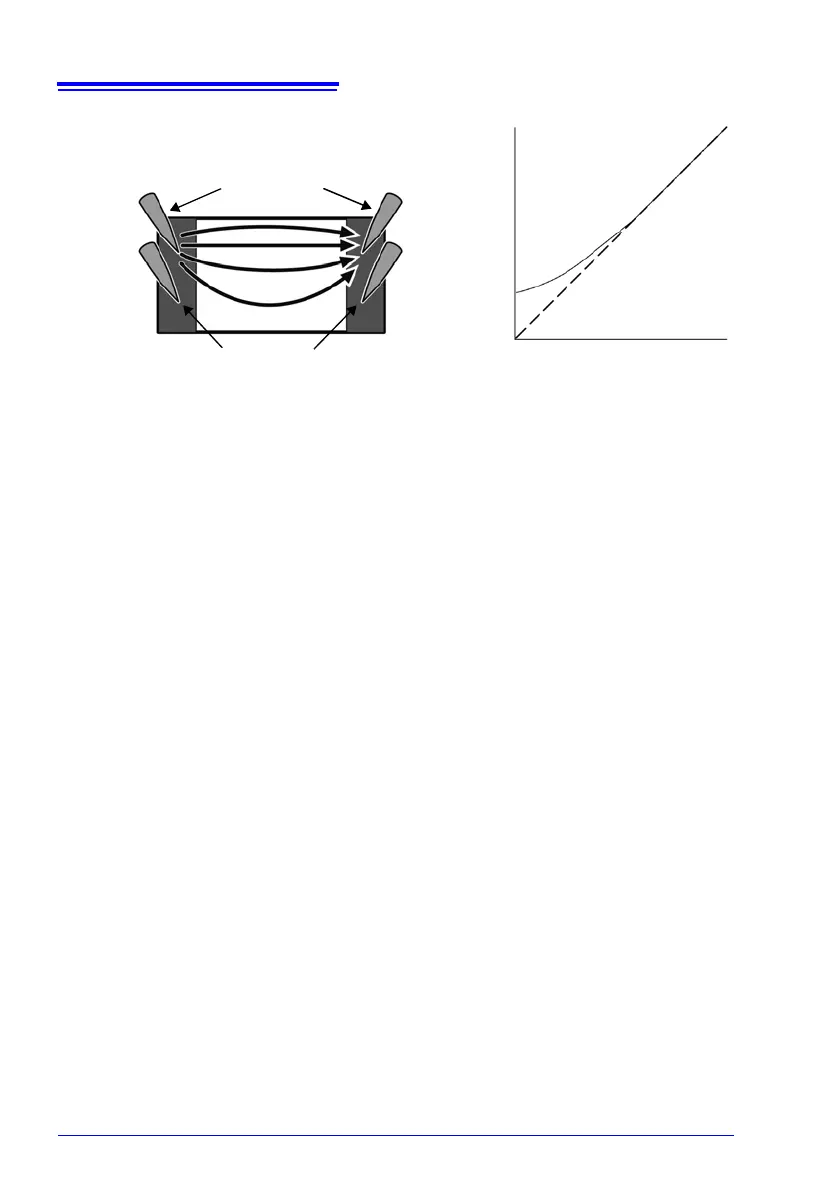

Figure. 17 Flow of Current in the Test State

SOURCE A

SENSE A

SOURCE B

SENSE B

Current

Current probes

Figure. 18 Difference between

Mounted State and Test State

Resistance value in mounted state

Resistance value in test state
