8.7 Example Connections and Settings
167
8

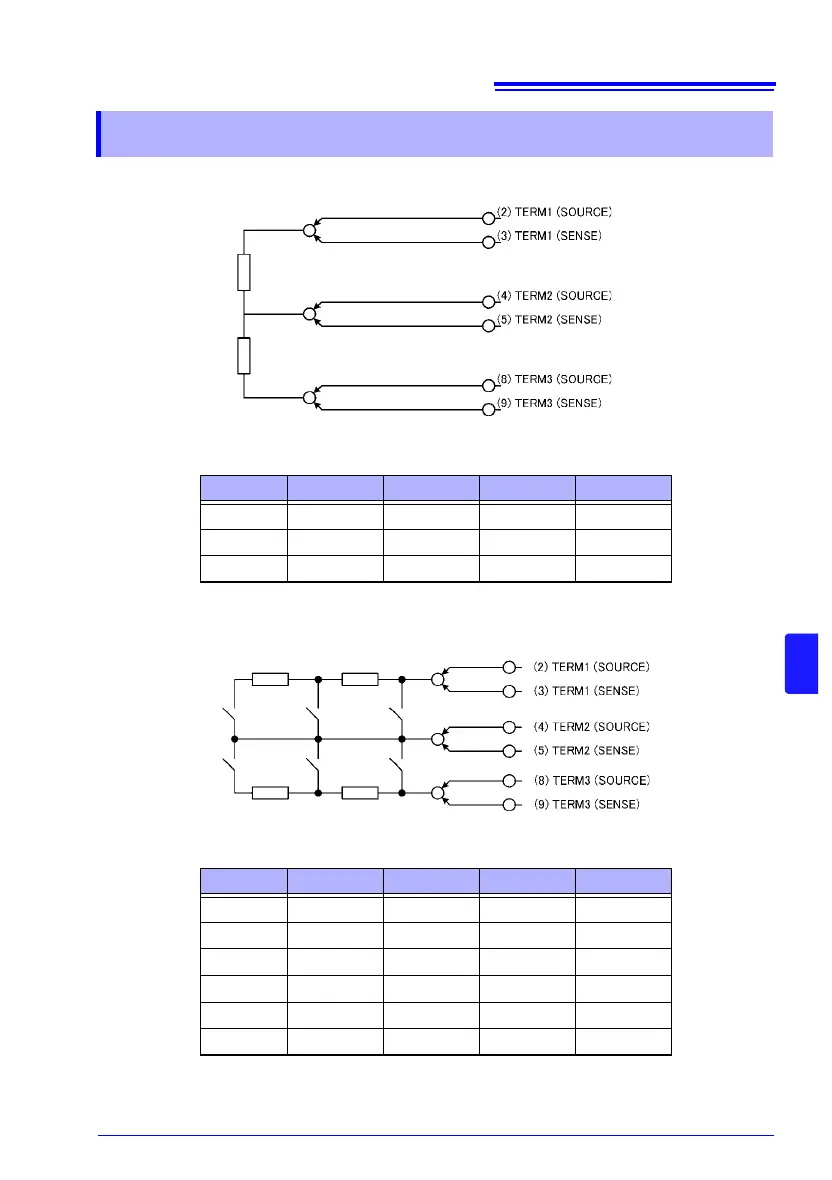

Example network resistor settings
Example steering switch settings
(A step scan is used, with switches being toggled on and off between channels.)
8.7 Example Connections and Settings
MUX settings
CH INST. UNIT TERM A TERM B
1 RM3545 UNIT1 1 2
2 RM3545 UNIT1 2 3
3 RM3545 UNIT1 1 3
MUX settings
CH INST. UNIT TERM A TERM B
1 RM3545 UNIT1 1 2
2 RM3545 UNIT1 1 2
3 RM3545 UNIT1 1 2
4 RM3545 UNIT1 1 3
5 RM3545 UNIT1 1 3
6 RM3545 UNIT1 1 3
