Before connecting the temperature sensor, read "Operating Precautions" (p.6) carefully.
2.3 Connecting Z2001 Temperature Sensor or
Thermometer with Analog Output
(When using the TC or T)
Connecting the Z2001 Temperature Sensor
1 Confirm that the instrument's Main
power switch (rear panel) is OFF( ).
2 Connect the Z2001 Temperature Sensor
into the TEMP.SENSOR jack on the rear
panel.
3 Place the tip of the temperature sensor
near the measurement target.
4 Configure temperature measurement.
Connection Methods

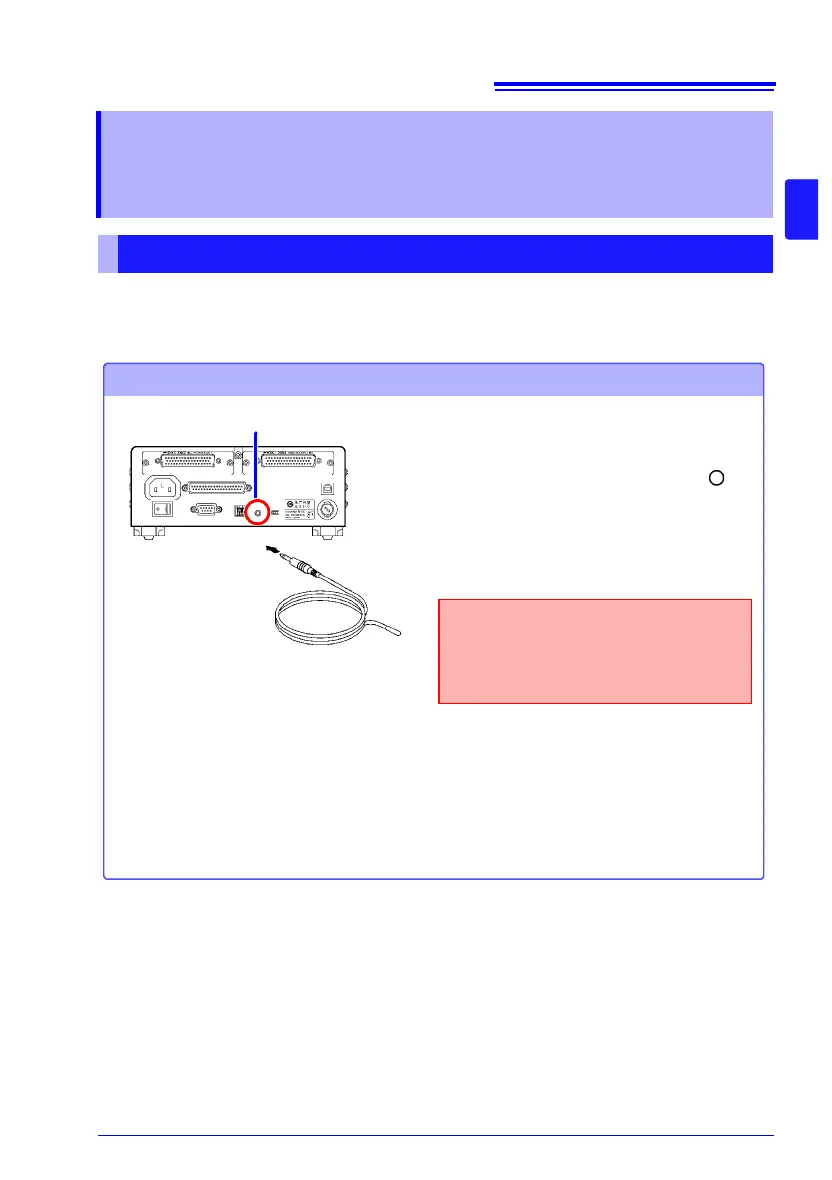

Connecting the Z2001 Temperature Sensor
Rear Panel
Z2001 Temperature Sensor
TEMP.SENSOR jack
Insert the Z2001 securely all the way into
the jack.
Do not connect anything to the
TEMP.ANALOG INPUT terminal block.
