12.2 Printing
240
Before Printing
Verify that the instrument settings (p.239) are correct.
Printing by key operation

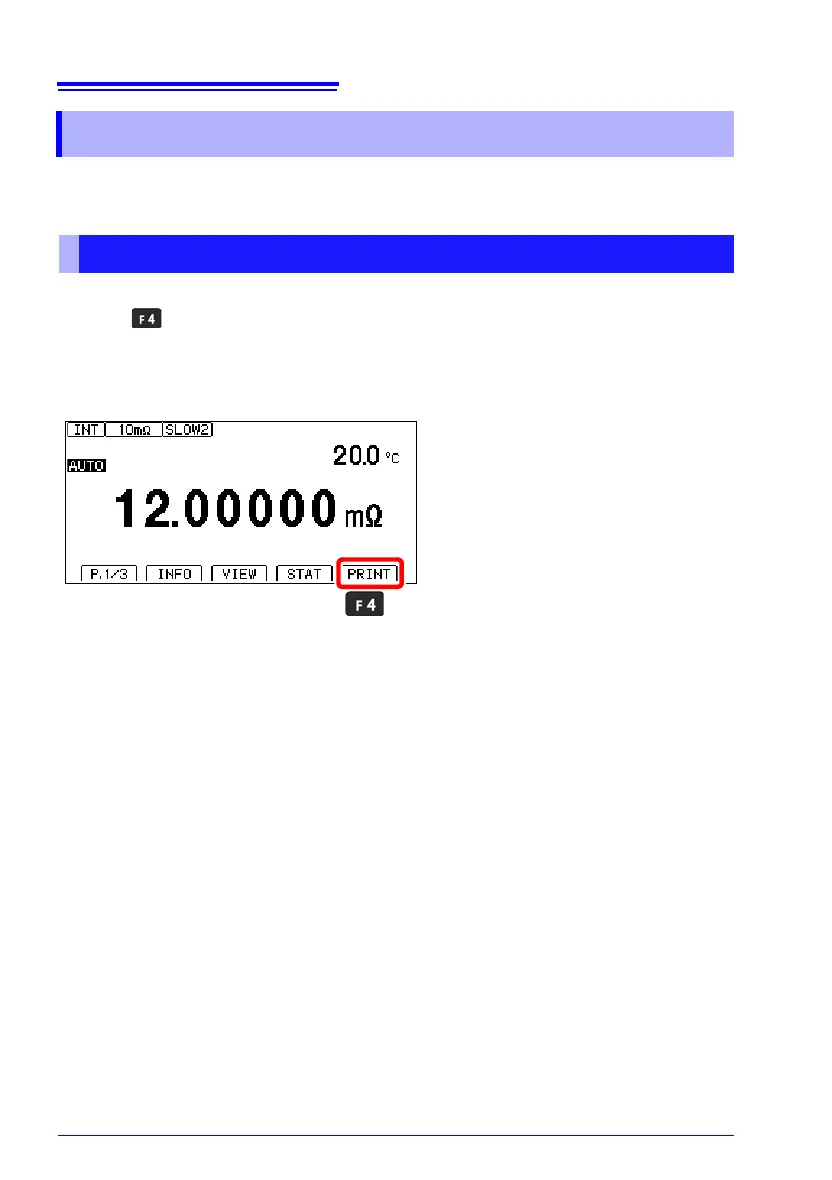

Pressing [PRINT] on Measurement screen P.1/3 causes the current measured value to
be printed. When the temperature is not being displayed, only the resistance value will be
printed. When the temperature is being displayed, both the resistance value and the tem-
perature will be printed.
See: "Switching the Display" (p.52)
Printing by external control
When the instrument’s EXT I/O connector’s PRINT signal is turned ON (by shorting it with
the EXT I/O connector’s ISO_GND pin), you can print measured values and judgment
results.
• To print continuously for each measurement, connect the EOM signal to the PRINT signal
and set the instrument to use the internal trigger.
• To print after the completion of trigger-based measurement using an external trigger, con-
nect the external I/O EOM signal to the PRINT signal.
• When using the internal trigger setting with the statistical calculation function ON, statisti-
cal calculation will be performed with the latest updated measured value when the PRINT
signal is turned ON.
12.2 Printing
Printing Measured Values and Comparator Judgments
