Installation GRS103
Release
01
03/2022
The ring redundancy concept allows the network to be reconfigured quickly
after a failure.
There are convenient options for managing the device. Manage your devices
via:
Web browser
SSH
Network management software (for example Industrial HiVision)
The Network Management Software Industrial HiVision provides you with
options for smooth configuration and monitoring. You find further
information on the Internet at the Hirschmann product pages:
http://www.hirschmann.com/en/QR/INET-Industrial-HiVision
USB-C interface (locally on the device)
The device provides you with a large range of functions, which the manuals
for the operating software inform you about. You can download these
manuals as PDF files from the Internet at: https://www.doc.hirschmann.com
5.1.1 GRS103 basic devices

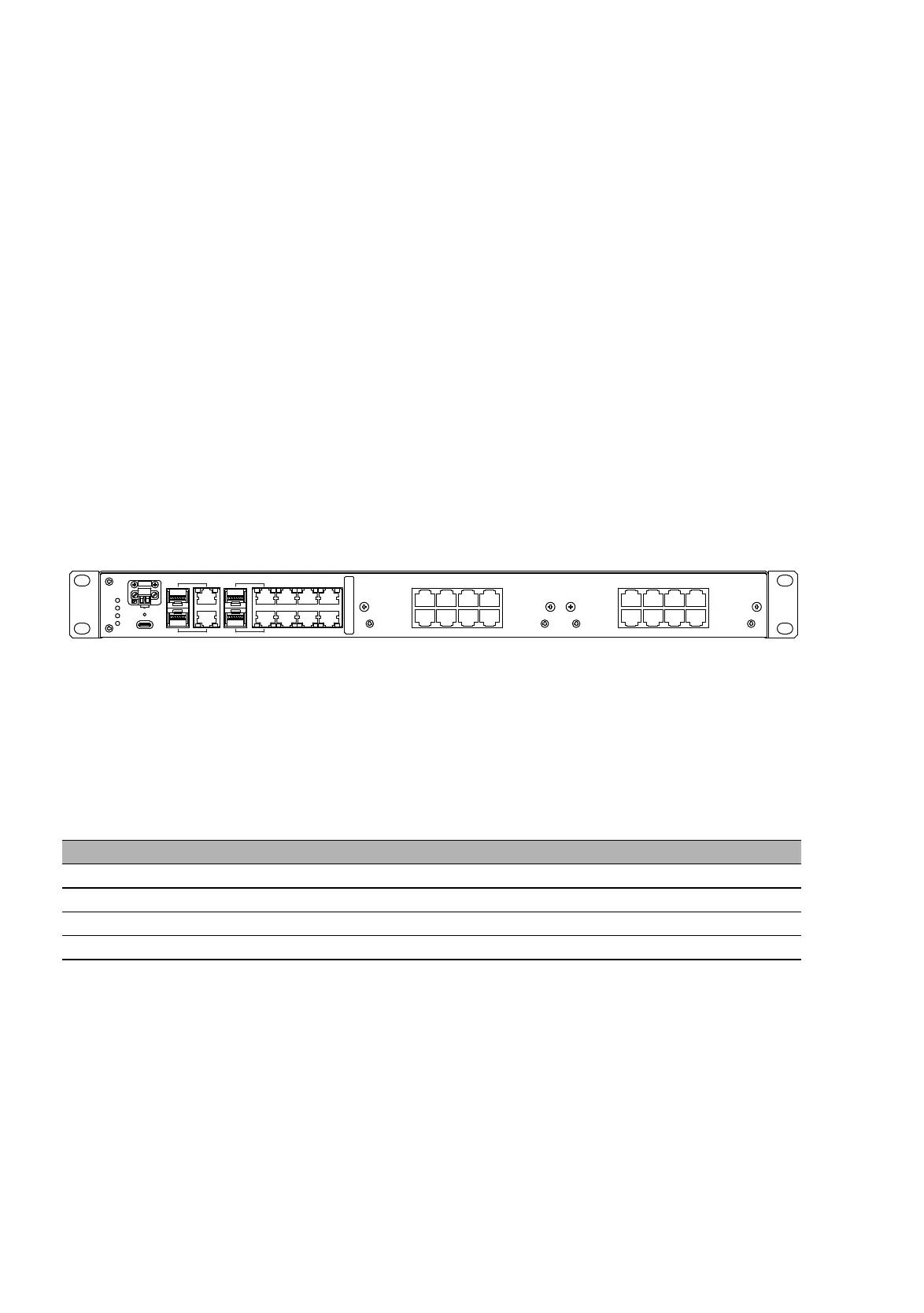

Figure 1: Front view using example of device variant GRS103-22TX/4C
The GRS103 basic device comprises all function units such as: switch
function, management function, redundancy function, voltage connection,
management connection, slots for media modules (depending on the device
variant).
The Fast Ethernet ports (10/100 Mbit/s) of the basic devices are suitable
for connecting end devices or network segments according to the
standards IEEE 802.3 100BASE-TX/10BASE-T. These ports support
autonegotiation and autopolarity. The ports are RJ45 sockets. The
casings of the RJ45 sockets are electrically connected to the front panel
of the device. The pin assignment is identical to MDI-X. When the
autonegotiation function is enabled, these ports also support
autocrossing.
Fixed-variant devices (non-modular) Description
GRS103-22TX/4C-1HV-2S Software level HiOS Layer 2 Standard, 1 PSU
GRS103-22TX/4C-1HV-2A Software level HiOS Layer 2 Advanced, 1 PSU
GRS103-22TX/4C-2HV-2S Software level HiOS Layer 2 Standard, 2 PSUs
GRS103-22TX/4C-2HV-2A Software level HiOS Layer 2 Advanced, 2 PSUs
Table 1: Overview non-modular devices
