Installation GRS103
Release 01 03/2022

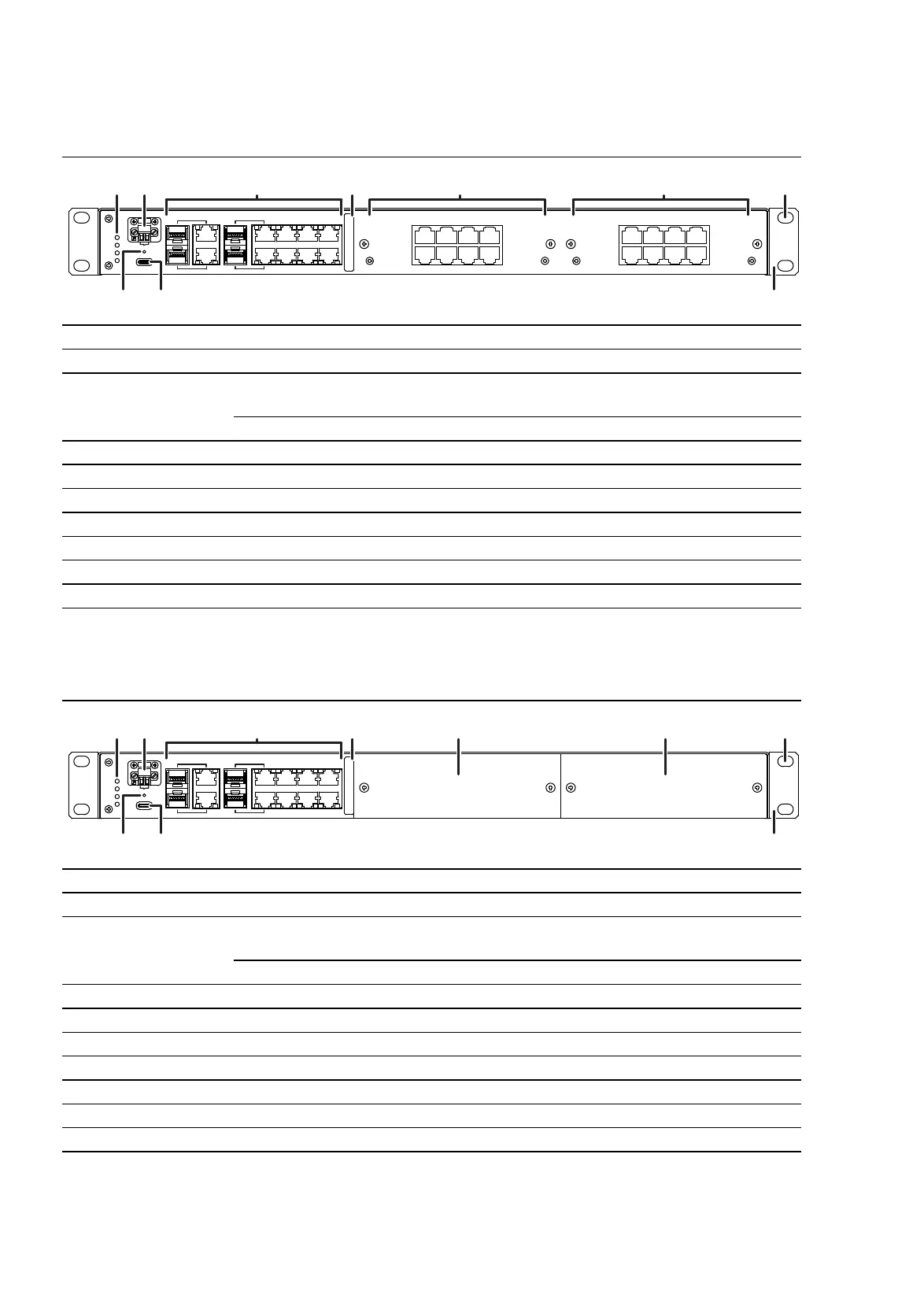

5.2 Device views
5.2.1 Basic device
5.2.2 Modular basic device
1 LED display elements for device status
2 Signal contact 2-pin terminal block
3 Port group I 4 × Combo port for 10/100/1000 Mbit/s TP connections
or 100/1000 Mbit/s F/O connections
6 × 10/100 Mbit/s twisted pair port
4 MAC address of device (label)
5 Port group II 8 × 10/100 Mbit/s twisted pair port (not present in GRS103-6TX/4C...)
6 Port group III 8 × 10/100 Mbit/s twisted pair port (not present in GRS103-6TX/4C...)
7 Oblong hole
8 Mounting bracket
9 ACA22 interface
10 Screw hole for ACA installation
Table 5: Front view using example of device variant GRS103-22TX/4C
1 LED display elements for device status
2 Signal contact 2-pin terminal block
3 Port group I 4 × Combo port for 10/100/1000 Mbit/s TP connections
or 100/1000 Mbit/s F/O connections
6 × 10/100 Mbit/s twisted pair port
4 MAC address of device (label)
5 Media module slot 1
6 Media module slot 2
7 Oblong hole
8 Mounting bracket
9 ACA22 interface
10 Screw hole for ACA installation
Table 6: Front view using example of device variant GRS103-6TX/4C
2.1 2.3 2.5 2.7
2.2 2.4 2.6
2.8
3.1 3.3 3.5 3.7
3.2 3.4 3.6
3.8
USB
MAC address
Status
P
ACA
1.1
1.2
1.5 1.7
1.9
1.6 1.8 1.10
1.3
1.4
Relay
1
2
3
4
567
8910
USB
MAC address
Status
P
ACA
1.1
1.2
1.5 1.7
1.9
1.6 1.8 1.10
1.3
1.4
Relay
1
2
3
4
5 6
7
8
910
