Installation GRS103
Release
01
03/2022
41
6.2 Installing an SFP transceiver (optional)
Prerequisites:
Exclusively use Hirschmann SFP transceivers.
See “Accessories” on page 77.

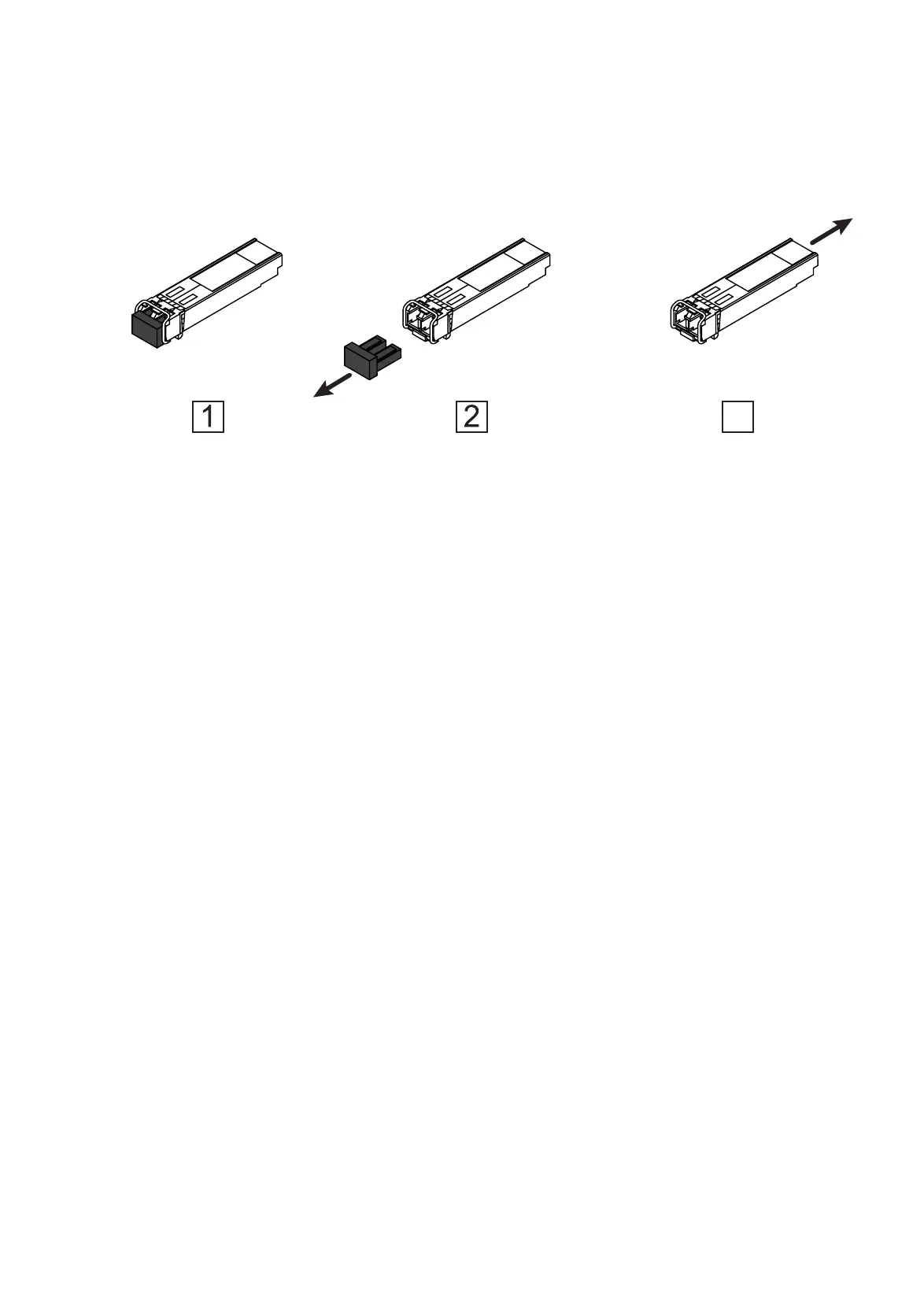

Figure 18: Installing SFP transceivers: Installation sequence
Perform the following work steps:
Take the SFP transceiver out of the transport packaging (1).
Remove the protection cap from the SFP transceiver (2).
Push the SFP transceiver with the lock closed into the slot until it latches
in (3).
6.3 Mounting a cover panel
Seal the media module slot on the device with a cover panel.
Place the cover panel onto the media module slot of the device.
Fasten the cover panel to the device by tightening the 2 screws.
6.4 Mounting a media module
On delivery, the device is ready for operation.
The modular GRS103 device variants GRS103-6TX/4C... use the M1 family
of media modules, which are also compatible with MACH102 devices.
Note the chapters “ESD Guidelines” on page 11 and “General safety
instructions”.
The media modules are hot-plug-compatible. This means that you have the
option to replace modules with modules of the same kind during operation.
