Installation GRS103
Release
01
03/2022
23
The Gigabit Ethernet Combo ports (alternatively connectable via F/O or
TX) of the basic devices are suitable for connecting end devices or
network segments according to the standards IEEE 802.3 1000BASE-X/
100BASE-FX (SFP slot) and IEEE 802.3 1000BASE-T/100BASE-TX /
10BASE-T (RJ45 socket).
A plugged SFP module switches off the TX port.
5.1.2 Modular GRS103 basic devices

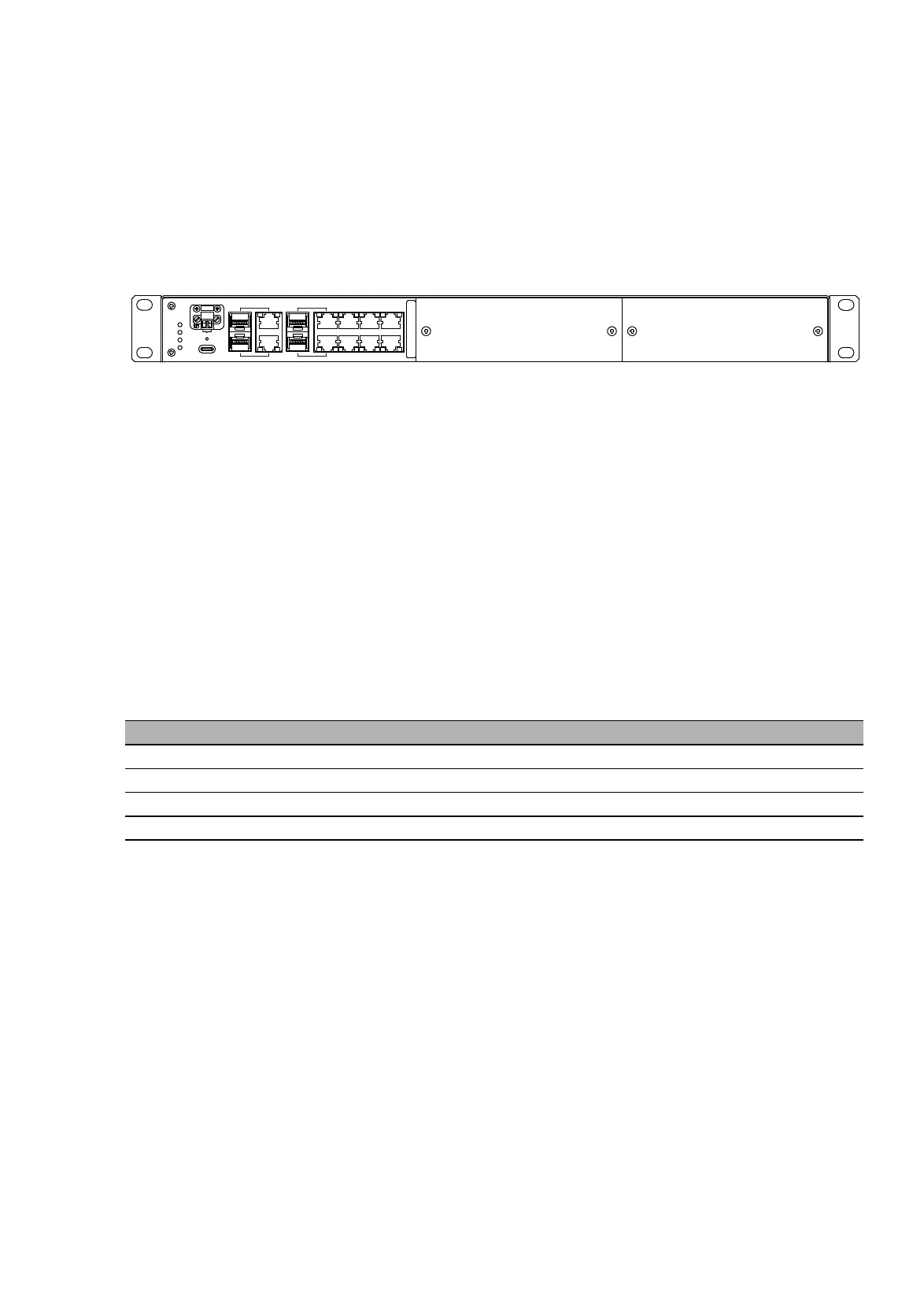

Figure 2: Front view using example of device variant GRS103-6TX/4C
The GRS103-6TX/4C... device variants from the Industrial Ethernet family
GRS103 are modular switches. The devices consist of a basic switch device
and, depending on the device variant, pluggable media modules for
additional ports.
Up to 2 pluggable media modules each provide an additional 8 Fast Ethernet
interfaces. There are various types of media modules available with different
connectors.
For the sake of simplicity, the basic switch device with various plugged-in
media modules will be referred to as GRS103 in this document.
Modular-variant devices Description
GRS103-6TX/4C-1HV-2S Software level HiOS Layer 2 Standard, 1 PSU
GRS103-6TX/4C-1HV-2A Software level HiOS Layer 2 Advanced, 1 PSU
GRS103-6TX/4C-2HV-2S Software level HiOS Layer 2 Standard, 2 PSUs
GRS103-6TX/4C-2HV-2A Software level HiOS Layer 2 Advanced, 2 PSUs
Table 2: Overview modular devices
USB
MAC address
Status
P
ACA
1.1
1.2
1.5 1.7
1.9
1.6 1.8 1.10
1.3
1.4
Relay
