Installation GRS103
Release
01
03/2022
Note: If you are replacing media modules, for example removing a TP media
module and plugging in an F/O media module in its place, the GRS103
device performs a warm start. This also applies if you plug a GRS103 media
module into a previously empty media module slot.

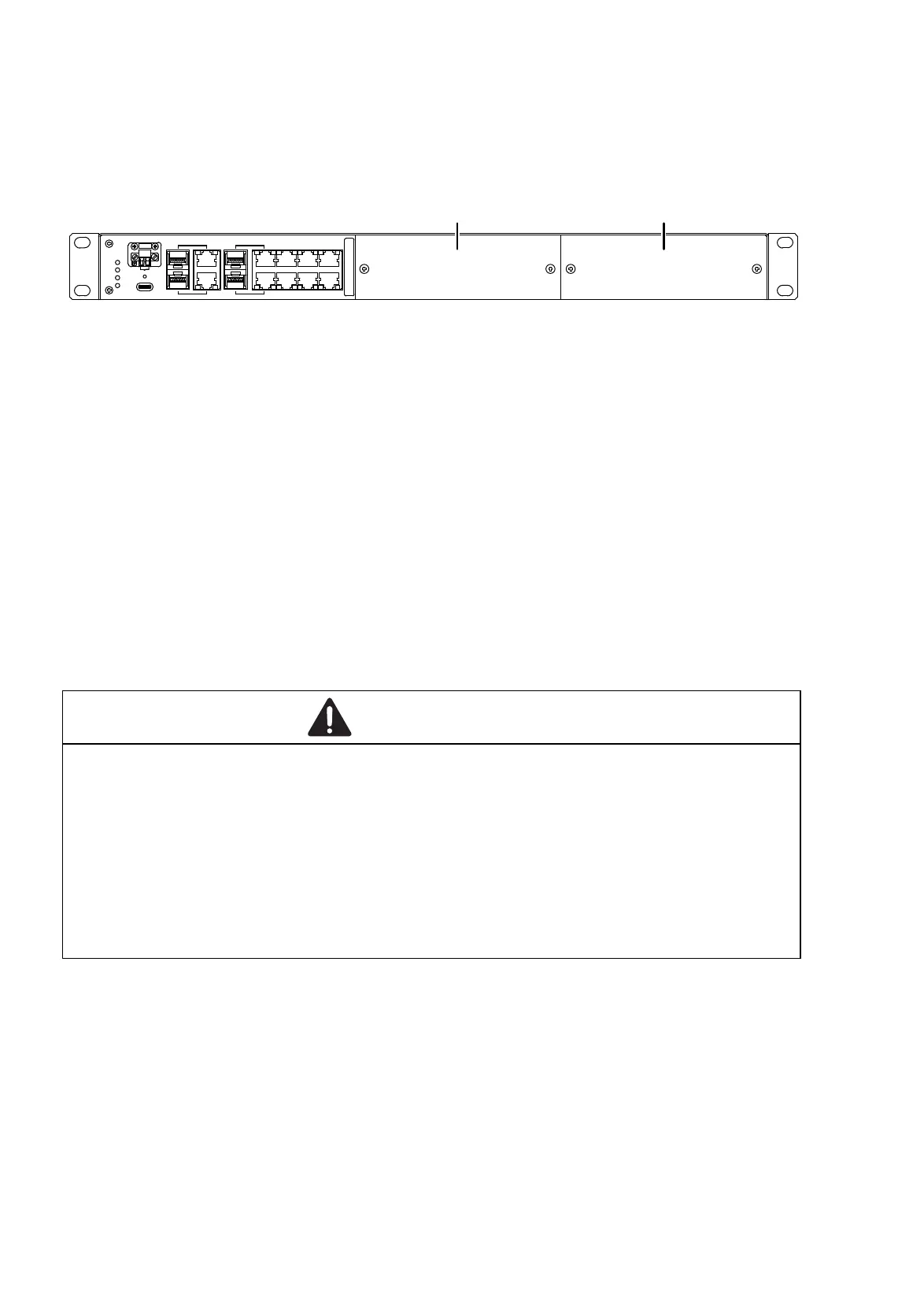

Figure 19: GRS103 device equipped with media modules
1 - media module 1
2 - media module 2
To attach a media module, first remove the 2 screws on the protective
cover of the media module slot and remove the protective cover.
Plug the media module into the desired slot.
Fasten the 2 screws at the corners of the media module.
Fit the media modules in sequence from left to right.
6.5 Installing the device
WARNING
ELECTRIC SHOCK
Never insert pointed objects (narrow screwdrivers, wires, etc.) into the
device or into the connection terminals for electric conductors.
Do not touch the connection terminals.
Failure to follow these instructions can result in death, serious injury,
or equipment damage.
