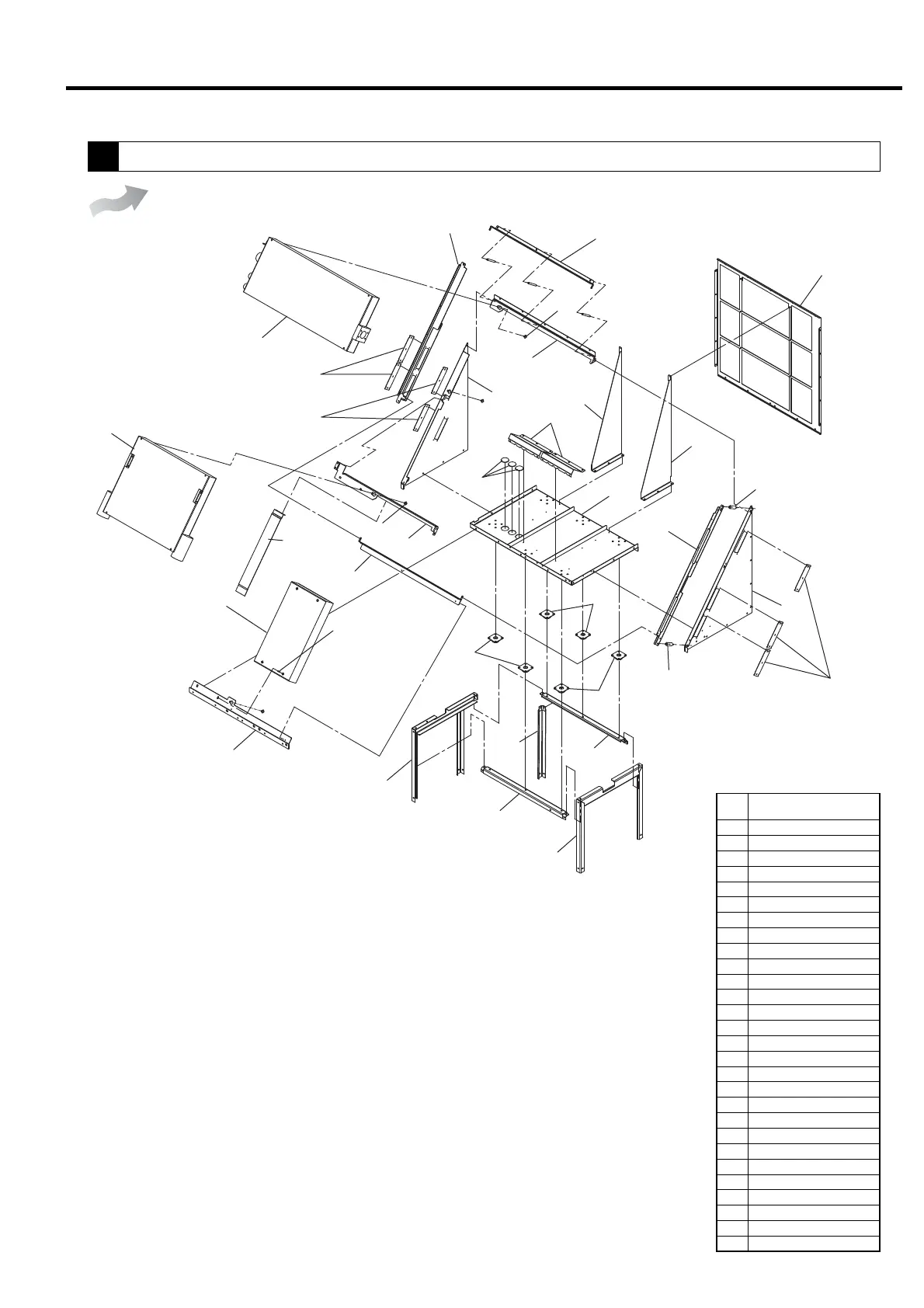

11. PARTS LIST
623
642
639
F63
608
646
644
635
650
649
651
645
628
F47
643
648
652
631
633
648
F47
F47
634
E52
E52
E52
H84
630
H85
H86
647
H84
E53
H85
653
(90/100kW only)
Air-Cooled
5
Coolers & Ventilating Fan (3)
Ref.
No.
Description
608 Aftercooler
623 Intercooler
628 Support
630 Support (1), base frame
631 Support (2), base frame
633 Support (3), base frame
634 Support (4), base frame
635 Support (5), base frame
639 Oil cooler
642 Duct Panel (2)
643 Duct Panel (3)
644 Duct Panel (4)
645 Duct Panel (5)
646 Duct Panel (6)
647 Duct Panel (7)
648 Duct Panel (8)
649 Duct Panel (9)
650 Duct Panel (10)
651 Duct Panel (11)
652 Duct Panel (12)
653 Cover Plate
E52 Maintenance Cover
E53 Current Plate
F47
Vibration Isolation Rubber
F63 Rubber Bush
H84 Cooler Bolt
H85 Support, cooler bolt
H86 Oil Cooler Stud
