Hitachi DSP-110A6N User Manual

100

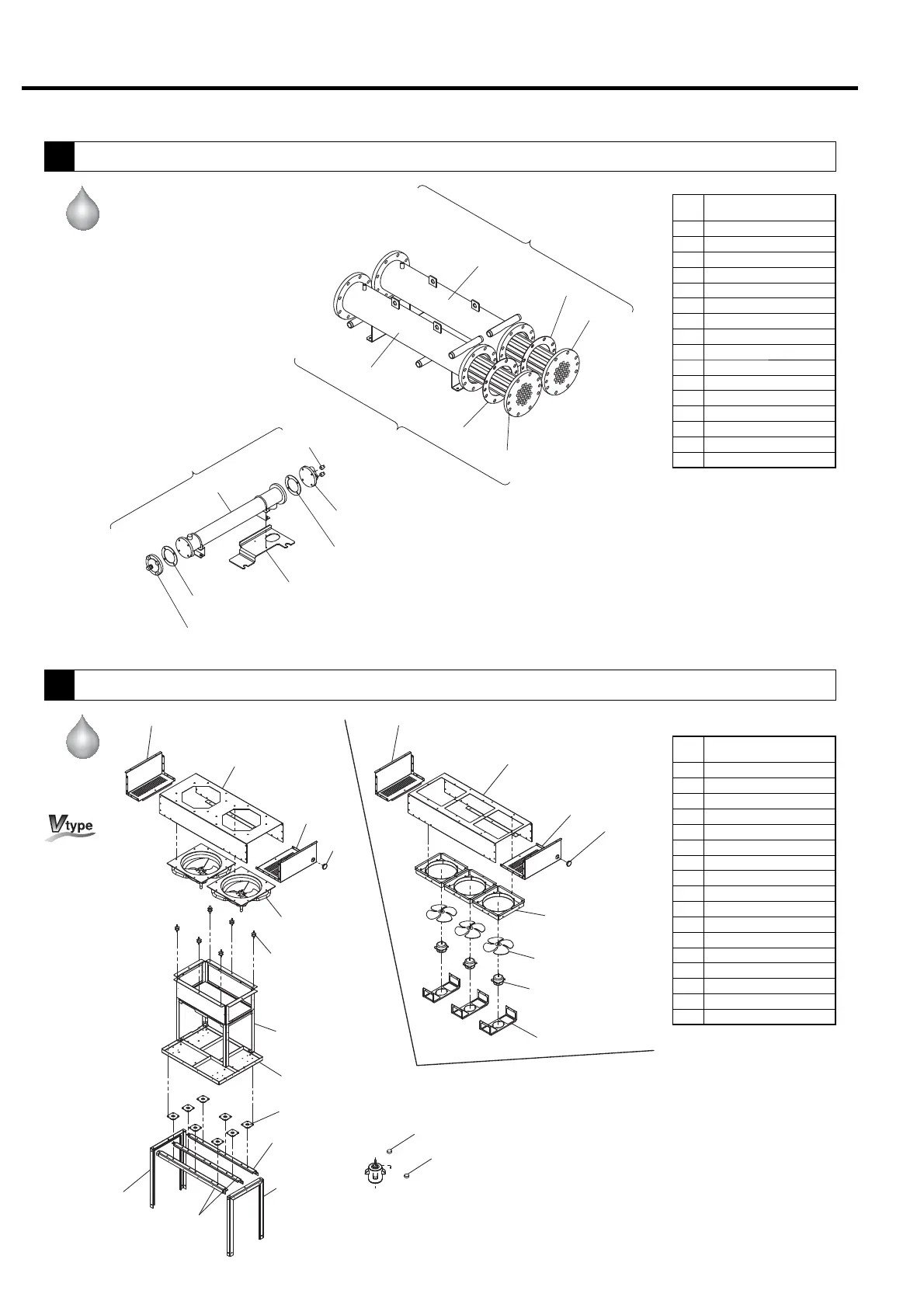

11. PARTS LIST
Ref.
No.
Description
601 Shell, aftercooler
602 Tube Nest, aftercooler
605
Gasket, aftercooler tube nest
608 Aftercooler Assembly
610 Oil cooler Assembly
611 Tube Nest, oil cooler
612
Cover, oil cooler water chamber
613 Gasket, oil cooler water chamber cover
614 Cover, oil cooler
615 Gasket, oil cooler cover
623 Intercooler Assembly
624 Shell, intercooler
625 Tube Nest, intercooler
626
Gasket, intercooler tube nest
627 Support, oil cooler
632 Plug
601
605
602
625
626
624
614
615
611
613
612
627
623
608
610
632
Water-Cooled
Ref.
No.
Description
404 Ventilating Fan
628 Base, coolers
629 Duct, air exhaust
631 Support (1), base frame
633 Support (2), base frame
634 Support (3), base frame
671 Duct (1), fan motor
672 Duct (2), fan motor
673 Duct (3), fan motor
678 Support (2), fan motor
679 Fan
681 Fan Motor
686 Support (1), fan motor
F47
Vibration Isolation Rubber
F49 Vibration Isolation Rubber
F62 Rubber Bush
C84 Fan Motor Bearing
671
672
672
404
F49
629
628
634
631
633
631
671
672
673
678
679
681
686
F62
F62
F47
C84
C84
Water-Cooled
[Fixed speed type]
5
Coolers & Ventilating Fan (1)
5
Coolers & Ventilating Fan (2)
