Hitachi RPI-2.0FSN4E Service Manual

4 Electrical wiring
157
4
SMGB0077 rev.0 - 01/2013

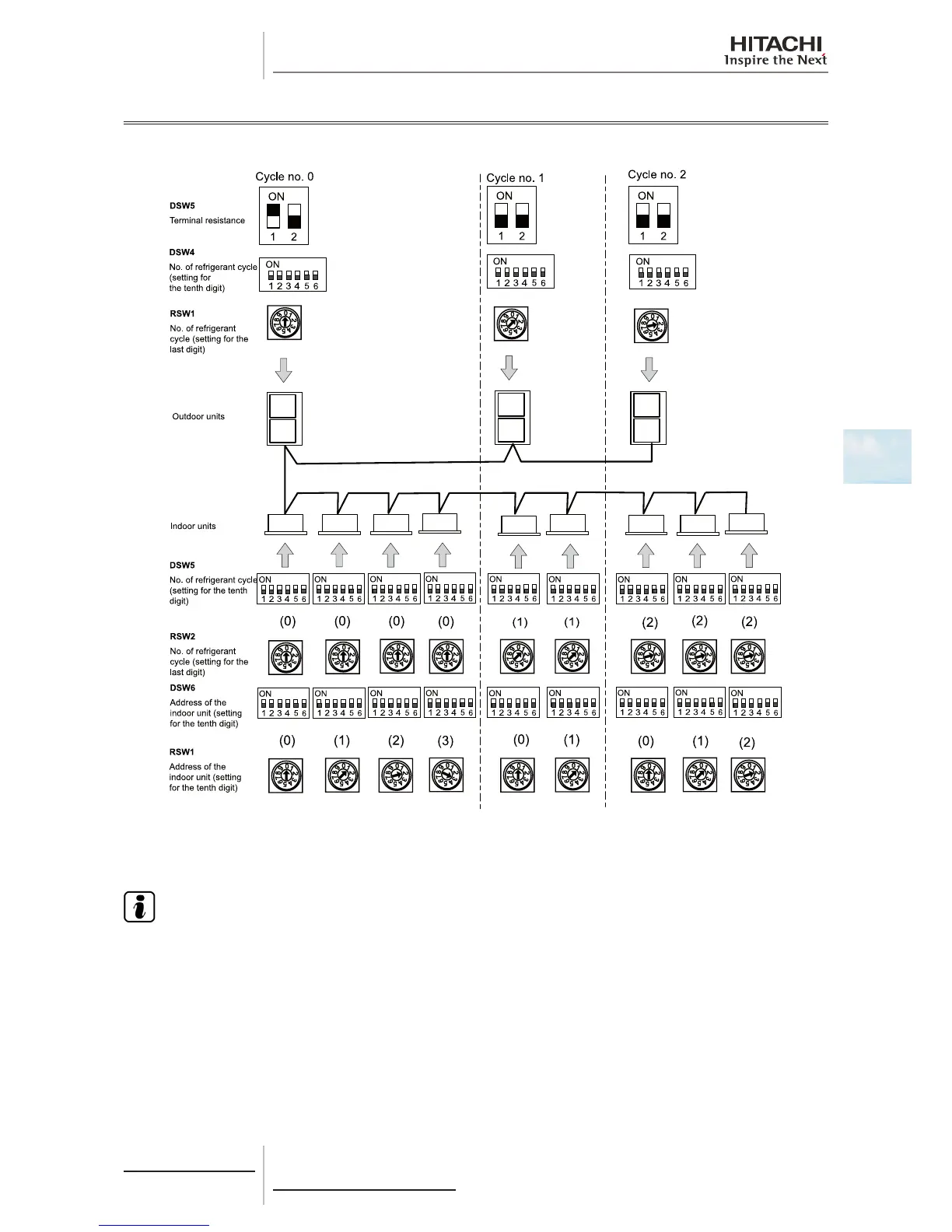

4.2 Setting of DIP switches and RSW switches
1 Turn off the power supply before setting the DIP switches. Otherwise, the switch settings are invalid.
2 To set the position of the RSW rotary switches, insert a screwdriver into the groove of the RSW.
N O T E
The DIP and RSW switches of each indoor and outdoor unit must be set, although they do not all have to be set.
Read the following sections carefully for information on which ones must be set.

Hitachi RPI-2.0FSN4E Specifications

General

Brand	Hitachi
Model	RPI-2.0FSN4E
Category	Air Conditioner
Language	English
