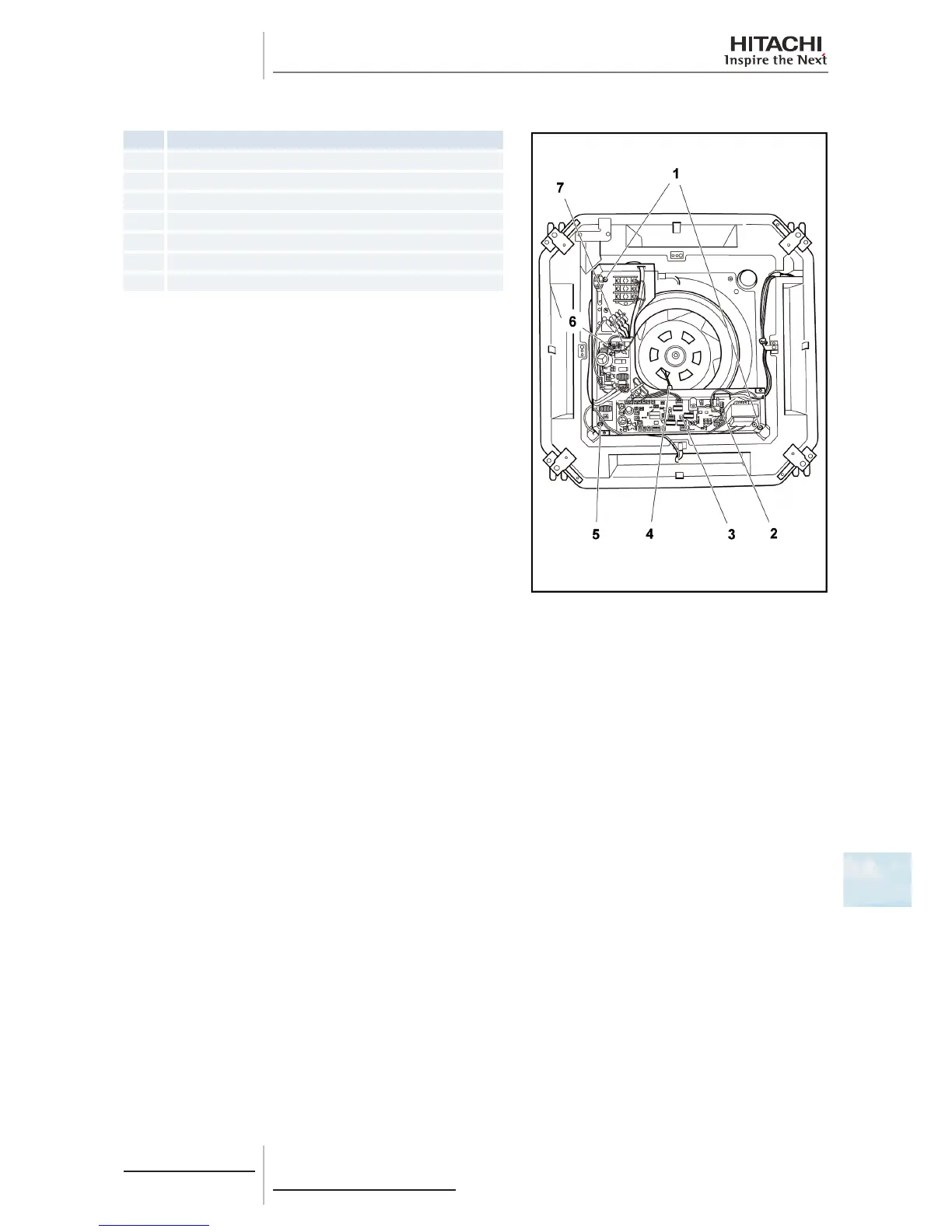

10.3.5 Removal of the electrical box
Nº Part
1 Electrical box set screw
2 Drainage pump connector (PCN6)
3 Automatic louver connector (CN17)
4 Outlet thermistor (THM2)
5 Automatic louver electrical box set screw (THM2)
6 Fan motor connector (CN203)
7 Fan motor connector (CN201)
Remove the air inlet grille as indicated in chapters Removal of the
air îš¿lter and Removal of the air inlet grille.
Remove the electrical box as follows:
1 Remove the electrical box cover.
2 Disconnect the thermistors (THM2), the drainage motor
connector (PCN6), the oat switch connector (CN14), the
automatic louver connector (CN17) and the fan motor
connector (PCN203, CN201) from the PCB.
3 Remove the three set screws from the electrical box and
remove carefully.
