10.3.10 Removal of the oat switch
Remove the drain pan as indicated in chapter Removal of the
drain pan.

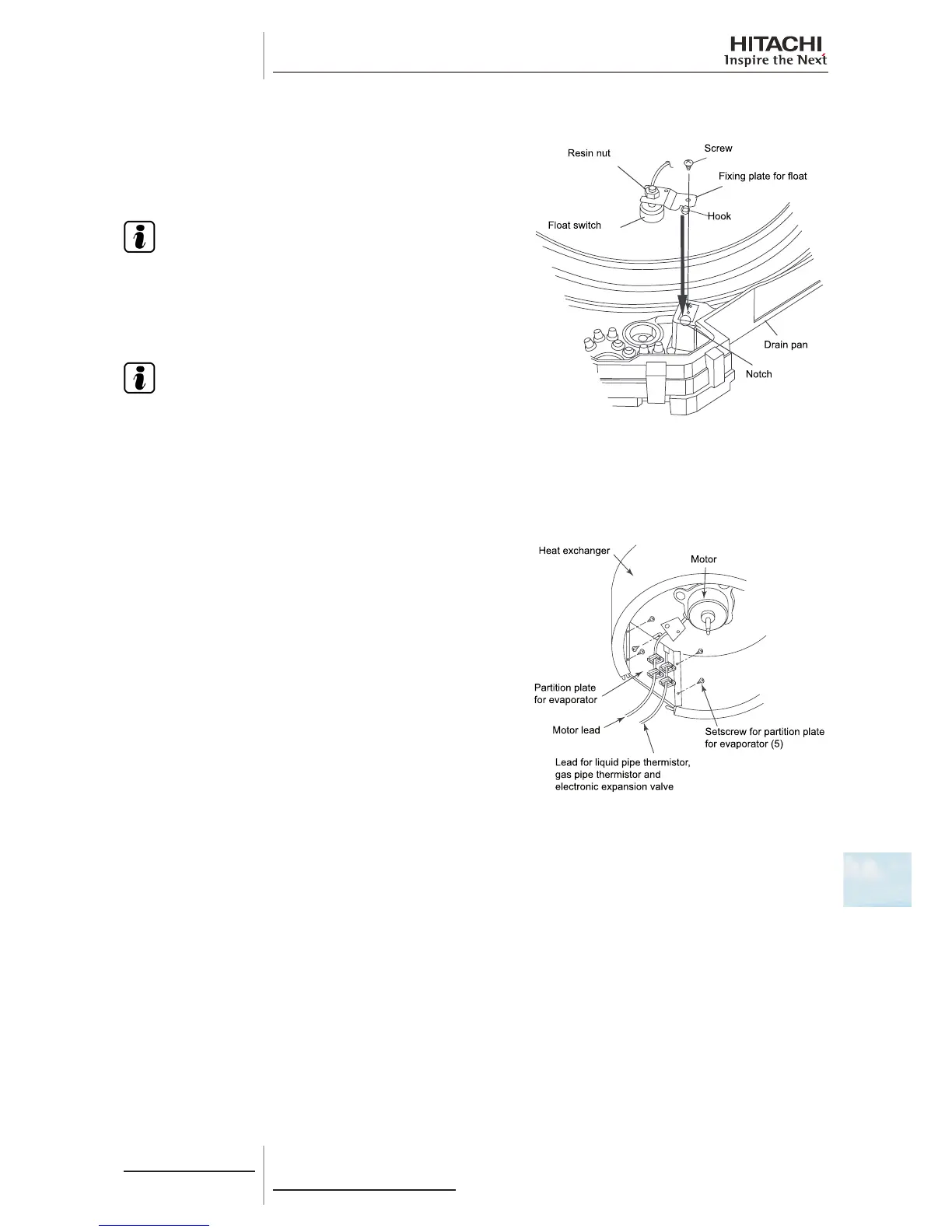

Remove the screw securing switch securing plate to the drain pan
and remove it.
N O T E
Theoatswitchislocatedattherearofthedrainpan.
Loosen the resin nut securing the oat switch and remove it.
Remove the two screws securing the drain mechanism to remove
the mechanism.
N O T E
• Whenretting,makesurethehookisttedintothegroove
in the drain pan and screw into place.
• The torque value of the resin nut is 0.3 - 0.4 Nm. If the
torque value is higher, the nut will be damaged.
10.3.11 Removal of the thermistors from the liquid and gas pipes
Remove the optional air panel in line with the instructions given in
chapter Removal of the optional air panel.
Remove the fan duct in line with the instructions given in chapter
Removal of the fan duct and the fan.
Remove the drain pan as indicated in chapter Removal of the
drain pan.
Remove the evaporator partition plate securing the heat exchanger
by removing the ve screws.
