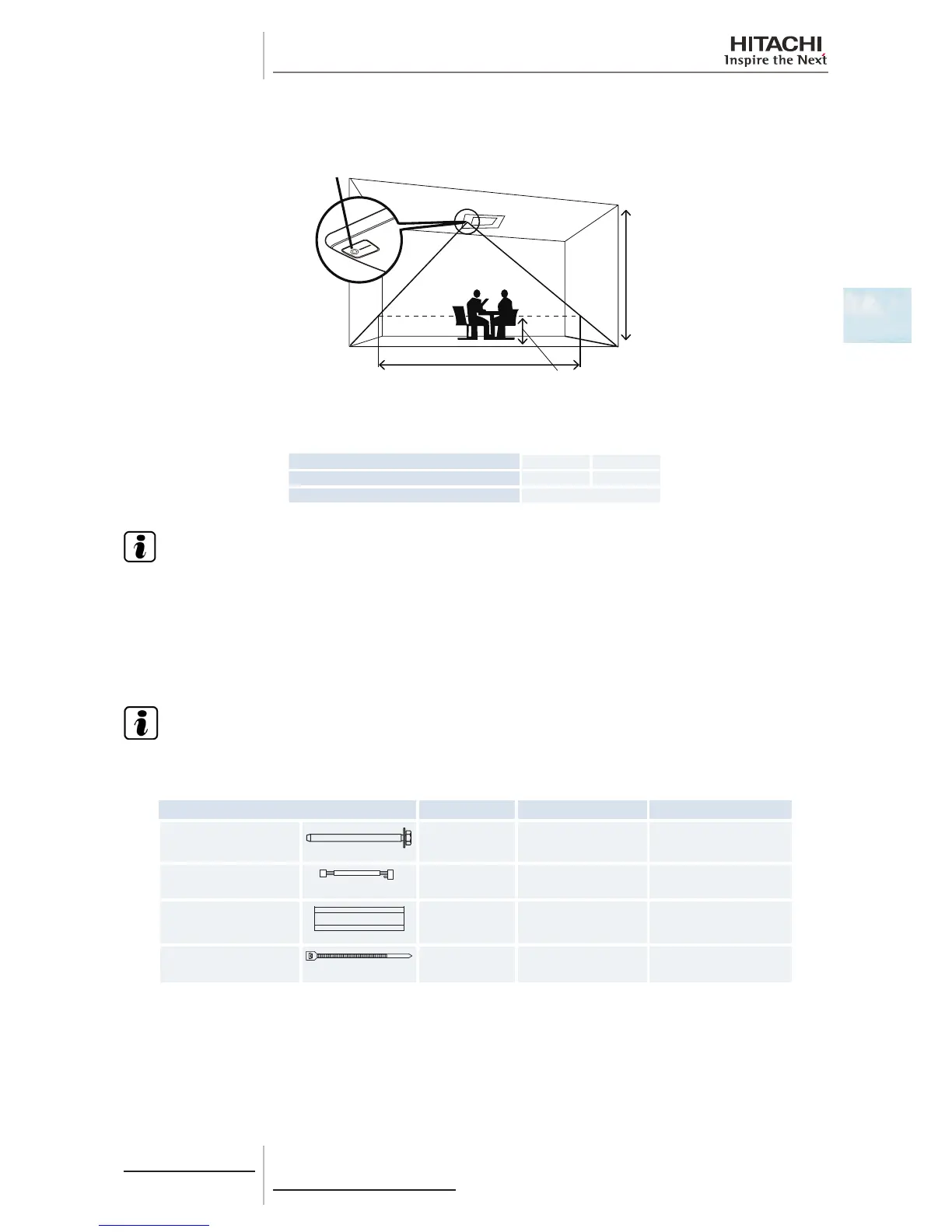

Sensing area for the motion sensor (only for air panel model P-AP160NAE)
The sensing area for the motion sensor is shown in the îš¿gure below when applying the motion sensor with the air panel.
Ø
a
h
Motion sensor
From oor surface
0.8m
Installation Height of Indoor Unit h (m) 2.7 3.2
Sensing Area for Motion Sensor Øa (m) Approx. 7.0 Approx. 8.8
Motion Detection Human Motion
N O T E
The motion sensor may detect as absence in the case that the indoor unit with the motion sensor is installed to a
high ceiling (higher than 4m) even if someone is in a room.
2.1.3 Accessories supplied with the air panel: P-AP160NA1 / P-AP160NAE
Check that the following accessories are supplied with the unit.
N O T E
Please contact your HITACHI distributor if any of the accessories has not been supplied with the unit.
Accessory P-AP160NA1 P-AP160NAE Purpose
Long screw
(M6 Cross Screw)
4 4 For îš¿xing air panel
Relay wire
A: 3 poles / B: 5 poles
A B
- 1 For motion sensor
Wiring cover
- 1
For protection of relay
connector
Cord band
- 3
For clamping wiring cover
and relay connector
To Next Page
