Hitachi RPI-2.0FSN4E Service Manual

10 Servicing
384
SMGB0077 rev.0 - 01/2013
Drain Pan
Approx. 29mm
Make sure that it is approx. 29mm from the drain pan to the
top of the thermistor.
Outlet Air
Thermistor
Rubber Bush for
Outlet Air Thermistor
Drain Pan
Flocked Sheet
Lead Wiring for
Outlet Air Thermistor
Rubber Bush for
Outlet Air Thermistor

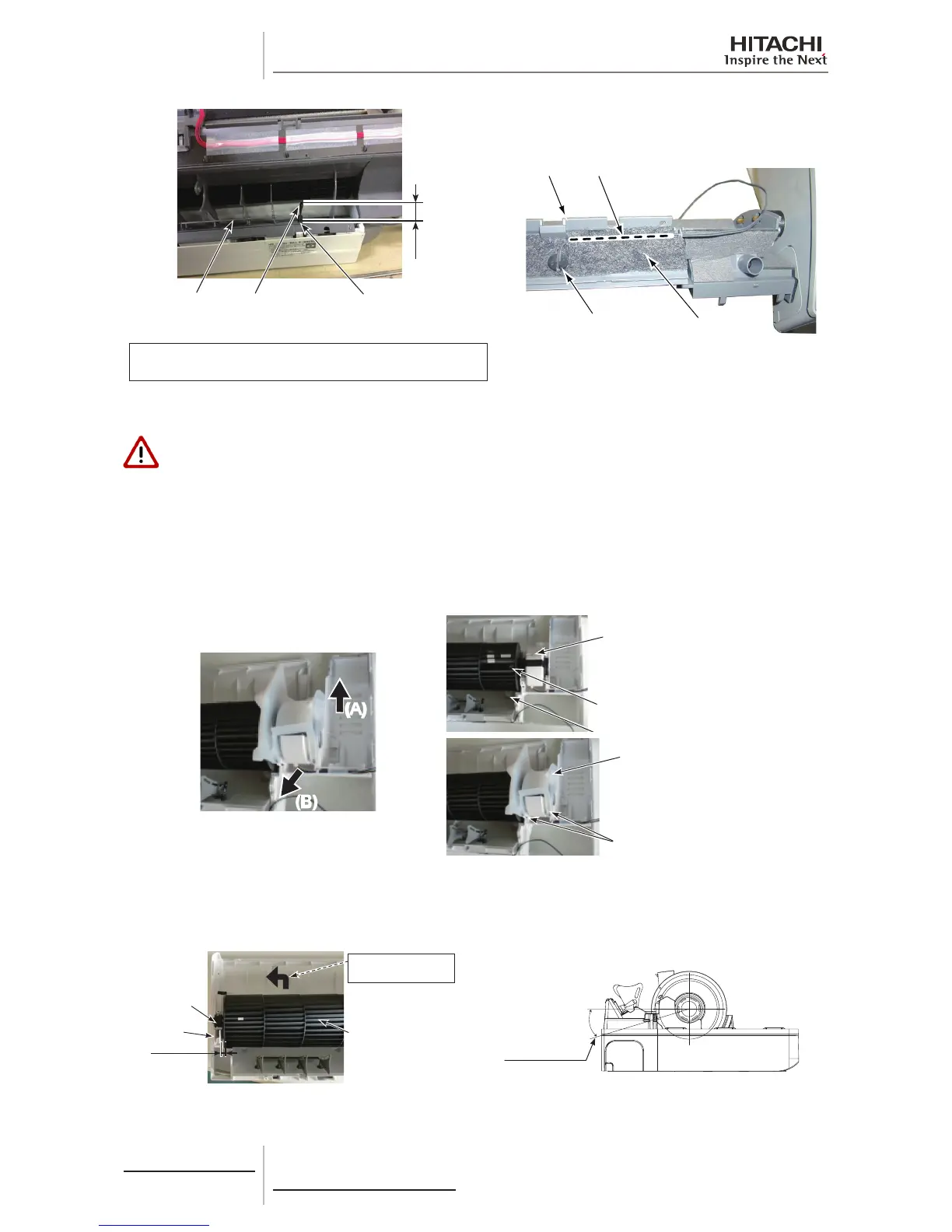

10.9.12 Removing Fan and Fan Motor
D A N G E R
TURN OFF all power source switches.

For RPK-(0.8-1.5)FSN(H)3M
1 Remove the heat exchanger according to the “Removing Heat Exchanger” chapter.
2 Remove 2 screws xing the motor clamp to remove it. As lifting up the motor clamp in the direction of the arrow (A),
pull it out in the direction of the arrow (B).
3 Then Loosen 1 screw xing the fan and the motor shaft.
#
(A)
(B)
Fan Motor
Fixing Screw
for Fan
Fan
Motor Clamp
Fixing Screws for
Motor Clamp
4 Hold the fan with hands and lift the bearing side up slightly. Then pull out the fan in the direction of the arrow to remove
the fan and the motor as shown in the gure below.
5 When mounting the fan motor and fan, mount them in the reverse procedure. The fan shall be mounted 4mm away
from the unit body.
6 The lead wire for the fan motor shall be pulled out as shown in the gure below.
Bearing
Lift up the fan and
pull it to the left.
Fan
Unit Body
4mm
(20°)
Lead Wire for
Fan Motor
