Hitachi RPI-2.0FSN4E Service Manual

10 Servicing
387
10
SMGB0077 rev.0 - 01/2013
30±5 mm
New Electronic Expansion
Valve Coil for Replacement
Detent of Electronic
Expansion Valve Coil
Rotation Direction
Wiring Outlet of
Expansion Valve Coil
(A)
Projection Portion
on Valve Body

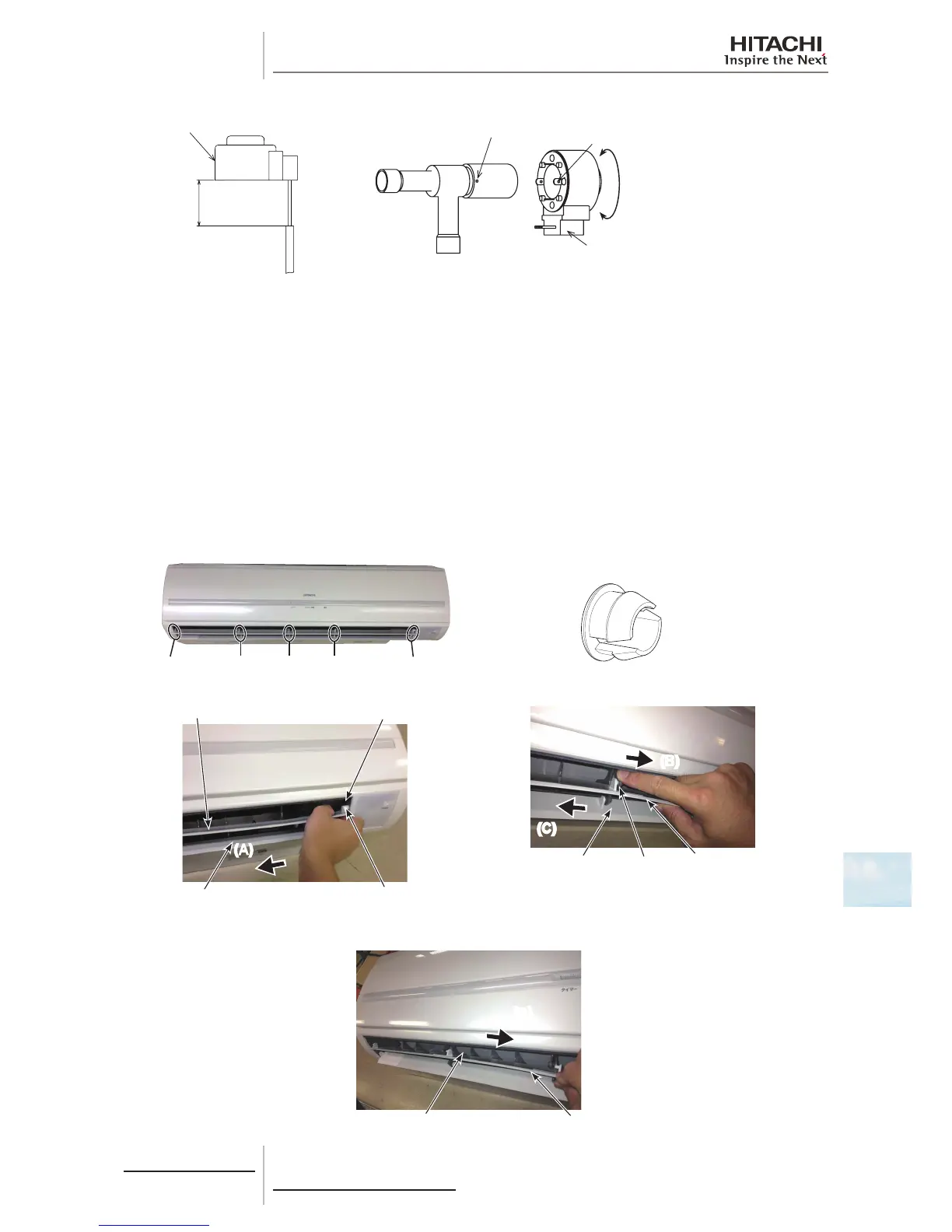

10.9.14 Removing Horizontal Louver

For RPK-(0.8-1.5)FSN(H)3M
Do not remove the horizontal louver when removing the drain pan. Removing the horizontal louver will result in component
failures.

For RPK-(2.0-4.0)FSN(H)3M
Do not lose the bearings for each shaft at the right, middle, left and far left.
1 Open the upper and lower horizontal louver slightly.
2 Slightly bend the upper horizontal louver and pull it in the direction of the arrow (A) to remove the shaft at the far right
from the drain pan.
3 As slightly bending the center pole at the right side of the drain pan in the direction of the arrow (B), pull the upper
horizontal louver in the direction of the arrow (C) to remove the shaft at the right from the drain pan.
Ꮐ┵ゲ Ꮐ஥ゲ ᄩゲ ฝ஥ゲ ฝ┵ゲ
Far Left
Shaft
Left
Shaft
Middle
Shaft
Right
Shaft
Far Right
Shaft
Bearing
Upper Louver
Lower Louver
Drain Pan
Far Right Shaft
(A)
Lower Louver Upper Louver
Center Pole
at Right Side
of Drain Pan
(C)
(B)
4 Pull out the upper horizontal louver in the direction of the arrow (D) to remove it.
Drain Pan Upper Louver
(D)
