10 Servicing
335
10
SMGB0077 rev.0 - 01/2013

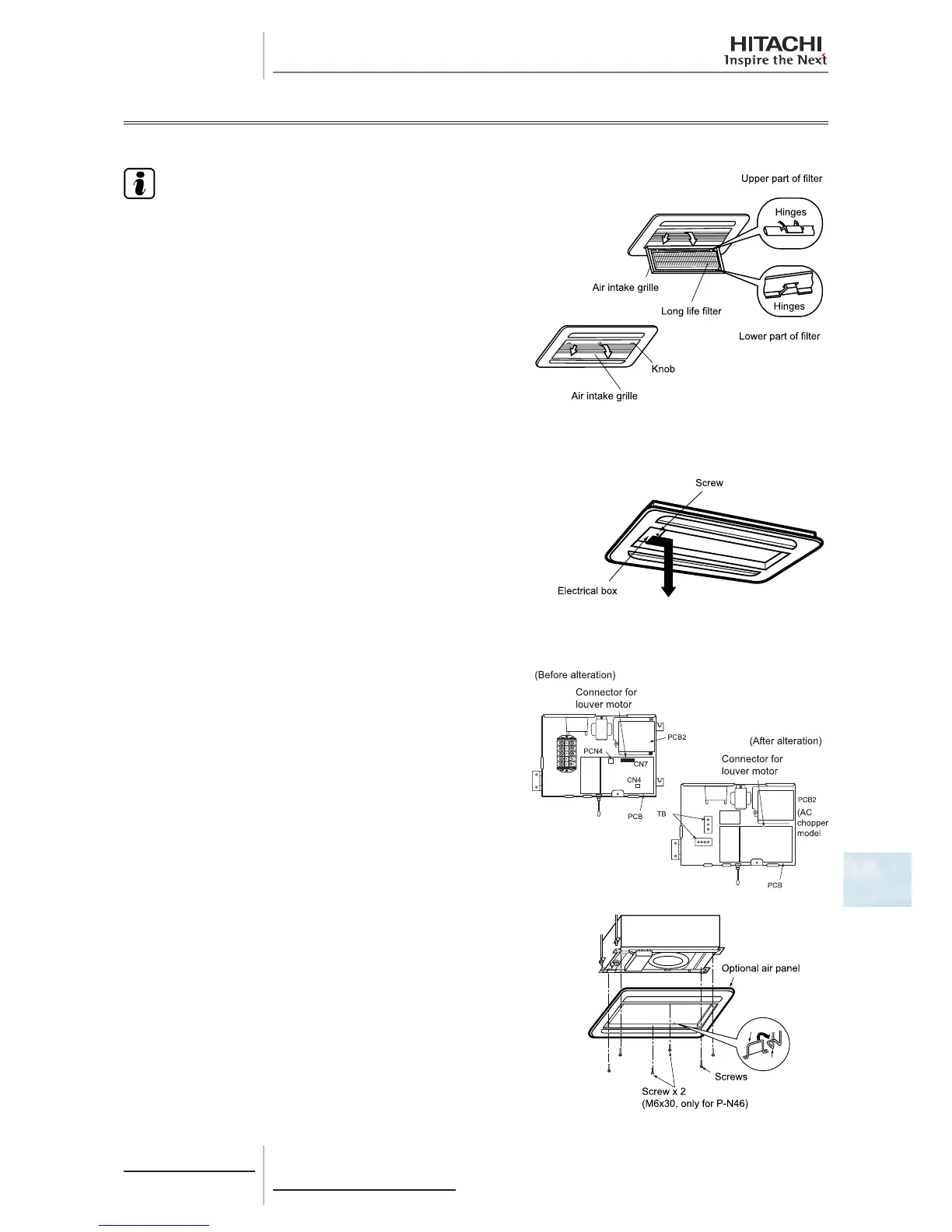

10.4 RCD - 2-way cassette
10.4.1 Removal of the long-lasting lter and the air inlet grille
N O T E
Thelong-lastinglterislocatedinsidetheairinletgrille.
Open the air inlet grille by pressing the button, as indicated in the
îš¿gure.
Remove the îš¿lter from the grille by holding onto the lower part of
the grille and the îš¿lter and detaching the blocked part.
The grille can be removed by lifting and pulling it forwards from the
chain to release it.
10.4.2 Removal of the electrical box
Open the air inlet grille.
Loosen the screw securing the electrical box panel and remove it.
10.4.3 Removal of the optional air panel
Open the air inlet grille.
Remove the electrical box panel.
Remove the connector (CN17) of the automatic louver on the
indoor unit PCB.
Remove the air inlet grille from the optional air panel.
Remove the four screws securing the optional air panel.
Remove the panel after detaching the hinge from the two positions
next to the drain pan.
To Next Page
