Hitachi RPI-2.0FSN4E Service Manual

10 Servicing
358
SMGB0077 rev.0 - 01/2013
10.8 RPIM - Ducted indoor unit

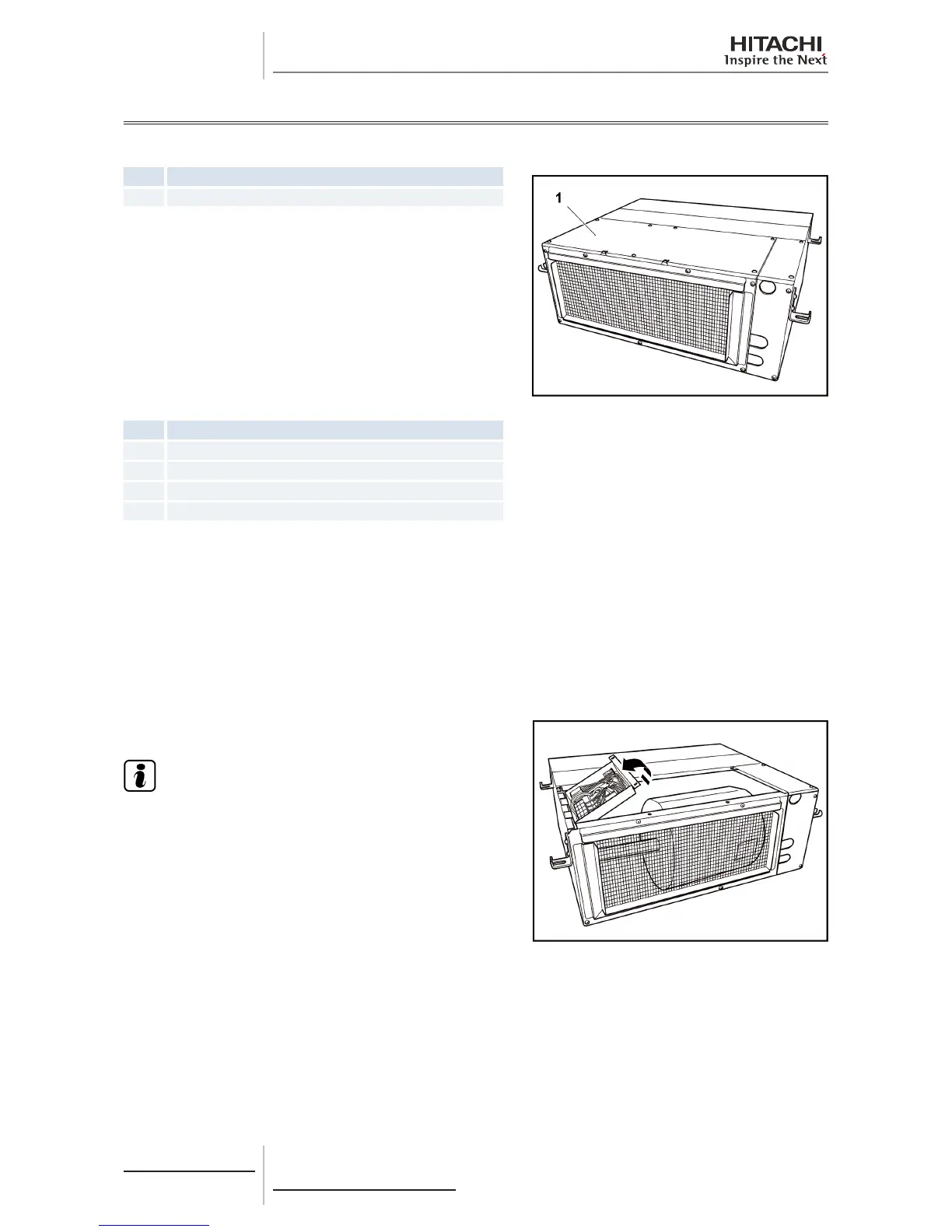

10.8.1 Removal of the electrical box
Nº Part
1 Location of the electrical box cover.
Remove the electrical box cover to access the electrical
components.
Nº Part
1 Set screws
2 Terminal board
3 Transformer
4 PCB
Remove the set screws and remove the electrical box from the
unit.
N O T E
Theelectricalboxisttedwithahinge.
