10 Servicing
344
SMGB0077 rev.0 - 01/2013

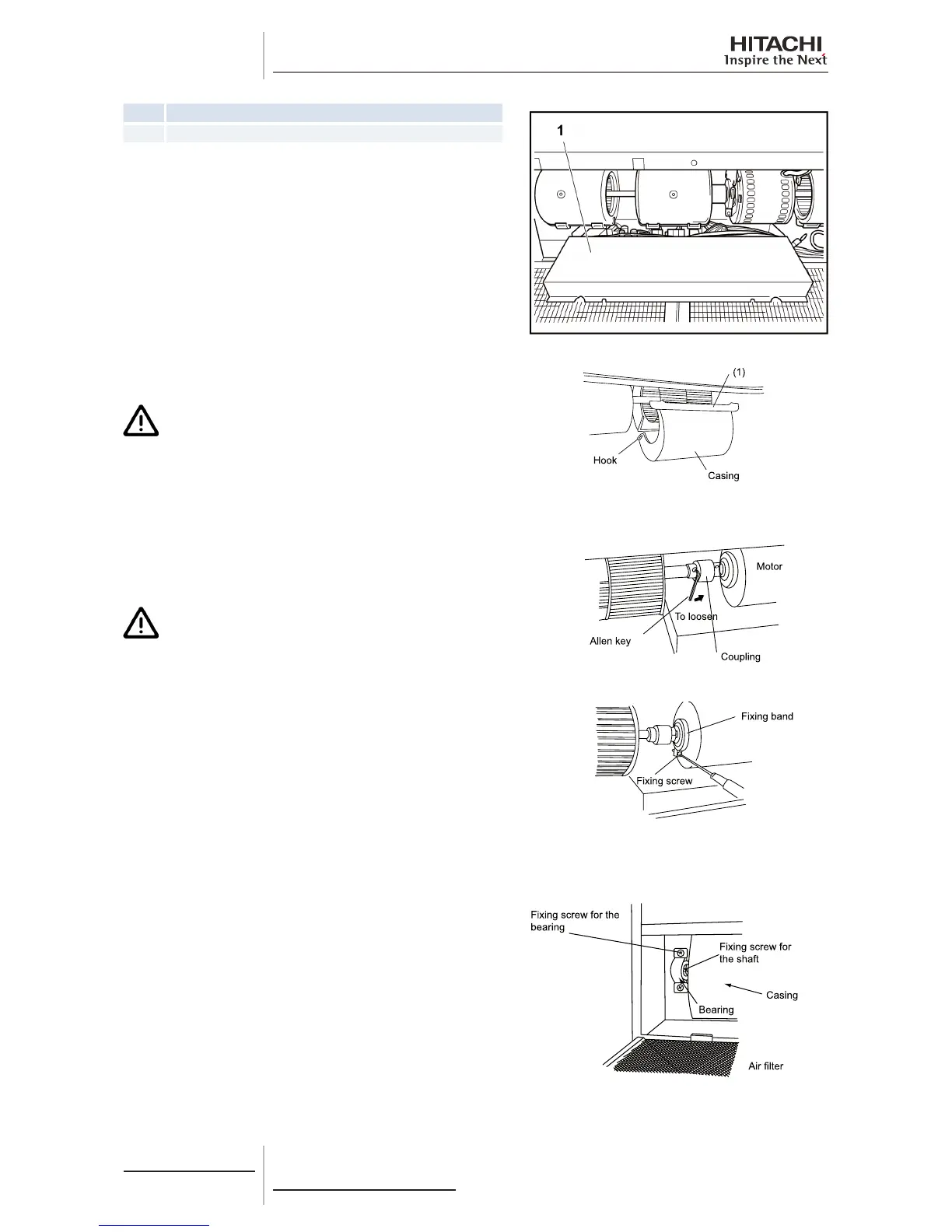

Nº Part
1 Electrical box
Remove the screws securing the box and attach to the lower
frame.
C A U T I O N
Hold onto the electrical box to prevent it from falling.
Press the four attachment points of the cover (1) inwards and
remove it.
Loosen the coupling screws using a wrench.
Remove the securing ange and remove the fan motor by sliding
it backwards.
C A U T I O N
Hold onto the motor to prevent it from falling.
10.5.5 Removal of the fan shaft support
Remove the side panel in line with the instructions given in chapter
Removal of the side panel.
Loosen the two bolts securing the support and the shaft using a
hexagonal wrench.
Remove the four M8 set screws from the support and remove it.
