10 Servicing
329
10
SMGB0077 rev.0 - 01/2013

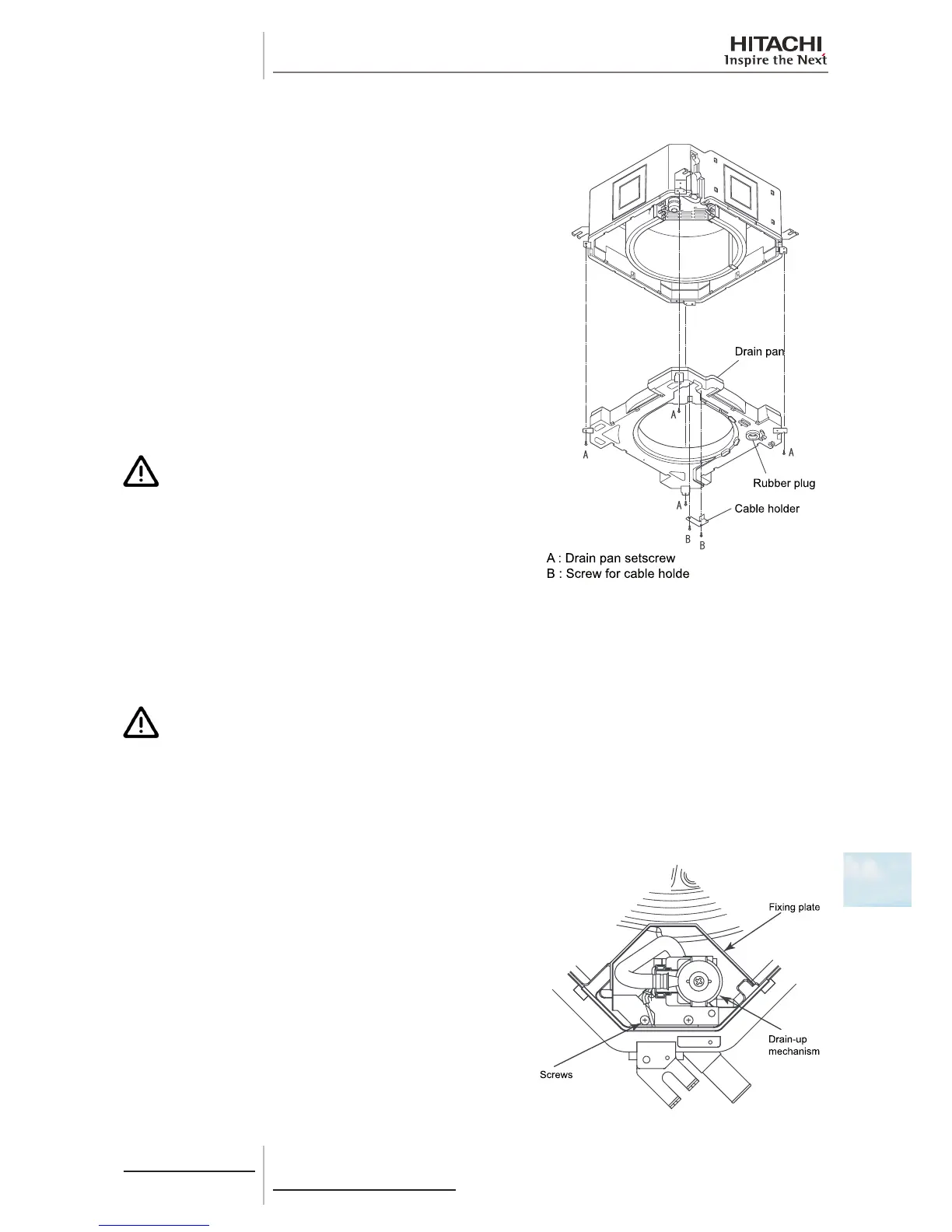

10.3.8 Removal of the drain pan
Remove the air panel in line with the instructions given in chapter
Removal of the optional air panel.
Remove the electrical box cover as indicated in chapter Removal
of the electrical box.
Separate the connectors from:
1 The air outlet thermistor.
2 The two pipe thermistors.
3 The electronic expansion valve.
4 The drainage pump.
5 The oat switch.
Remove the fan duct and motor as indicated in chapter Removal
of the fan duct and the fan.
Remove the two screws securing the cable support to the drain
pan and remove the support.
Empty the pan of water by removing the rubber plug.
C A U T I O N
• The plug is sealed with silicone but can be easily removed
by pulling on the bottom of it.
• Do not use a knife or similar to remove the rubber plug, as
this could damage it.
• Do not remove or damage the lower plug insulation when
reîš¿tting.
Check that the drainage hole is not blocked.
Remove the drain pan after removing the four set screws, pulling
it carefully downwards.
C A U T I O N
• Donotuseasharptool,suchasascrewdriver,tottherubberplug,asthiscoulddamageit.
• Afterttingtheplug,theremustbeaspaceof2-3mmbetweenitandthedrainpan.
10.3.9 Removal of the drain mechanism
Remove the drain pan as indicated in chapter Removal of the
drain pan.
