Hitachi RPI-2.0FSN4E Service Manual

10 Servicing
330
SMGB0077 rev.0 - 01/2013

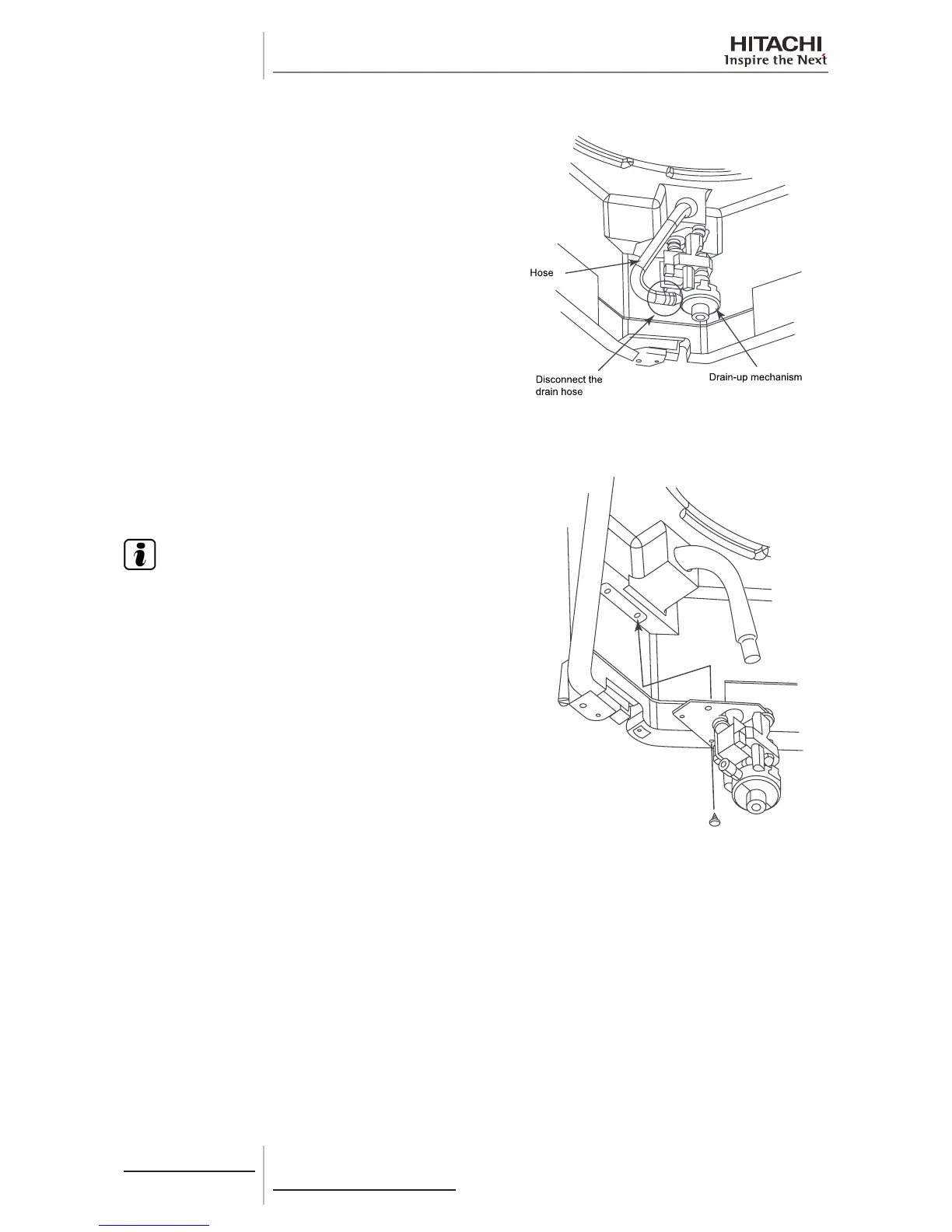

Remove the ange from the hose and remove the drain hose.
Remove the earthing wiring screw.
Hold the drain mechanism and remove the screw from the
mechanism securing plate.
Remove the mechanism with the securing plate.
N O T E
When installing, t thedrain hose asfar aspossible in the
pump.
