10 Servicing
341
10
SMGB0077 rev.0 - 01/2013

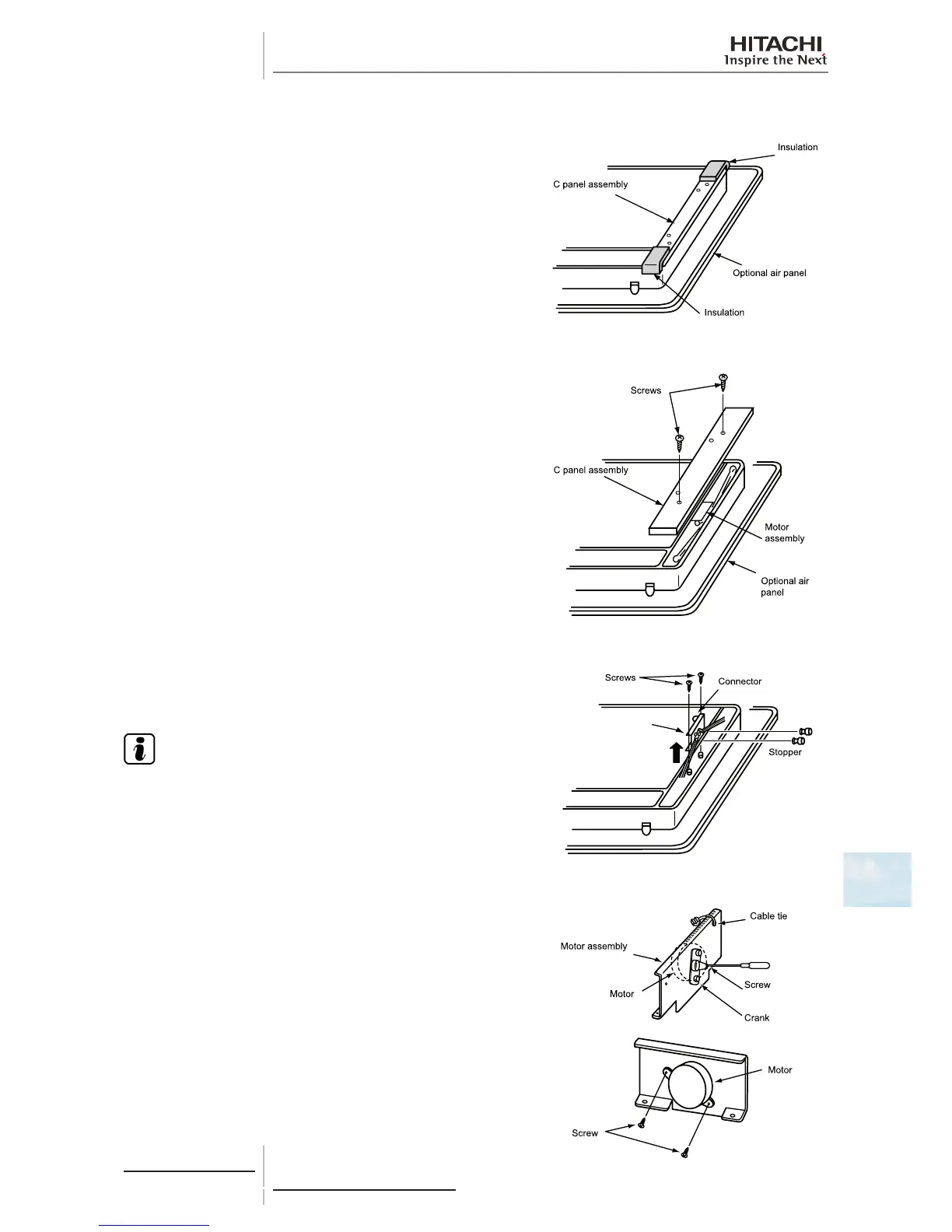

10.4.11 Removal of the automatic louver motor
Remove the optional air panel in line with the instructions given in
chapter Removal of the optional air panel.
Remove the insulating material attached by the adhesive on both
sides of panel C.
Remove the two screws securing panel C and remove the optional
air panel.
Remove the two screws securing the motor.
Remove the two stops by lifting the motor by hand in the direction
of the arrow.
N O T E
• The stops can be removed by pulling them.
• The motor can be separated by removing the connector at
the same time.
Remove the screw securing the handle and cut the plastic tie
securing the motor cable.
Remove the two screws securing the motor and remove it.
