5 Control system
195
5
SMGB0077 rev.0 - 01/2013

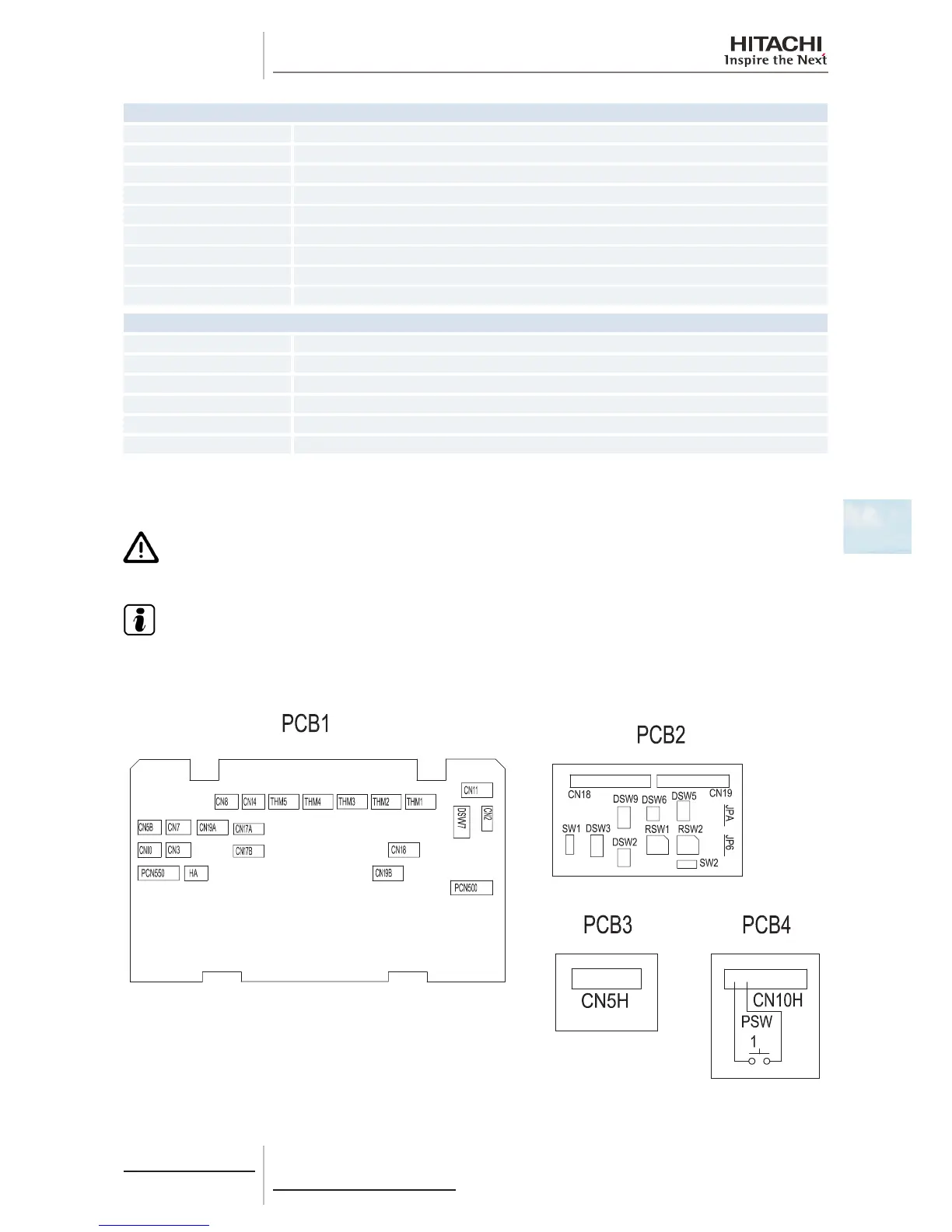

Connector indication
CN10 Not used
CN11 Micro-computer control expansion valve
CN14 Not used
CN17A Motor for automatic swing louver
CN17B Not used
CN18 Printed circuit board 2
CN19A Printed circuit board 2
CN19B Printed circuit board 2
HA Not used
Switch indication
DSW3 Capacity code
DSW4 Unit model code
DSW5, RSW2 Refrigerant cycle number
DWS6, RSW1 Indoor unit number settings
DSW7 Fuse re-establishing
DSW9 Not used
For RPK-(2.0-4.0)FSN3M
C A U T I O N
Turn off the power supply before setting the DIP switches. If not, the settings will not be valid.
N O T E
• Thesymbol“■”indicatesthepositionoftheDIPswitches.Theguresshowthesettingbeforetransmission
or after selection.
• Ifthe■markisnotdisplayed,thisindicatesthatthepositionofthepinisnotaffected.
