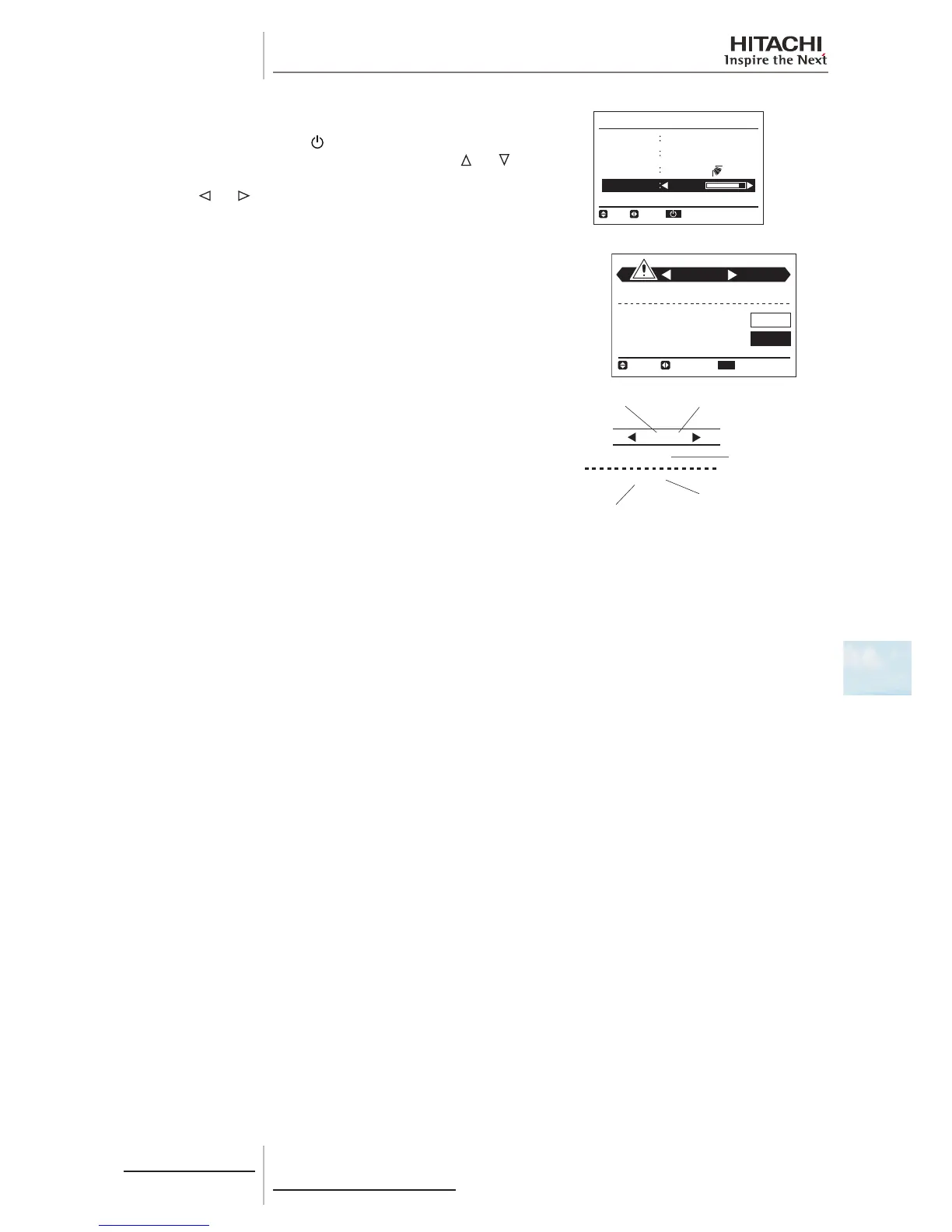

7 Test run
249
7
SMGB0077 rev.0 - 01/2013
(9) To nish the test run, press ” (run/stop) again or pass over the
set test run time. When changing the test run time, press “
” or “ ” to
select “T-RUN TIME”. Then, set the test run time (30 to 600 minutes)
by pressing “
” or “
Test Run: 2 units
MODE
SPEED
MED
COOL
LOUV.
SEL. ADJ
T-RUN TIME
510MIN
STOP
The RUN indicator on the remote control switch ashes when
some abnormalities such as protection devices activated occur
during the test run as well as the RUN indicator (orange) on
the indoor unit flashes (0.5 second ON/ 0.5 second OFF).
Additionally, the alarm code, the unit model code and connected
number of indoor units will be displayed on the LCD as shown
in the figure below. If the RUN indicator on PC-ARF flashes
(2 seconds ON/ 2 seconds OFF), it may be a failure in the
transmission between the indoor unit and the remote control
switch (loosening of connector, disconnecting wiring or breaking
wire, etc.). In this case, check the item 8.3 “Alarm Code” and
perform for troubleshooting. Consult to authorized service
engineers if abnormality can not be recovered.
SEL. OP MODE
MODEL : b .02
Alarm Code:
22
01-02
ALM RST
ADDR
ENT.
OK
Refrigerant Cycle No.
of Indoor Unit which
Abnormality Occurs
Indoor Unit No.
which Abnormality Occurs
MODEL : b . 02
Alarm Code:
22
Alarm Code No.
Total No. of Indoor Unit in
Same Refrigerant Cycle as
One that Abnormality Occurs
01 - 02
Unit Model Code
