10 Servicing
365
10
SMGB0077 rev.0 - 01/2013
Flat Panel
Remove this part
from the hole.
Extend the shaft
in the direction of
the arrow.
Screw
Bush
Catches on
Lower Side of
Front Panel
Drain Pan’ s Projection
Portion for Catches
Do not apply an excessive force to the catches.

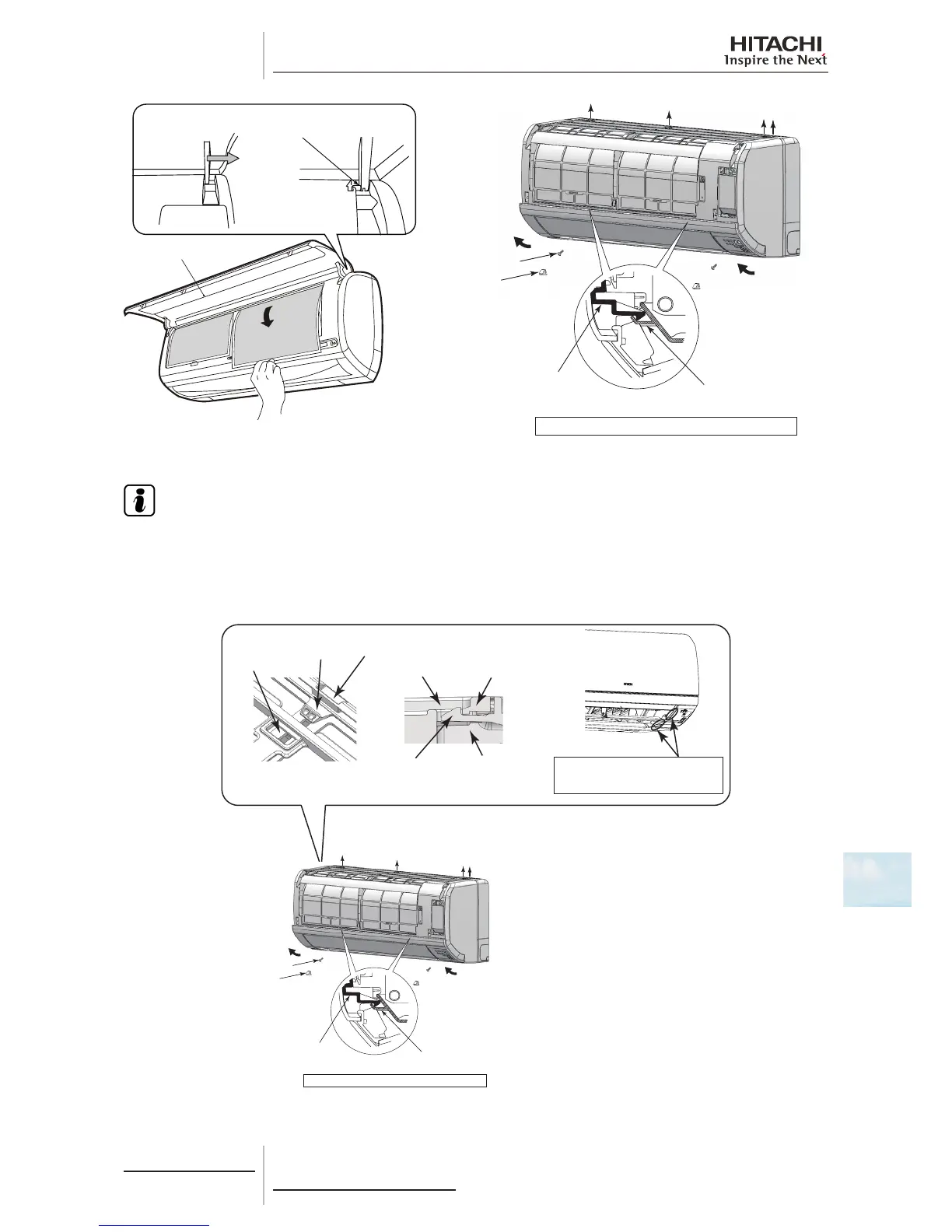

5 When mounting the front panel, îš¿rstly attach the air outlet side of the panel to the unit and then put the catches (four
portions) on the upper side of the unit into the holes on the panel. Push the lower side of the panel to fasten the catches.
N O T E
Make sure that there is no gap nor lap between the front panel and the right side of the drain pan. If there is a gap there,
an air leakage and dew condensation may occur and the dew may drop on the front panel.
6 Tighten 2 screws and attach 2 bushes. And then mount the air îš¿lter.
7 Insert the arm shafts on both sides of the at panel into the holes on the unit body, along the guide of the front panel.
After the at panel is attached properly, close the at panel.
Catch
Catch
Hole for Catch
Hole for Catch
Front Panel
Indoor Unit Body
Indoor Unit Body
Make sure that there is no gap
nor lap between the front panel
and the right side of the drain pan.
Screw
Bush
Catches on
Lower Side of
Front Panel
Drain Pan’ s Projection
Portion for Catches
Do not apply an excessive force to the catches.
To Next Page
