2 Unit installation
34
SMGB0077 rev.0 - 01/2013

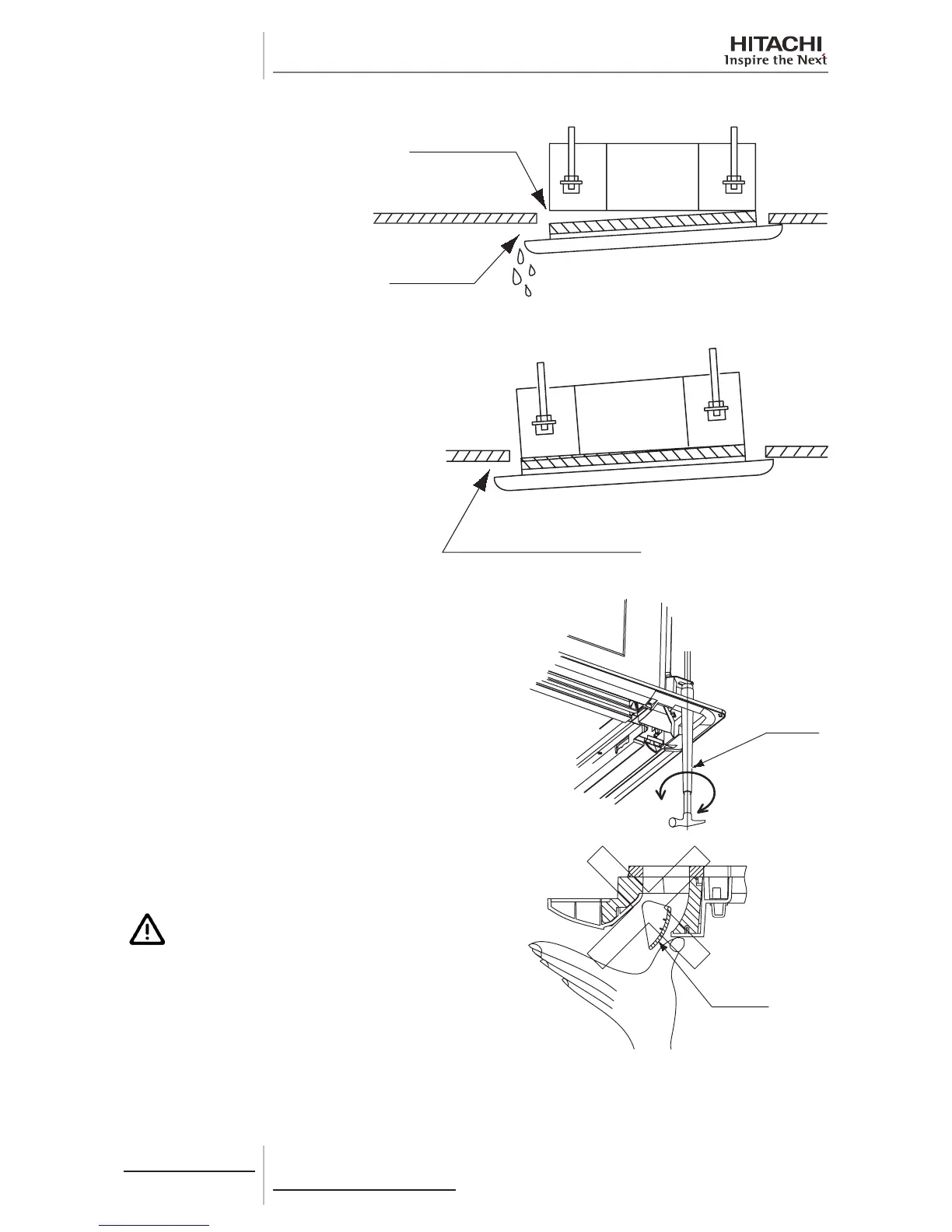

Considerations following air panel installation
Tighten the long bolts appropriately.
Otherwise, installation faults may be
caused.
Readjust the height of the indoor unit if gaps are seen around it.
Use long bolts and nuts for readjustment, as indicated below.
Once the air panel is installed, the nal height of the indoor unit
can be adjusted using a wrench through the corner cover.
Excessively adjusting the height leads to condensation leaks from
the drain pan.
C A U T I O N
Do not move the air louver by hand.
The drive mechanism may be damaged.
Louver
Air leakage
Smudge
Dewing
No gap shall exist
Wrench
