LAN 1~4 Off No device is connected to the relevant LAN port.
Green, blinking A device is connected to the relevant LAN port via a
Fast Ethernet (100Mbps) link, and is transmitting or
receiving data.
Green, steady A device is connected to the relevant LAN port via a
Fast Ethernet (100Mbps) link, but is not transmitting
or receiving data.
Blue, blinking A device is connected to the relevant LAN port via a
Gigabit Ethernet (1000Mbps) link, and is
transmitting or receiving data.
Blue, steady A device is connected to the relevant LAN port via a
Gigabit Ethernet (1000Mbps) link, but is not
transmitting or receiving data.
Status Blinking The CGN2’s cable modem is registering with the
service provider’s CMTS.
On The CGN2’s cable modem has successfully
registered with the service provider and is ready for
data transfer.
US Green, blinking The CGN2 is searching for an upstream frequency
on the CABLE connection.
Green, steady The CGN2 has successfully located and locked
onto an upstream frequency on the CABLE
connection.
Blue The CGN2 is engaged in channel bonding on the
upstream connection.
Off There is no upstream activity on the CABLE
connection.
DS Green, blinking The CGN2 is searching for a downstream
frequency on the CABLE connection.
Green, steady The CGN2 has successfully located and locked
onto a downstream frequency on the CABLE
connection.
Blue The CGN2 is engaged in channel bonding on the
downstream connection.
Off There is no downstream activity on the CABLE
connection.
Power On The CGN2 is receiving power.
Off The CGN2 is not receiving power.

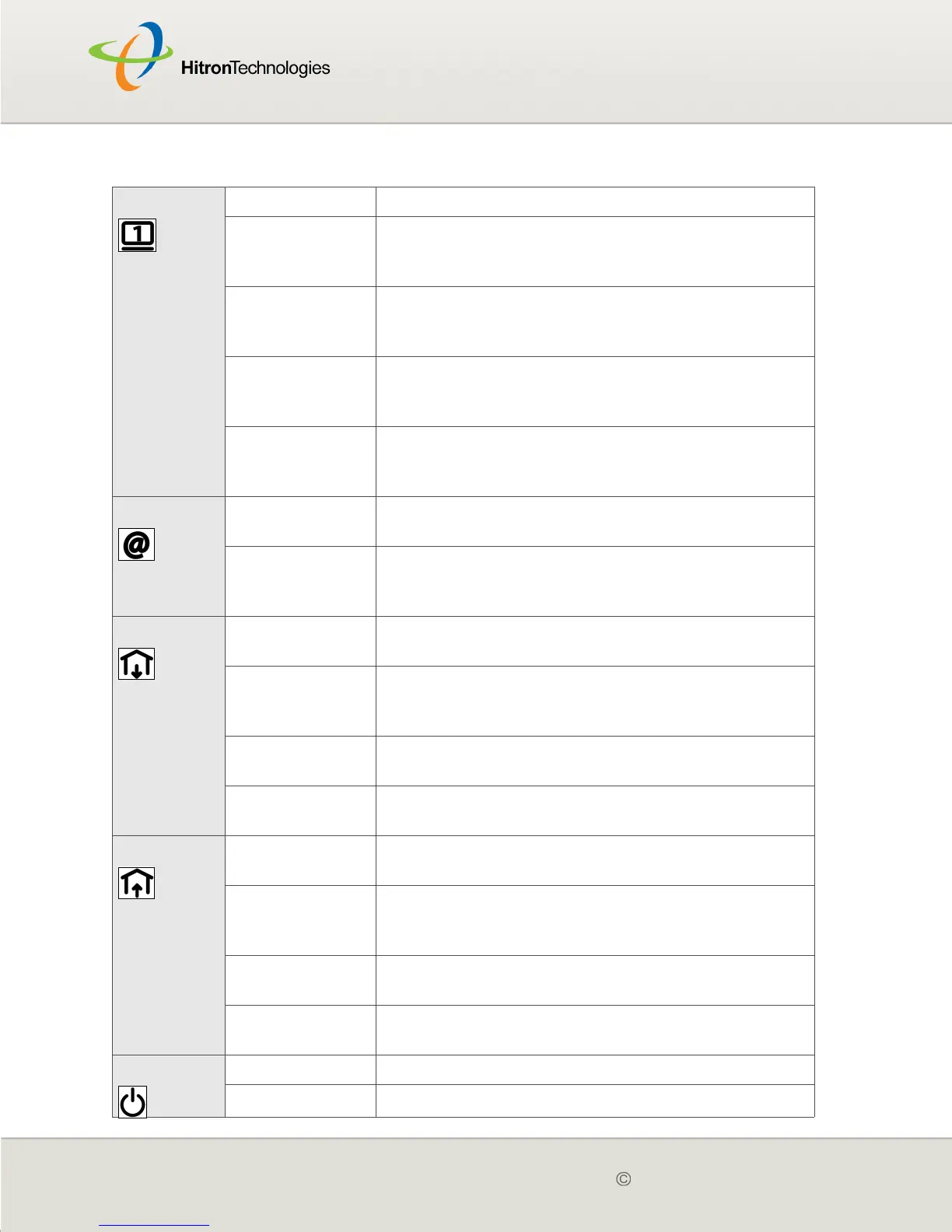

Table 3: LEDs
