Hobart Multi-Handler 200 - Miscellaneous Symbols and Definitions

OM-285922 Page 10

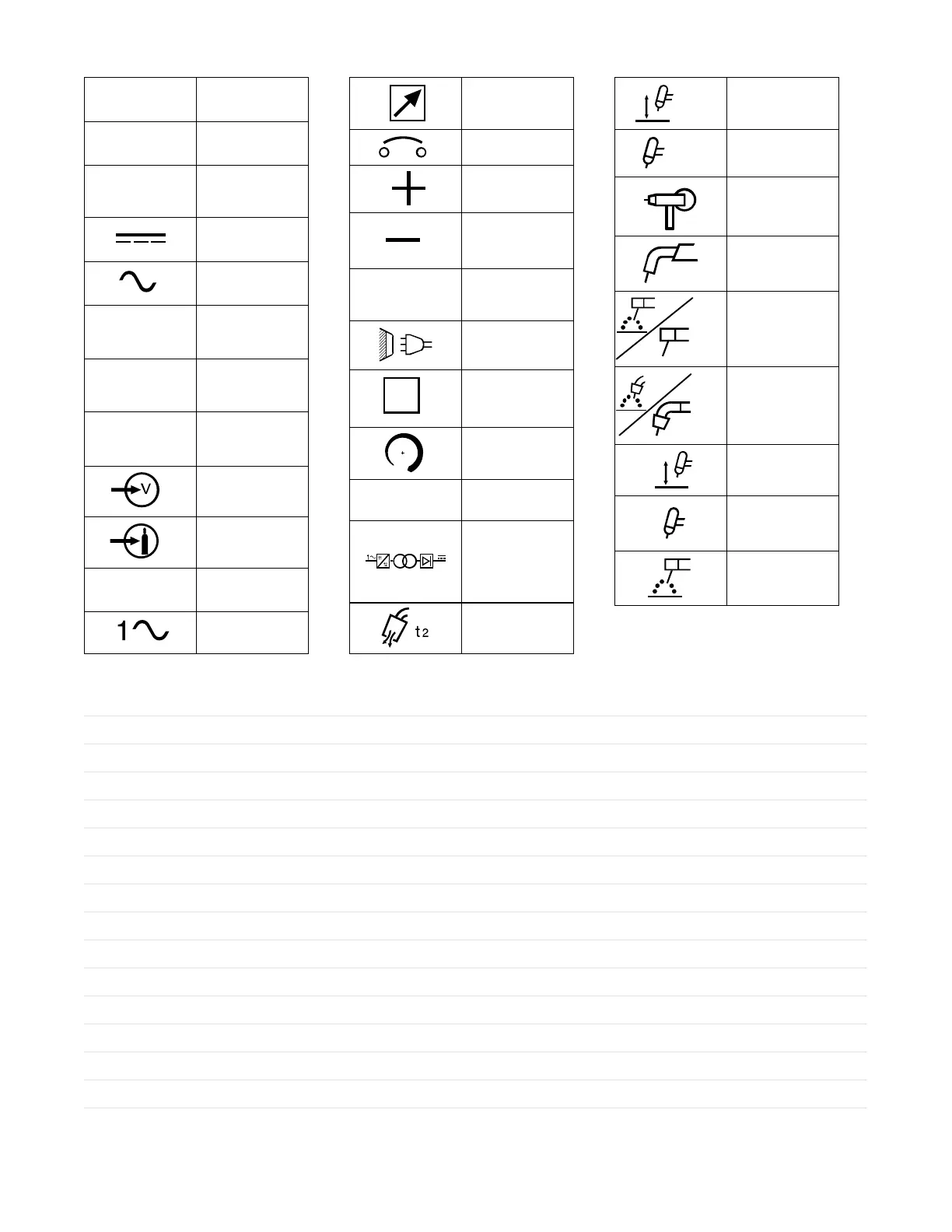

3-2. Miscellaneous Symbols And Definitions
A
Amperage
V
Voltage
U
0
Rated No Load
Voltage (OCV)
Direct Current
(DC)
Alternating
Current (AC)
U
1
Primary Voltage
U
2
Conventional
Load Voltage
I
2
Rated Welding
Current
Input Power Or In-
put Voltage
Gas Input
IP
Internal Protection
Rating
Single Phase
Remote
Circuit Breaker
Positive
Negative
X
Duty Cycle
Line Connection
S
Suitable for Some
Hazardous
Locations
Increase
Hz
Hertz
Single Phase
Static Frequency
Converter-
Transformer-
Rectifier
Gas Postflow
Lift-Arc Operation
(GTAW)
Gas Tungsten Arc
Welding
Wire Feed Spool
Gun
Self-Shielded Flux
Cored Arc
Welding (FCAW)
Shielded Metal
Arc Welding
(SMAW)
Gas Metal Arc
Welding (GMAW)
Lift Arc (GTAW)
TIG / Remote
Gas Tungsten Arc
Welding (GTAW)
Torch
Shielded Metal
Arc Welding
(SMAW)
