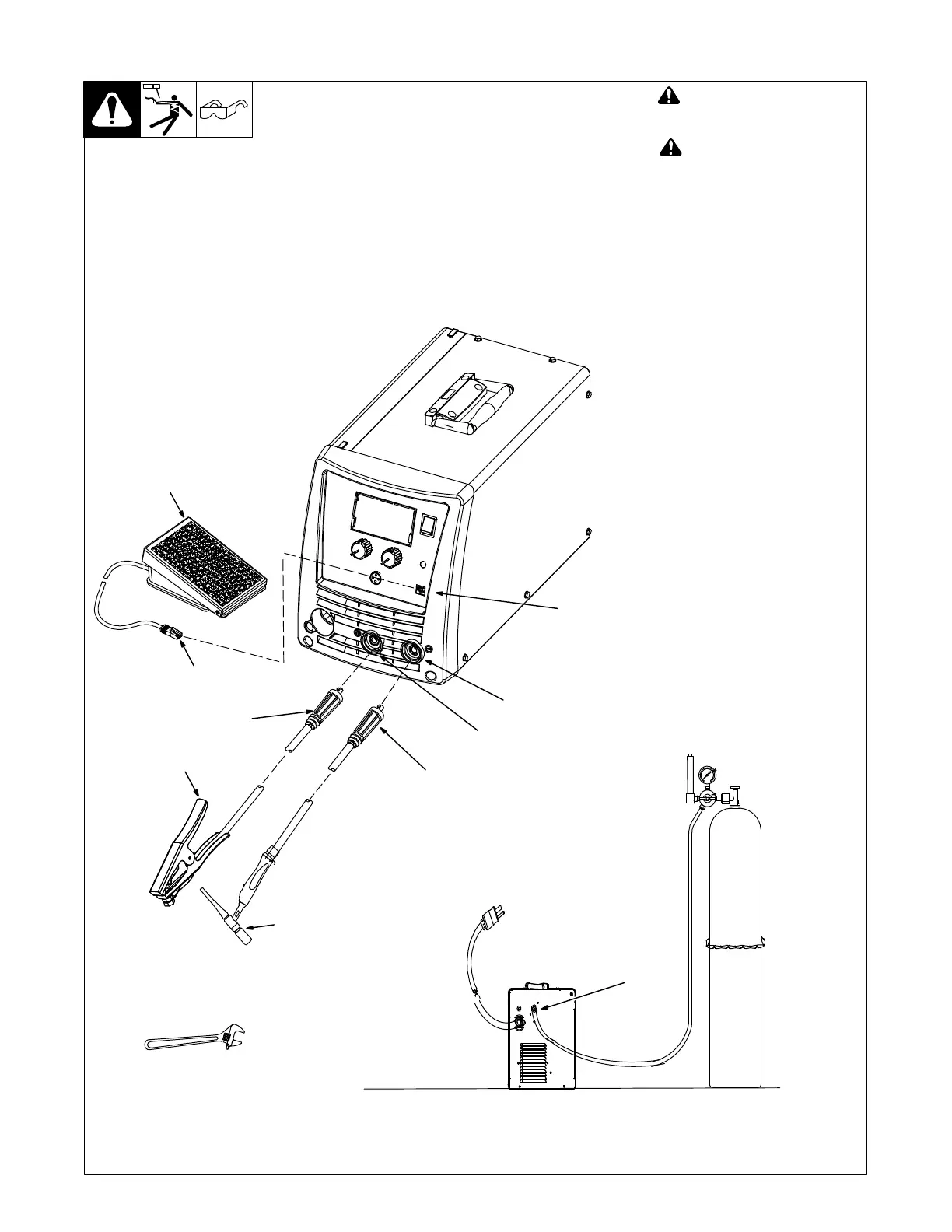

5-9. TIG Welding Connections
Ref. 287758A / Ref. 282719A
! Turn off unit and disconnect
input power before making
connections.
! Do not use worn, damaged,
undersized, or repaired ca-
bles.
1 Negative (−) Weld Output
Terminal
2 Positive (+) Weld Output
Terminal
3 TIG Torch And Cable
4 Work Clamp And Cable
Connect TIG torch cable to the neg-
ative receptacle and connect work
cable to the positive receptacle.
Turn connectors clockwise.
Ensure all connections are tight.
5 Optional Foot Control with
RJ-45 connector
6 RJ-45 Remote Control
Receptacle
Connect foot control to remote
control receptacle.
7 TIG Shielding Gas
Connection
Use Argon gas for TIG welding (see
Section 5-13).
2
1
3
4
6
7
3
4
Tools Needed:
5
5
