6-5. Controls, Flux Cored Mode (Menu 2 Of 5)
1 Process Select Button
Push button to enter Flux-cored
process. Check weld parameter
chart for correct polarity at positive
(+) and negative (−) receptacles.
See section 5-11 for proper cable
placement.
2 Voltage Knob
Adjust voltage knob per weld pa-
rameter chart for initial setting.
3 Wire Feed Knob
Adjust wire feed knob per weld pa-
rameter chart for initial setting.
4 Display
5 Live Output Signal
. When the symbol is activated
on the display the output is on.
The output is on in the Flux-cored
process when the trigger on the
MIG gun is activated.

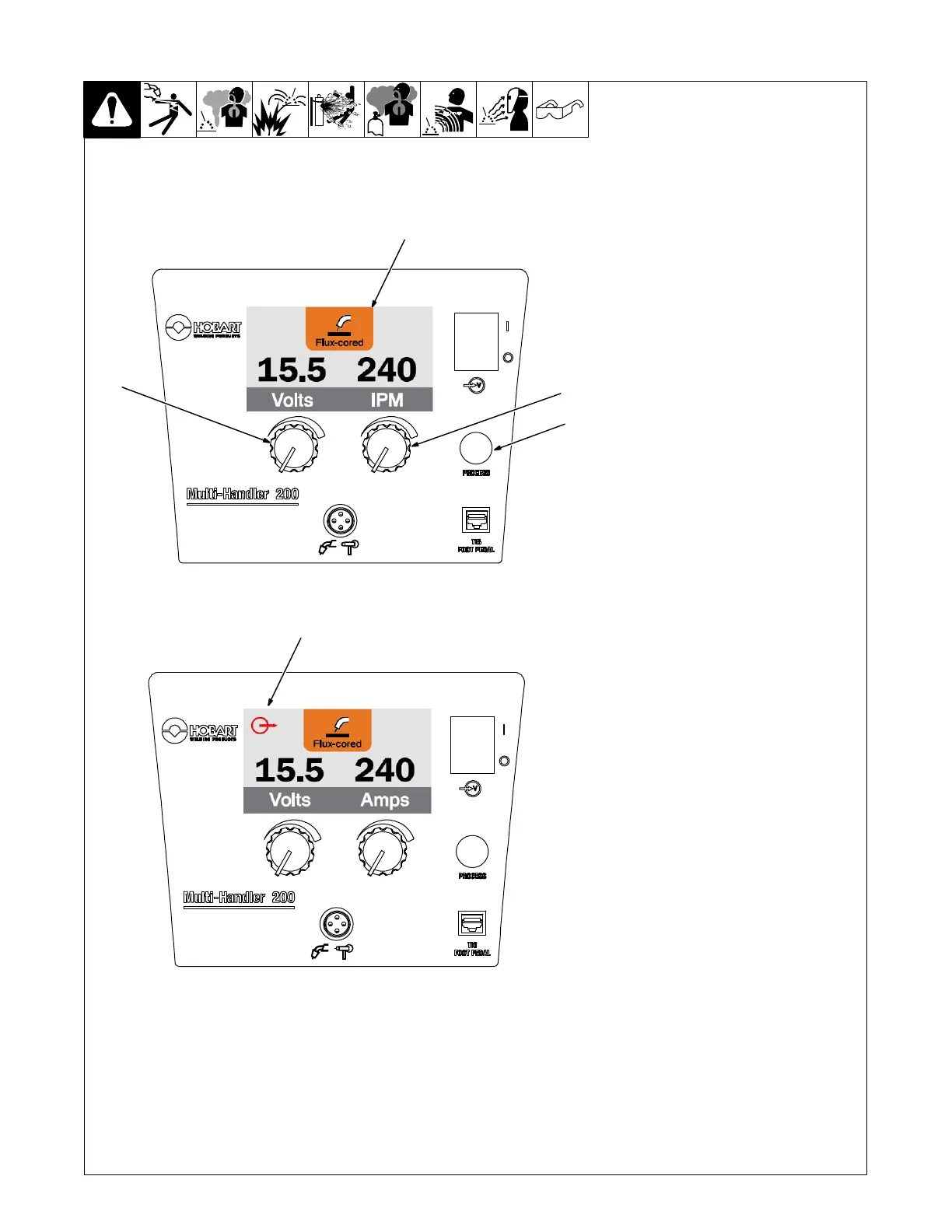

Ref. 287758-A
