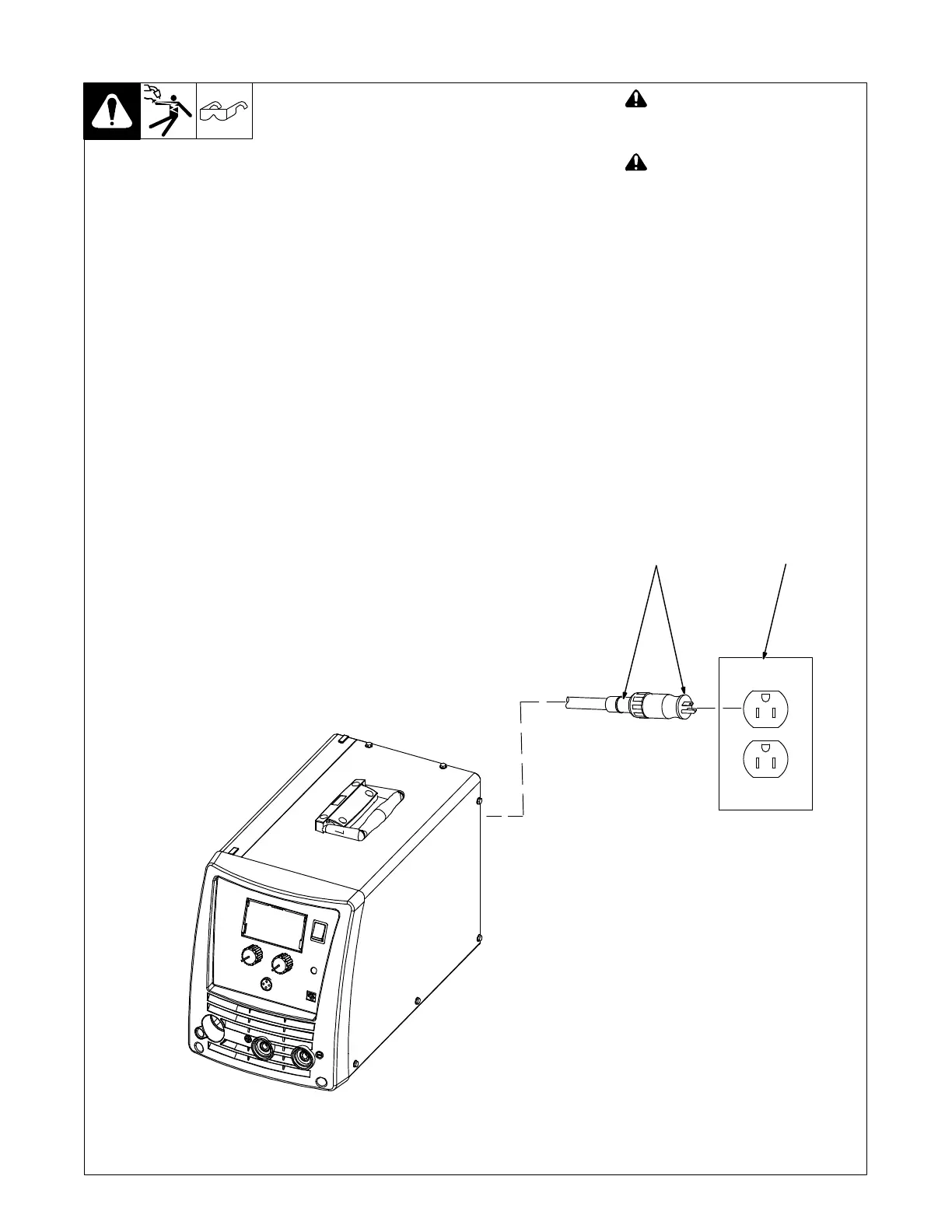

5-5. Connecting 120 Volt Input Power
1
! Installation must meet all
National and Local Codes − have
only qualified persons make this
installation.
! Special installation may be
required where gasoline or volatile
liquids are present − see NEC
Article 511 or CEC Section 20.
See rating label on unit and check input
voltage available at site.
For 120 volts AC input power, a 15 or 20
ampere individual branch circuit protected
by time-delay fuses or circuit breaker is
required.
1 Multi-Voltage Plug And Power Cord
Connector (NEMA Type 5−15P Plug
Shown)
For multi−voltage plug connections, see
Section 5-2.
2 Receptacle − NEMA Type 5−15R
(Customer Supplied)
2
