OM-285922 Page 24
5-10. Process/Polarity Table
Process Polarity
Cable Connections
Wire Drive Assembly Cable Work Cable
GMAW Solid wire with shielding gas DCEP Reverse polarity Connect to positive (+)
output receptacle
Connect to negative ()
output receptacle
FCAW Self-shielding wire no
shielding gas
DCEN Straight Polarity Connect to negative ()
output receptacle
Connect to positive (+)
output receptacle

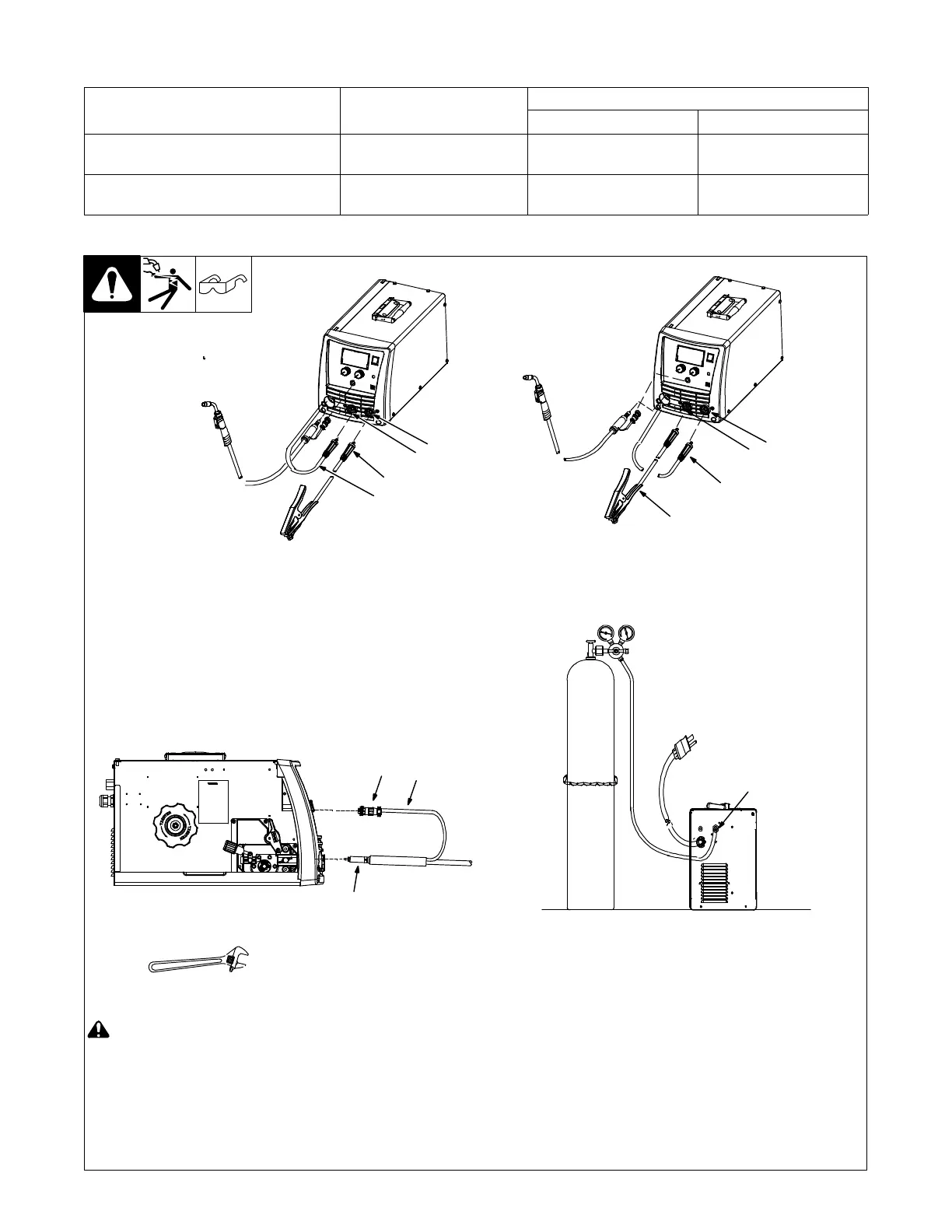

5-11. MIG Welding Connections
Ref. 287758-A / Ref. 275167A / Ref. 275168A
! Turn off unit and disconnect input
power before making connections.
1 Positive Weld Output Receptacle
2 Negative Weld Output Receptacle
3 Wire Drive Assembly Cable
4 Work Clamp And Cable
Ensure all connections are tight.
5 Gun End
Connect gun end to drive assembly (see
Section 5-12).
6 Trigger Control Cable
7 Four Pin Trigger Control Cable
Receptacle
Connect plug on end of cable to four pin
receptacle on front of unit.
8 MIG Shielding Gas Connection
Use 75/25 mix or CO
2
shielding gas for
solid wire. Use Argon shielding gas for
aluminum wire with spool gun (see Section
5-13).
MIG DCEP
(Direct Current Electrode Positive)
Flux-Cored DCEN
(Direct Current Electrode Negative)
1
4
3
2
1
4
3
2
8
6
7
5
Tools Needed:
