OM-285922 Page 35

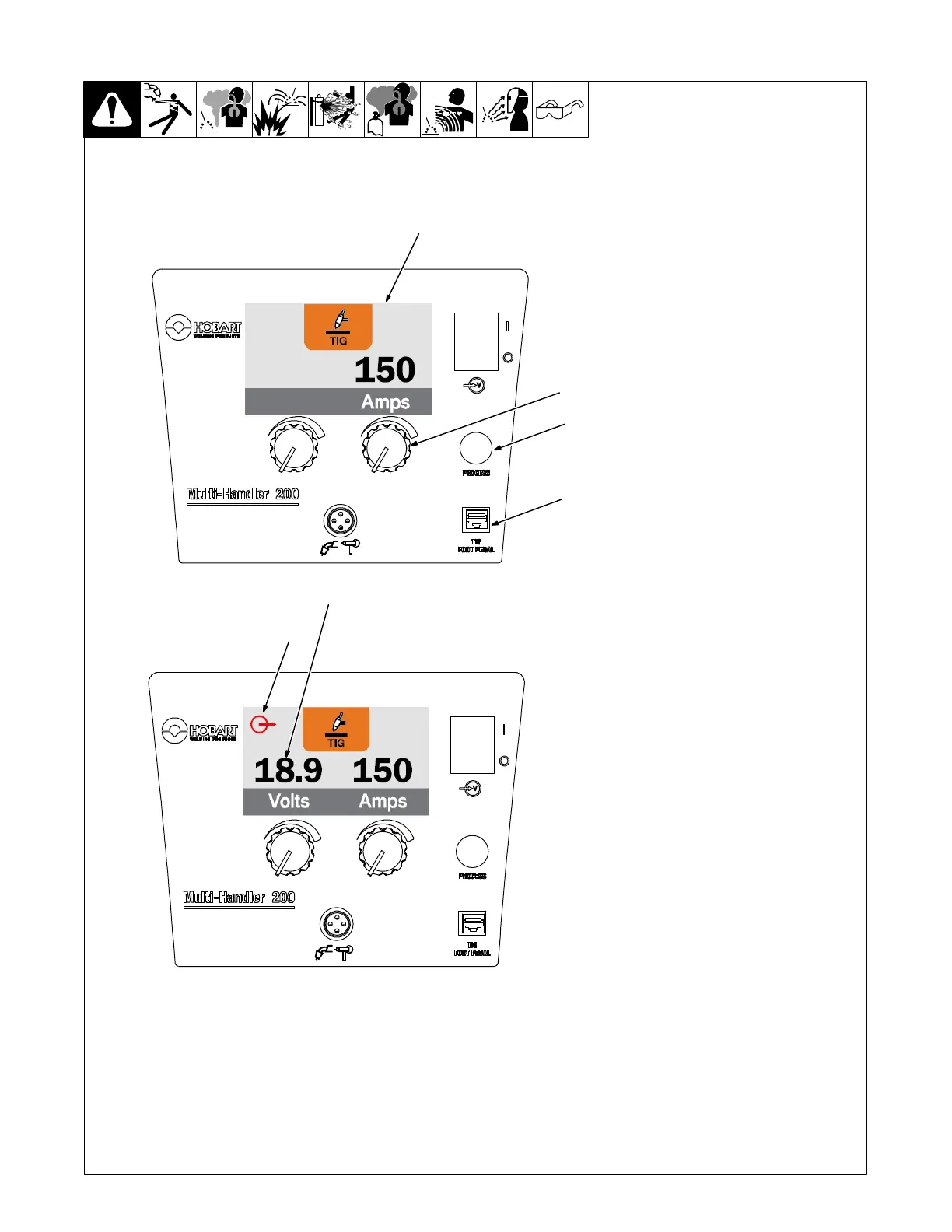

6-7. Controls, TIG Mode With Foot Pedal(Menu 4 Of 5)
1 Process Select Button
In the TIG process when the option-
al foot control is being used, the out-
put is controlled by the foot pedal.
Push button to enter TIG process.
Check weld parameter chart for
correct polarity at positive (+) and
negative (−) receptacles.
See section 5-9 for proper cable
placement.
2 TIG Foot Pedal Connection
3 Amperage Knob
Adjust amperage knob per weld pa-
rameter chart for initial setting.
4 Display
5 Live Output signal
. When the symbol is activated
on the display the output is on.
6 Voltage Displayed
The voltage is displayed only during
welding.
Ref. 287758-A
1
2
3
4
6
5
To Next Page
