OM-285922 Page 36

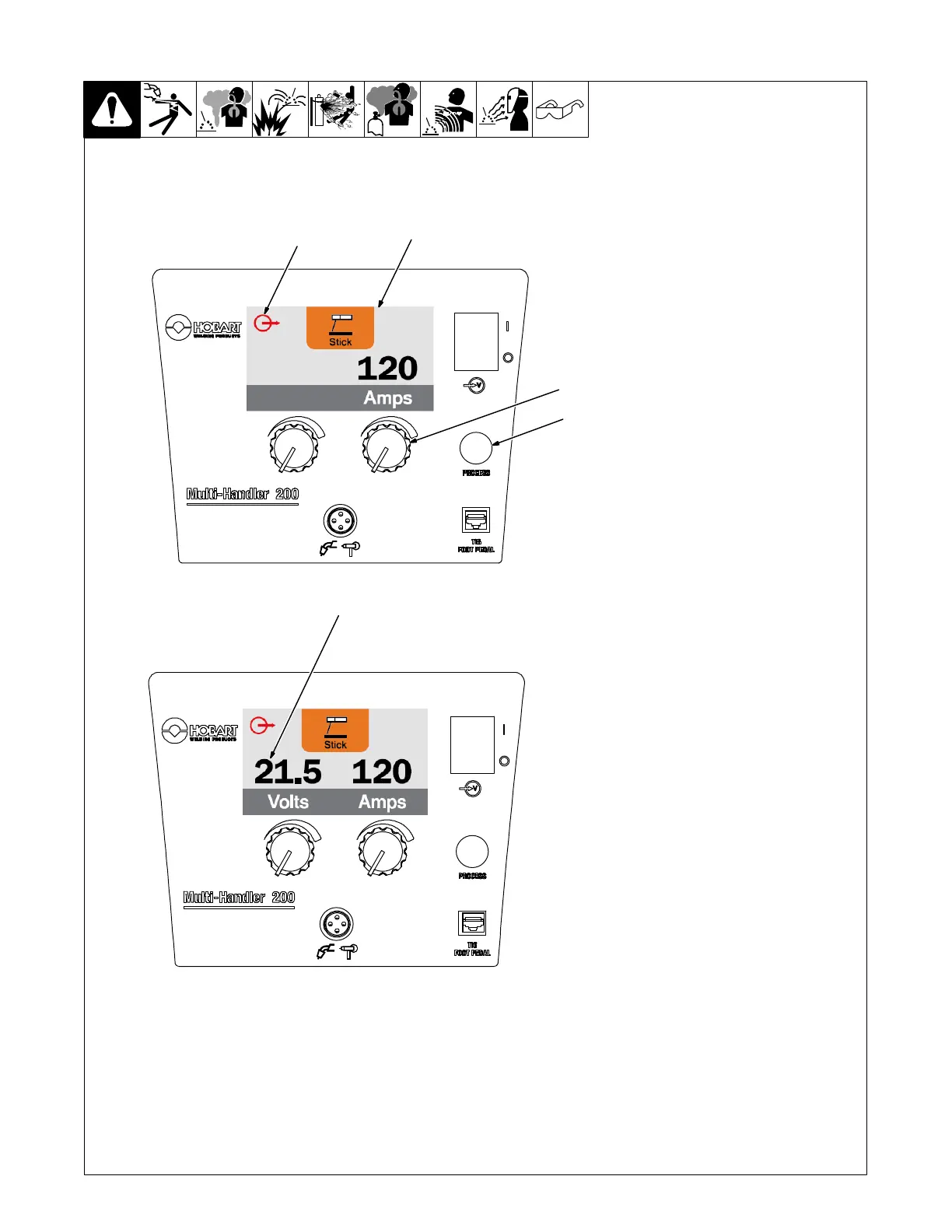

6-8. Controls, Stick Mode (Menu 5 Of 5)
1 Process Select Button
Push button to enter Stick process.
Check weld parameter chart for
correct polarity at positive (+) and
negative (−) receptacles.
See section 5-8 for proper cable
placement.
2 Amperage Knob
Adjust amperage knob per weld pa-
rameter chart for initial setting.
3 Display
4 Live Output signal
. When the symbol is activated
on the display the output is on.
The output is always on when the
Stick process is selected.
5 Voltage Displayed
The voltage is displayed only during
welding.
Ref. 287758-A
1
2
3
4
5
