Hobart Multi-Handler 200 User Manual

OM-285922 Page 28

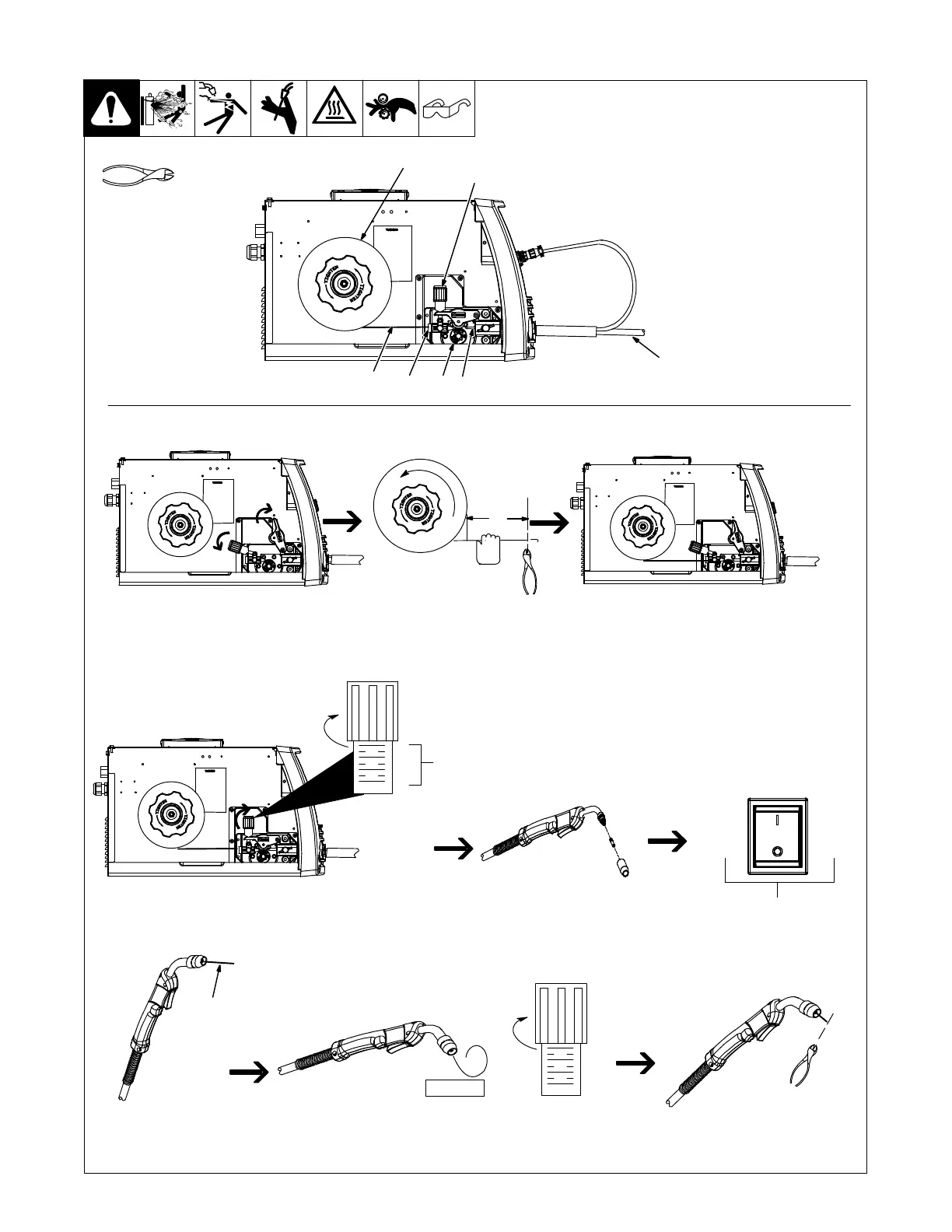

5-15. Threading Welding Wire
1 Wire Spool
2 Welding Wire
3 Inlet Wire Guide
4 Pressure Adjustment Knob
5 Drive Roll
6 Gun Input Liner
7 Gun Conduit Cable
Lay gun cable out straight.
Tools Needed:
. Hold wire tightly to keep it
from unraveling.
WOOD
Open pressure assembly. Pull and hold wire; cut off end. Push wire through guides into gun;
continue to hold wire.
Close and tighten pressure
assembly, and let go of wire.
Remove gun nozzle and contact tip. Turn On.
Press gun trigger until wire
comes out of gun. Reinstall
contact tip and nozzle
Feed wire to check drive roll pressure.
Tighten knob enough to prevent slipping.
Cut off wire. Close
and latch door.
Ref. 287758A / 275167A / 801 083 / Ref. 800 924-D
Tighten
1
2
3
4
Pressure
Indicator
Scale
Tighten
1
2
3
4
7
. Use pressure indicator scale to set a desired
drive roll pressure. Begin with a setting of 2.
If necessary, make additional adjustments
after trying this initial setting.
4
5
2
1
3
6
6 in.
(150 mm)
