USER INTERFACE
3.36
ThinPrep
®
Integrated Imager Operator’s Manual
Using the
Next
function on the hand control, the user initiates the scan motion, which is a series of
discrete, overlapping fields of view. The Auto Scan stops at each field of view and remains there until
the user presses the
Next
function again.
Note:
The
Next
and
Previous
functions are also available as buttons on the touch screen.
The movement of the stage speed from field of view (FOV) to field of view may be adjusted faster or
slower by repeatedly pressing the
-5
or
+5
buttons to slow or increase the speed. (Figure 3-55.)
To preview the setting, press the
Done
button, and then press the
Preview
button on the User
Preferences screen.
To view the selection through the eyepieces, load a slide in the slide holder for reference, and press
the
Preview
button. Observe how the stage advances each time the review control is scrolled forward
(Next) or backward (Previous).
In between stage movements, the X- and Y-axis stage controls are available to move about the cell
spot. Upon resuming, the field of view will return to the part of the cell spot where you left off, and
the scan will resume along the row.
Press the
Cancel Scan
button on the touch screen to stop the preview.
The display on the touch screen is shown below.

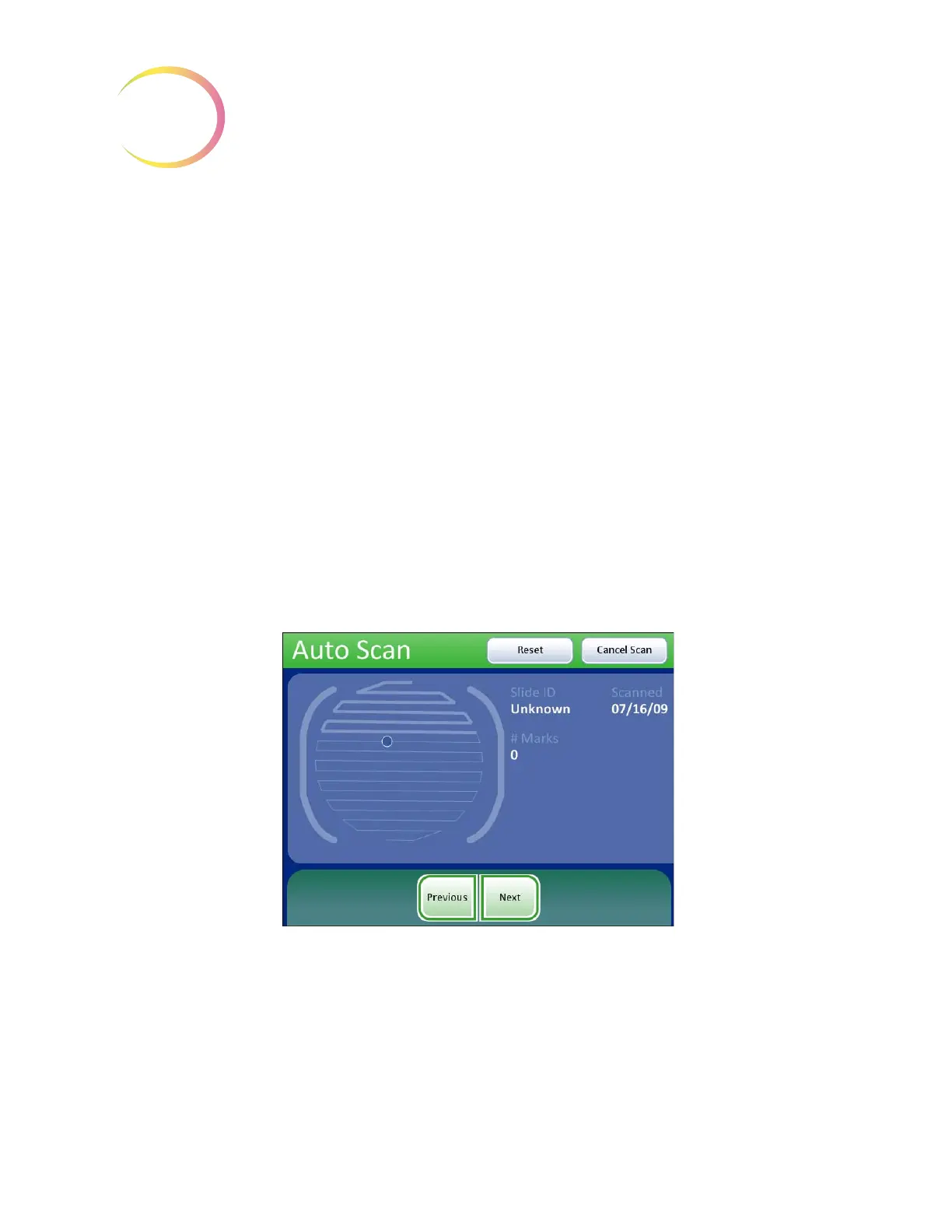

Figure 3-56 Semiautomatic Scan Mode Preview
Continue to adjust and preview the stage speed until it is satisfactory. Press the
Done
button to save
the settings and return to the User Preferences screen.
Scan is always paused. It only advances when the
Next
or
Previ-
ous
function is activated via review control or touch screen.
