Trident HD Specimen Radiography System User Guide
Chapter 3: Components, Controls, and Indicators
MAN-05478-002 Revision 003 Page 15
3: Components, Controls, and Indicators
3.1 System Components

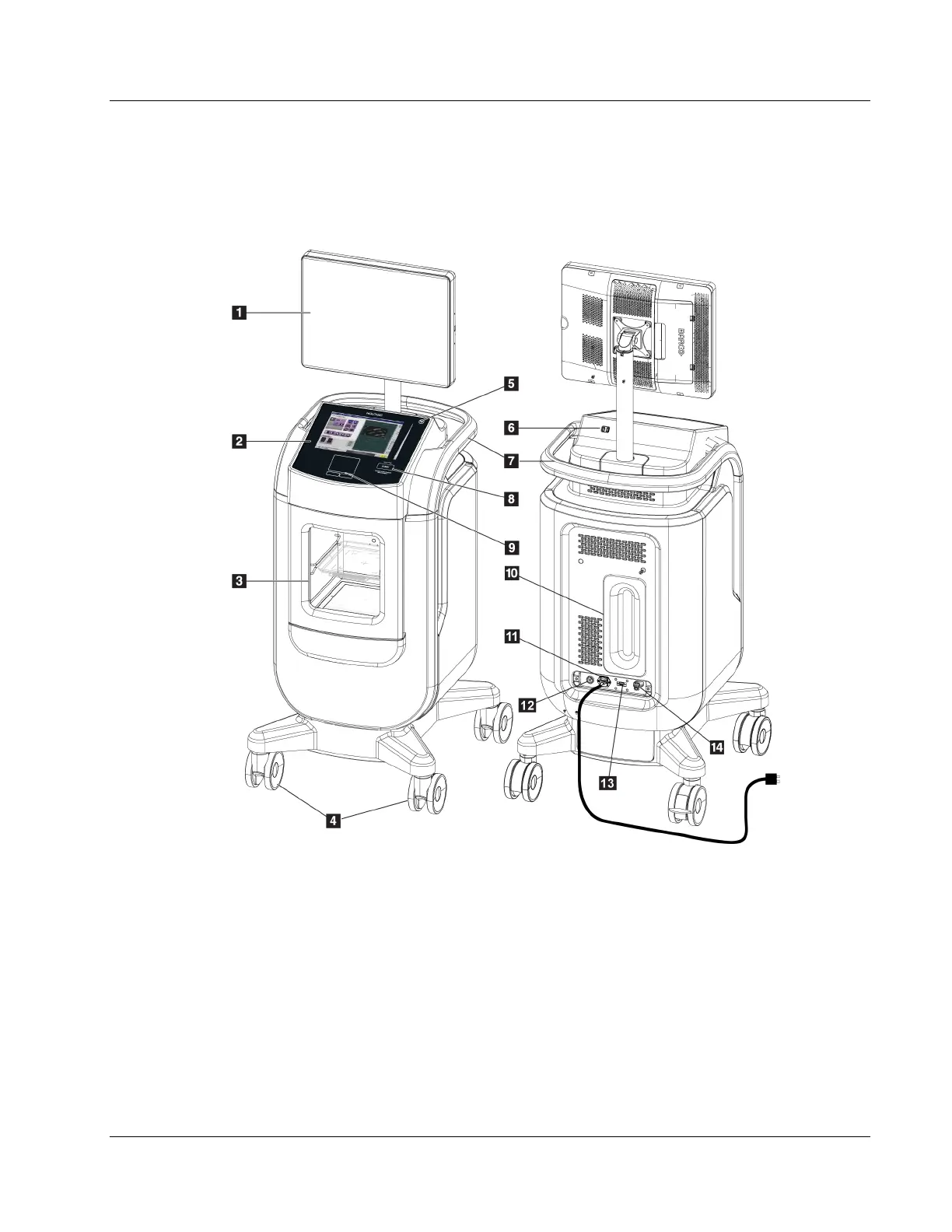

Figure 3: System Components
Figure Legend
1. Image Display Monitor
2. Control Display
3. Imaging Cabinet
4. Casters
5. Computer Power On/Restart Button
6. USB Ports
7. Console Handle
8. X-RAY Activation Button
9. Touchpad
10. Cord Management Plate
11. System Power Switch and Power Cord
Connection
12. Potential Equalization Connection
13. Service Port
14. Ethernet Port
15. [Bar Code Scanner]
