Trident HD Specimen Radiography System User Guide
Chapter 4: User Interface
Page 36 MAN-05478-002 Revision 003
4.3.2 Simple and Advanced Button
You can show a smaller or larger set of image review tools on the Tools tab. This button
toggles the set of tools that are displayed.
Select the Simple button to show the simplified version of the Tools tab with less image
review tools.

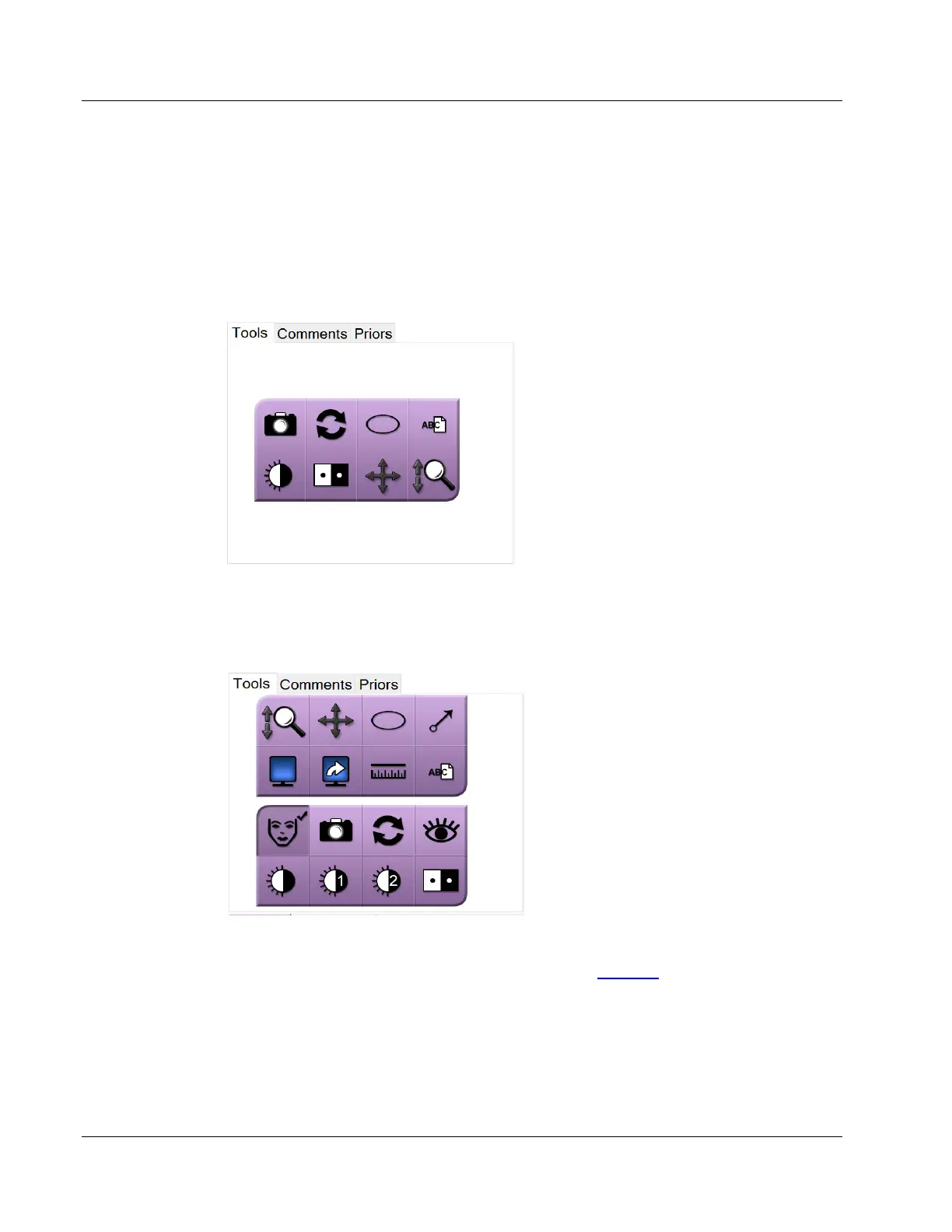

Figure 21: Tools Tab, Simple
Select the Advanced button to show the advanced version of the Tools tab with more
image review tools.
Figure 22: Tools Tab, Advanced
For information about the image review tools, refer to Tools Tab on page 46.
4.3.3 Retrieve
Select the Retrieve button to query the configured devices with the current patient
information. The Retrieve button performs the same function as the Query Retrieve
button in the Admin screen.
