2: General Information
2.1 System Description
The system components for x-ray generation are contained in the Shielded Cabinet. The
user interface for data entry, patient selection, and image acquisition and review is
mounted next to the Cabinet.

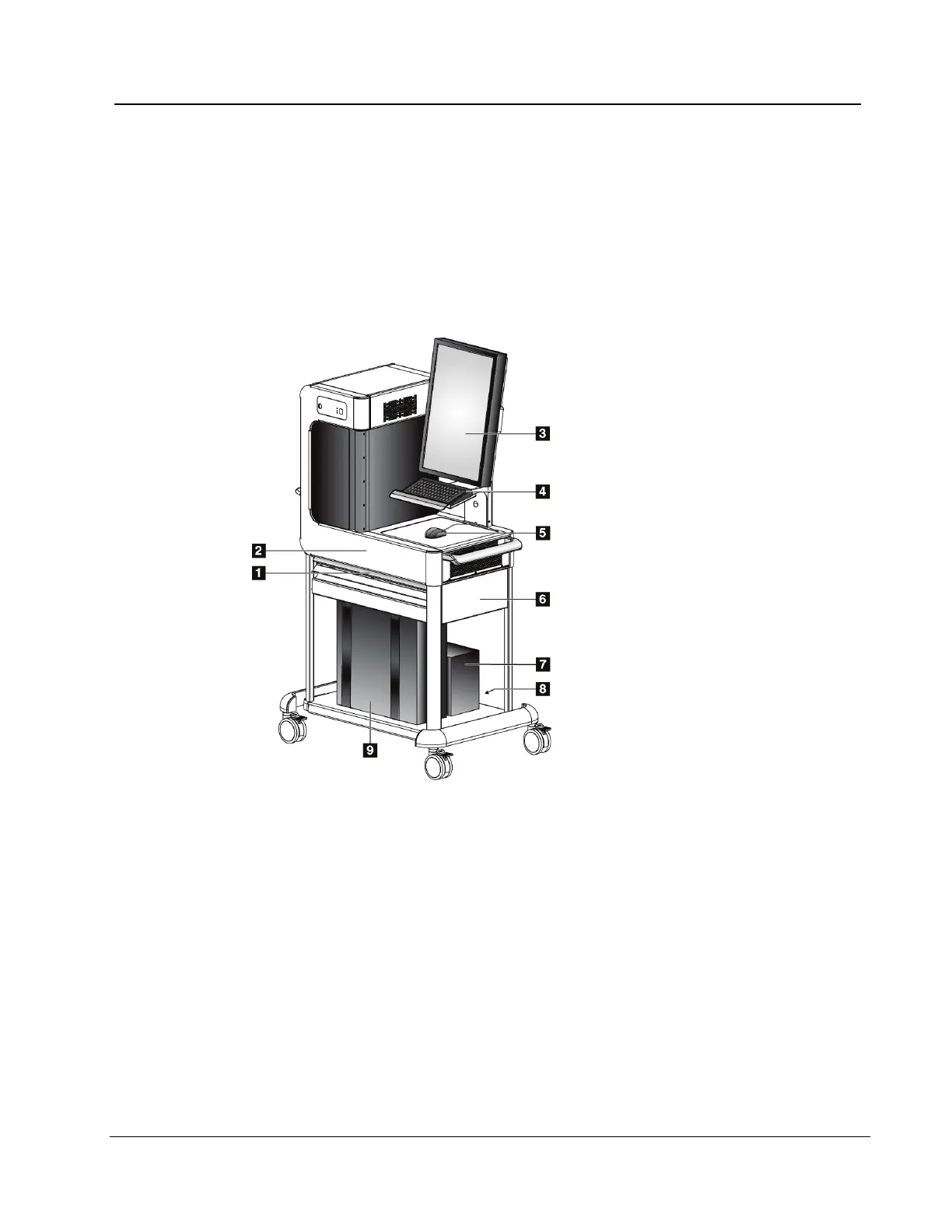

Figure 1: Trident System Components
Figure Legend
1. Work Surface (Slide-out)
2. Cabinet
3. Display
4. Keyboard
5. Mouse
6. Cart
7. UPS (Optional)
8. Power Strip
9. Computer
