Honeywell 30 Series User Guide

Introduction
3
Table 1-1 NVR Front Panel Description
Name Behavior Definitions
1. Network uplink
status/activity LED
Blinking Green Data is being transmitted or received.
OFF The Ethernet uplink is disconnected.
2. System status LED
Constant Green System ready.
Blinking Green every
1 second
Updating firmware or device pack.
Constant Red
1. S.M.A.R.T.-related disk errors.
2. A configured HDD is missing.
3. HDD is full. Buzzer will also be
sounded. When buzzer is turned off,
LED will return normal.
3. Power status LED
Solid Green The NVR is powered on.
OFF The NVR is powered off.
4. USB port

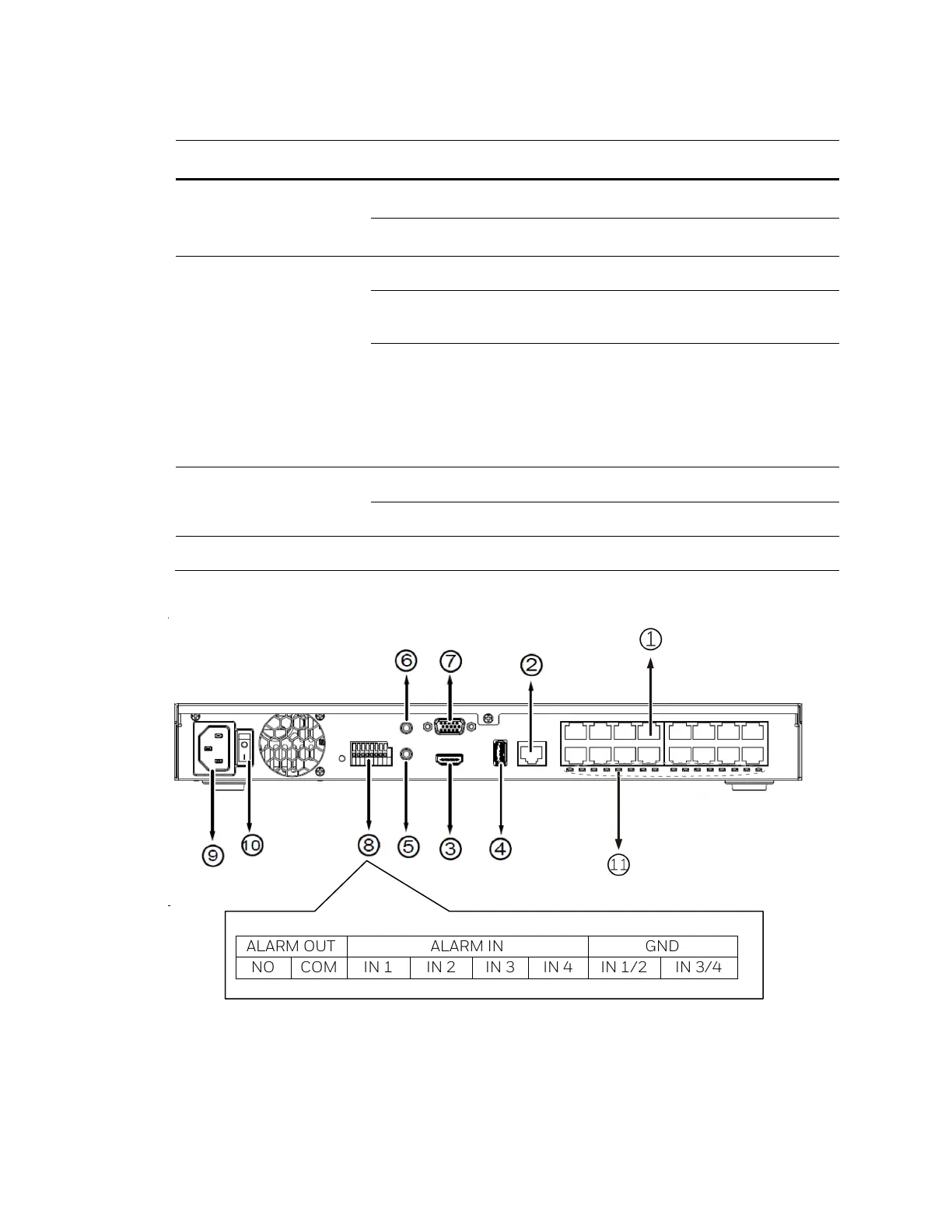

Figure 1-2 NVR Back Panel
ALARM OUT
ALARM IN
GND
NO COM IN 1 IN 2 IN 3 IN 4 IN 1/2 IN 3/4

Honeywell 30 Series Specifications

General

Video Compression	H.264
Series	30 Series
Category	Security Camera
Night Vision	Yes
Power Source	Wired
Motion Detection	Yes
Weather Resistance	Yes
Lens	Fixed
Storage	MicroSD card (up to 128GB)
