Honeywell 30 Series User Guide

Settings
45

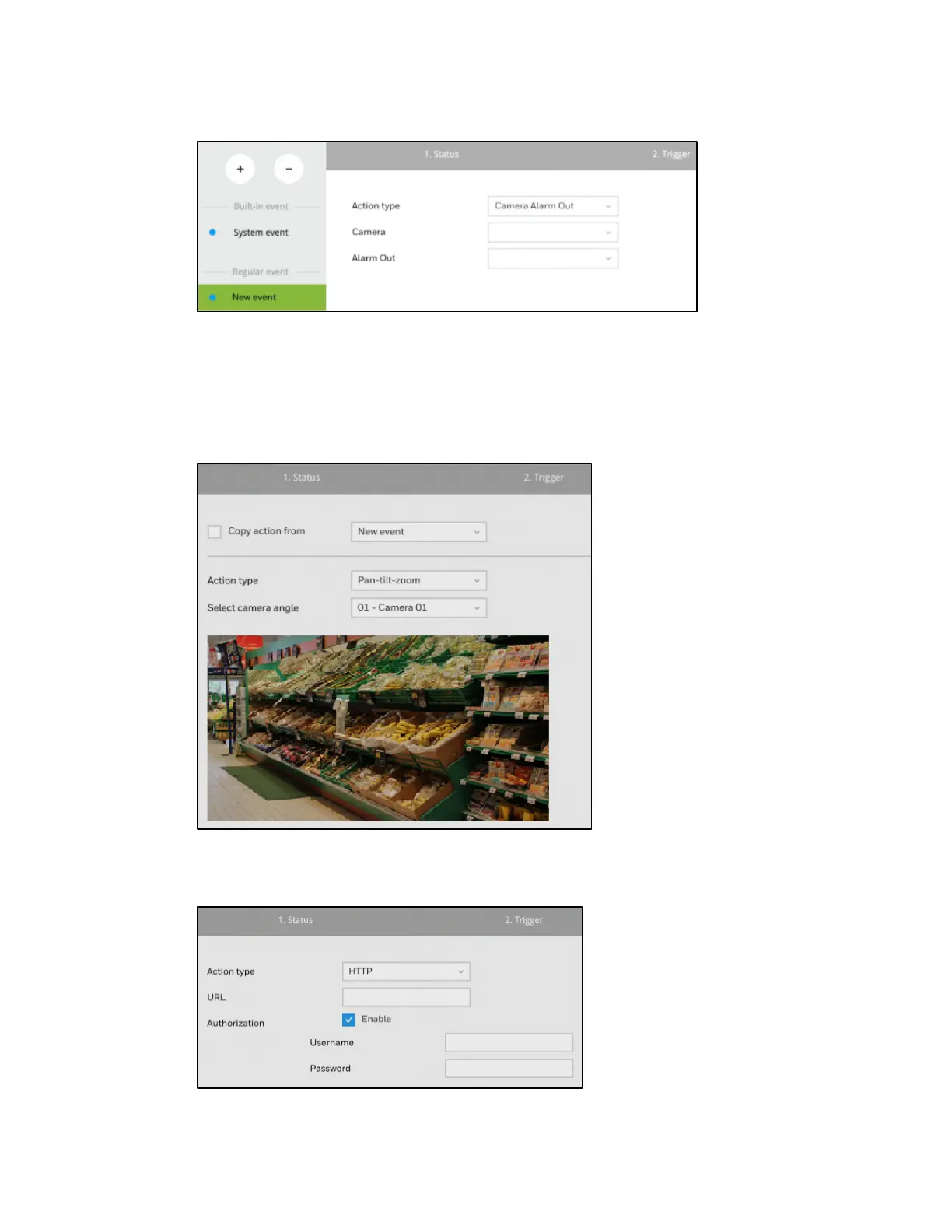

Figure 6-25 Camera Alarm Out Setup
Pan-tilt-zoom - A PTZ capable camera can move its lens to the preset position in case of
a triggered alarm. For example, a triggered sensor may indicate an area of interest has
been intruded, and a camera's field of view should be moved to cover that area. The
precondition is that you properly set up preset positions on your PTZ cameras using a
local or a web console.
Figure 6-26 Pan-tilt-zoom setup
HTTP - Select to send the media files to an HTTP server when a trigger is activated.
Figure 6-27 HTTP Setup

Honeywell 30 Series Specifications

General

Video Compression	H.264
Series	30 Series
Category	Security Camera
Night Vision	Yes
Power Source	Wired
Motion Detection	Yes
Weather Resistance	Yes
Lens	Fixed
Storage	MicroSD card (up to 128GB)
