30 Series Network Video Recorder User Guide
56

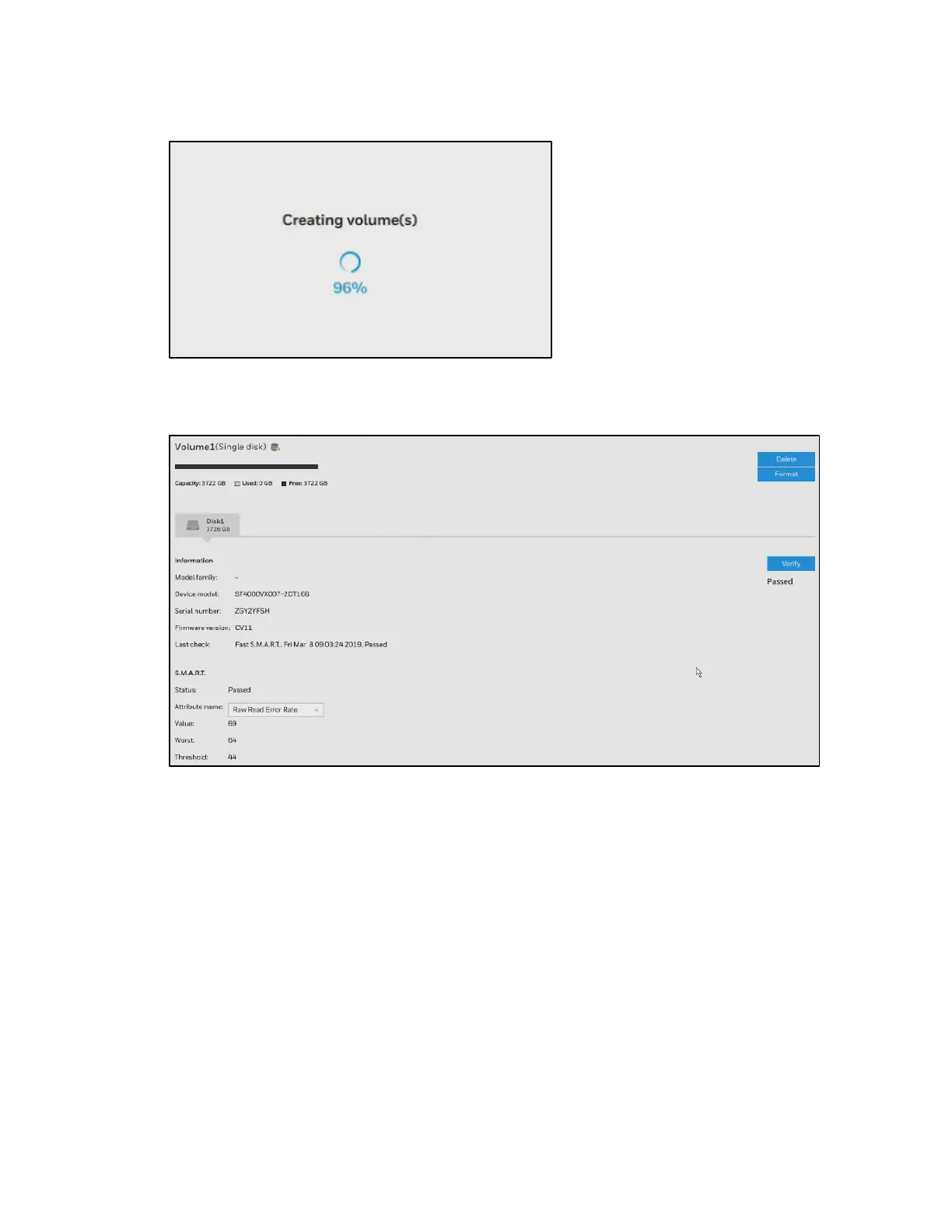

Figure 6-43 Creating Volume
When the creating is completed, the following window is displayed:
Figure 6-44 Volume
Repeat the above steps to create a new volume when you installed another disk.
The storage page displays the volume information including physical position, total capacity,
used and free space, and associated commands such as Format and Delete. Since each
volume contains only 1 hard drive, detailed information about the hard drive is also displayed
on this page.
You can format an existing storage volume in situations such as when you need to re-deploy
the system elsewhere.
Disk Information
Model family: The brand name of the HDD manufacturer.
Device model: The disk model name.
Serial number: Serial number assigned to the disk drive.
Firmware version: The version of firmware running on this disk drive.
Last check: The bad block check or S.M.A.R.T. test previously executed on this drive.
