31
Power on
Both AC power supply and DC power supply can be used in
ControlEdge PLC.
1. Connect 24 VDC supply or 120/240 VAC power supply to the
controller.
2. Connect an Ethernet cable to the CPM port most appropriate for
your situation.
3. Connect the other end of the Ethernet cable to the PC installed
ControlEdge Builder directly or through a switch.
ControlEdge 2020 platform
The Honeywell ControlEdge 2020 process controller is a modular,
powerful, and scalable system capable of all remote automation and
control applications. When combined with Experion® PKS and its
simplified SCADA configuration, it solves the remote automation
requirements.
ControlEdge RTU supports controller redundancy, Honeywell wired
and wireless I/O and enhanced Experion SCADA integration.

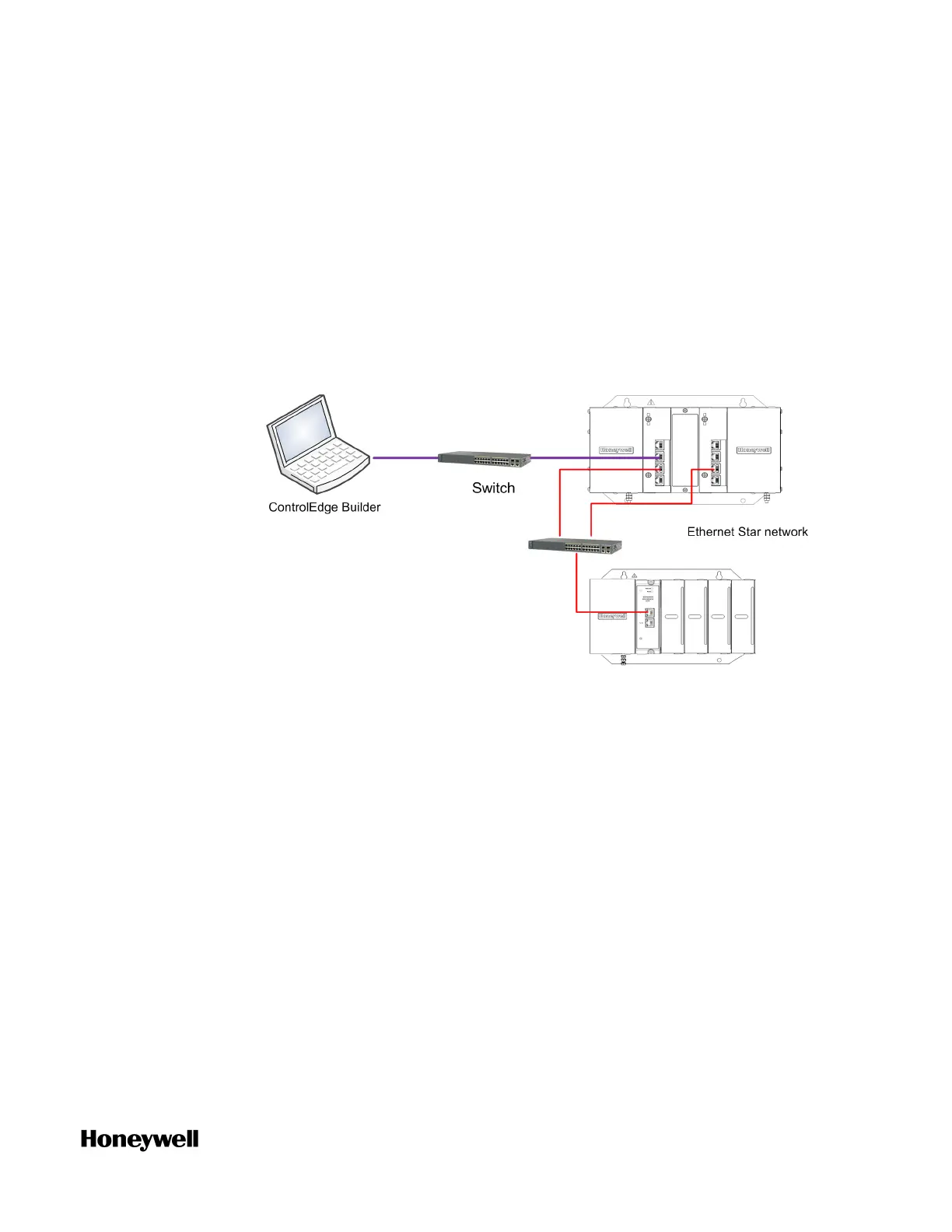

See the following figure for reference as a redundant controller
system.
Chapter 3 - Hardware
