monitor.
DATA1 is the variable name assigned by the user of OUTPUT pin of
MB_RD_MHR and it is an array.

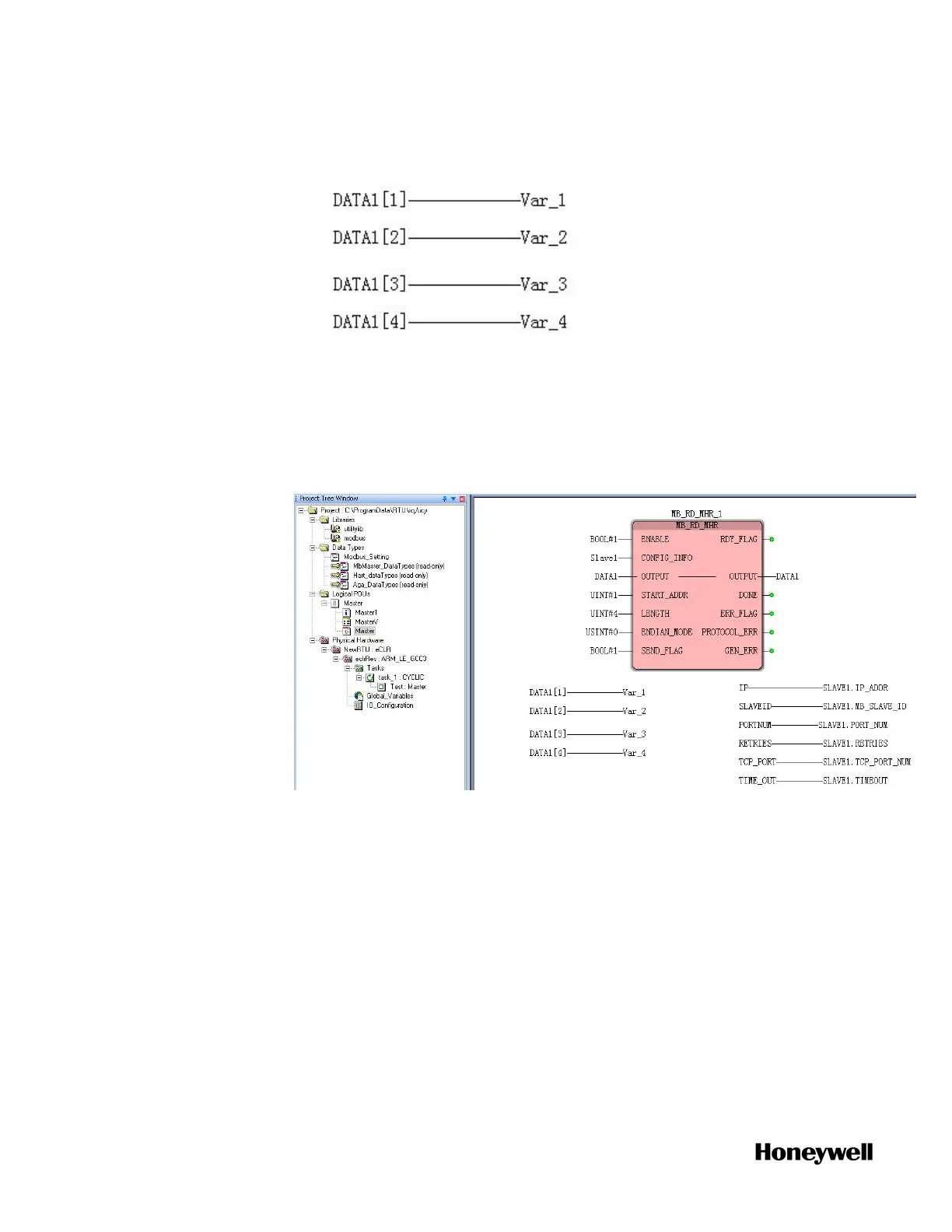

After the basic programming steps as described, the workplace will
appear as shown below.
18. Click Make from the toolbar to compile the programs.
19. Click Download from the toolbar to download the compiled
programs of Modbus TCP Master to the controller.
Configuring a Modbus Serial Master
Modbus Serial Master is used for communication between the
controller and third-party Modbus slave devices over serial port. It is
only applicable for ControlEdge RTU.
86
Chapter 6 - Communication
